Product description

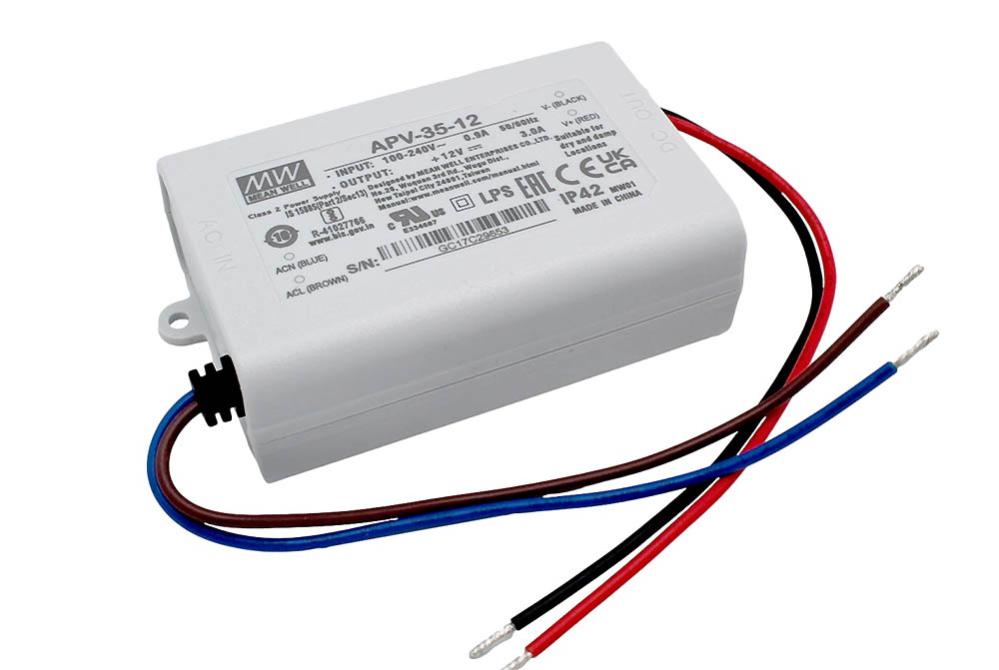

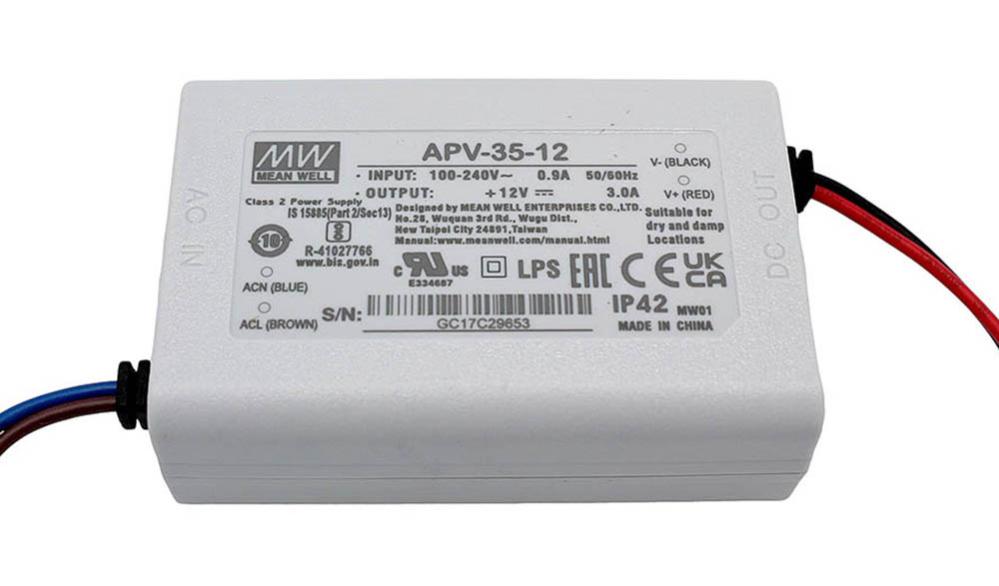

Switching power supply with a constant voltage (CV) output of 12 VDC and up to 3 A output current. The APV-35 series features universal input and a fully isolated plastic enclosure. The power supply is Class II without protective earth and has an IP42 rating. Protection is provided against short circuit, overload and overvoltage. Connection cables with open ends. The power supply is protected against short circuit, overvoltage and overload with automatic recovery. Suitable for all types of power supply applications, including electrical equipment and LED lighting. The power supply is completely silent thanks to passive cooling.
Specifications:
- Product type: Switched-mode power supply for built-in installation
- Manufacturer: Mean Well
- Model: APV-35-12
- Input voltage: 90–264 VAC
- Output voltage: 12 VDC
- Current (max): 3 A
- Rated power: 36 W
- Ripple and noise: max. 150 mV p-p
- Efficiency: 83%
- Protection: Short circuit, overload and overvoltage
- Operating temperature: -30 to +70 °C
- Cooling: Free air convection
- Dimensions: 84 x 57 x 29.5 mm
- Weight: 0.18 kg
- Protection class: Class II
- IP rating: IP42
- Safety classification: LPS
