Product description

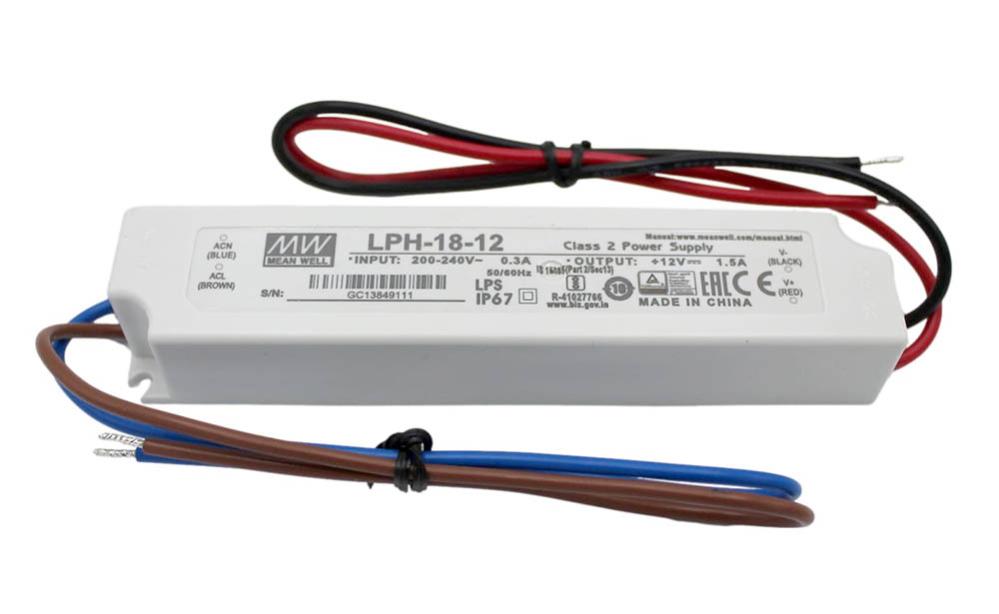

Power supply with a constant voltage (CV) output of 12 VDC and up to 1.5 A output current. The LPH-18 series features universal input voltage and a fully insulated plastic enclosure. The power supply is Class II without protective earth and has an IP67 rating. Intended for indoor use or outdoor use without direct exposure to sunlight. Connection cables with open ends. The power supply is protected against short circuit, overvoltage and overload with automatic recovery. Suitable for all types of power supply applications, including electrical equipment and LED lighting. The power supply is completely silent thanks to passive cooling.
Specifications:
- Product type: Switching power supply
- Manufacturer: Mean Well
- Model: LPH-18-12
- Input voltage: 180–264 VAC
- Output voltage: 12 VDC
- Current (max): 1.5 A
- Rated power: 18 W
- Ripple and noise: max. 120 mV p-p
- Efficiency: 77%
- Protection: Short circuit, overload and overvoltage
- Operating temperature: -30 to +70 °C
- Cooling: Natural air convection
- Dimensions: 140 x 30 x 22 mm
- Weight: 170 g
- Protection class: Class II
- IP rating: IP67
- Safety classification: LPS
Connections:
- AC/L: Brown wire
- AC/N: Blue wire
- +V: Red wire
- -V: Black wire
- Cable length: 300 mm
- Cable: UL1015, AWG18
