Product description

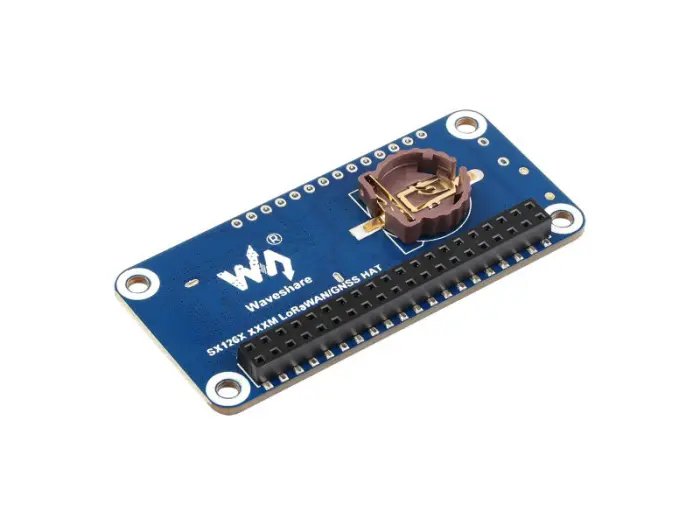

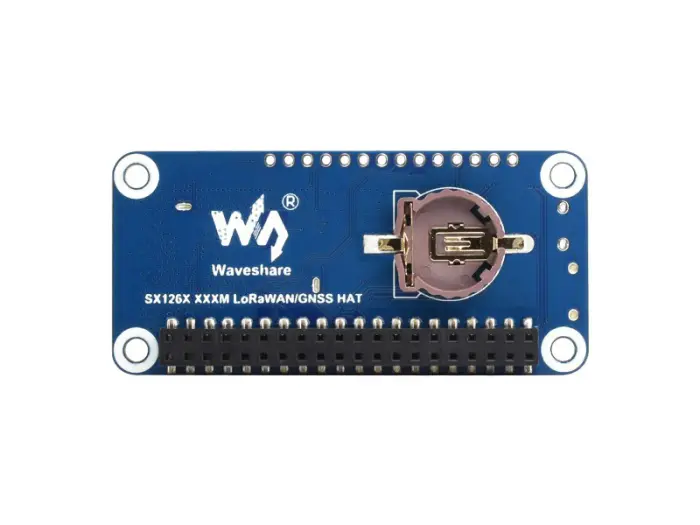

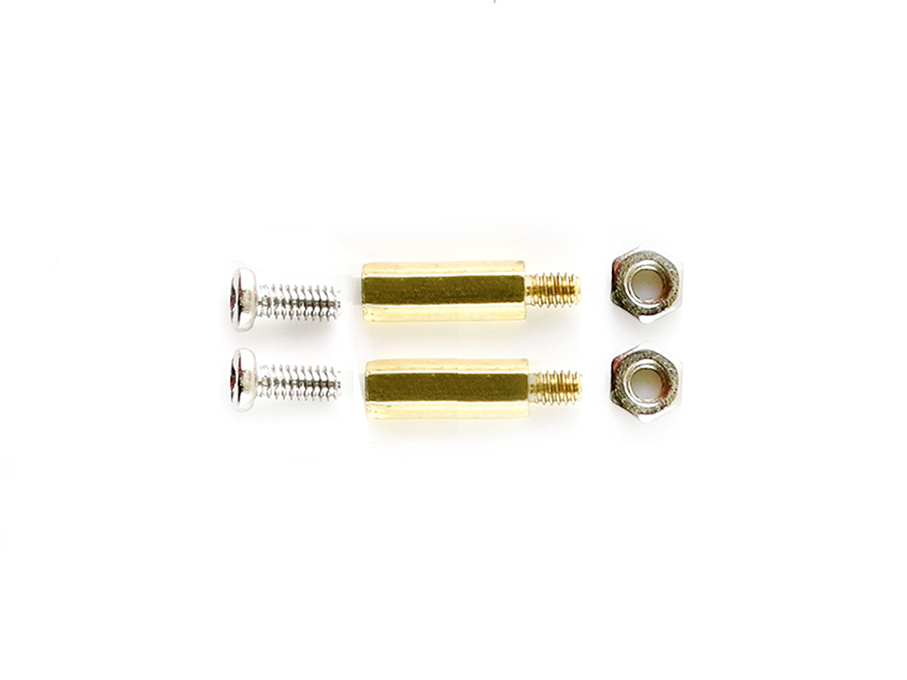

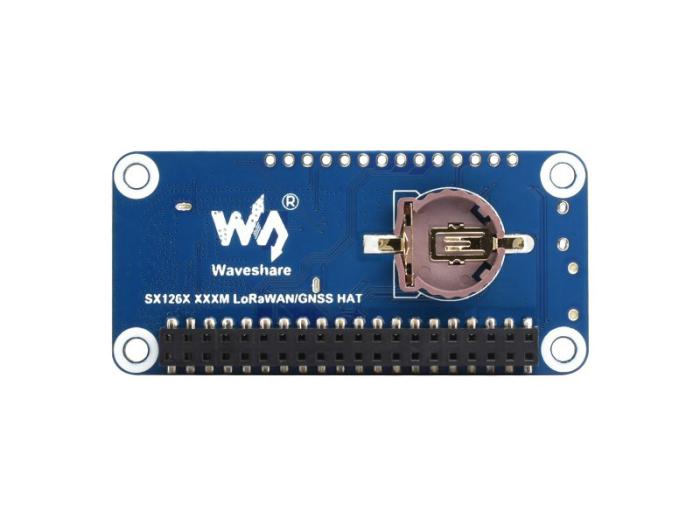

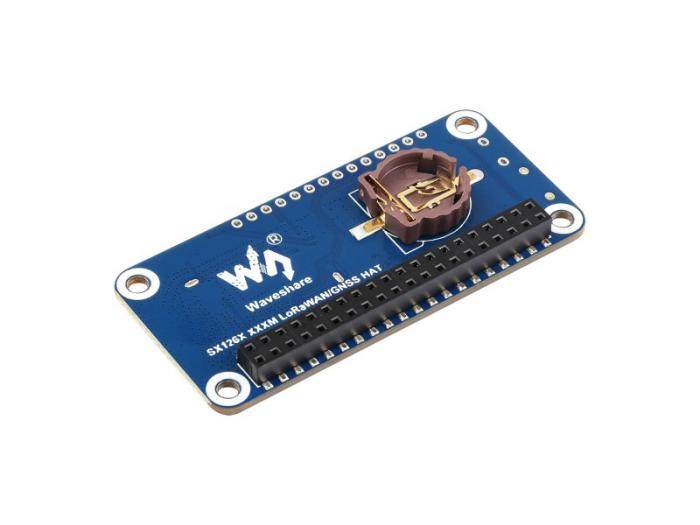

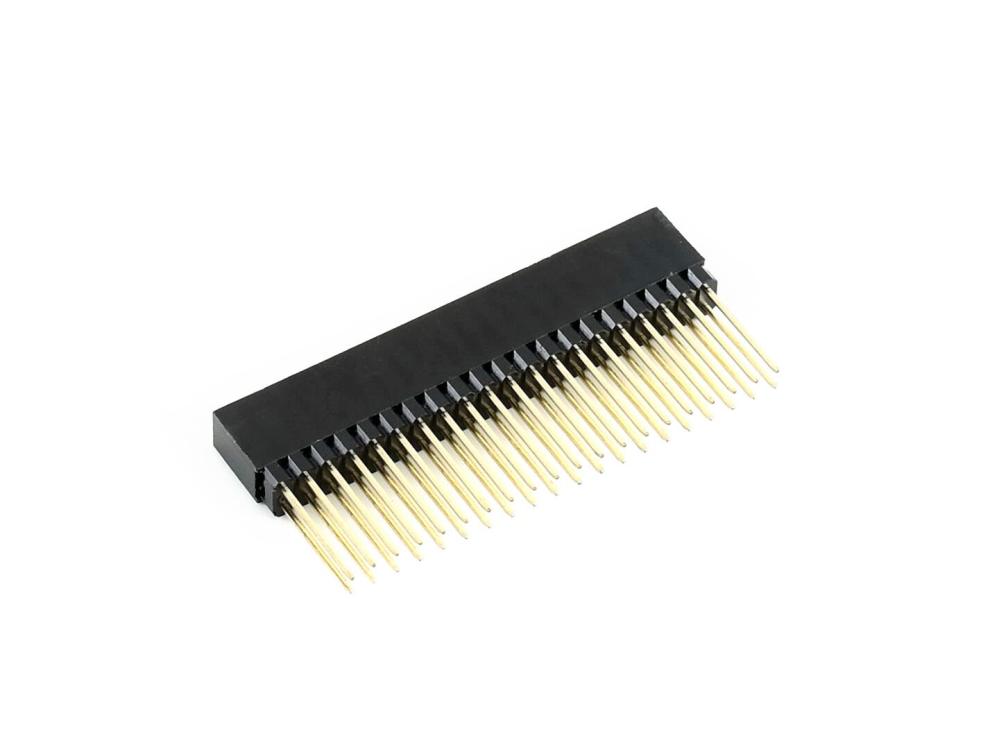

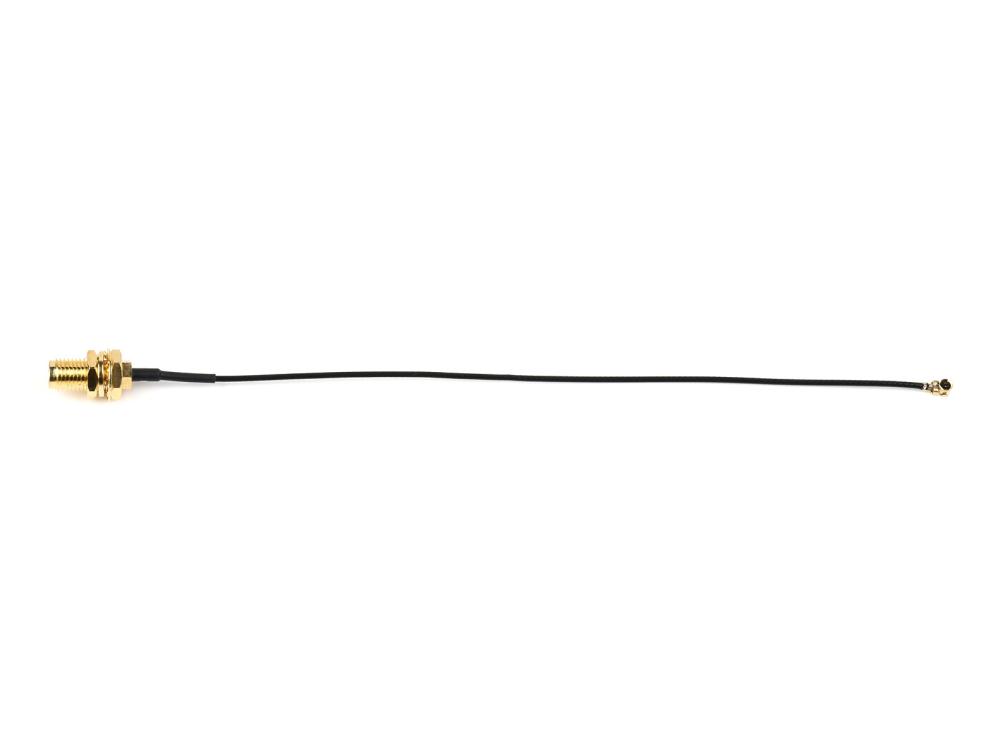

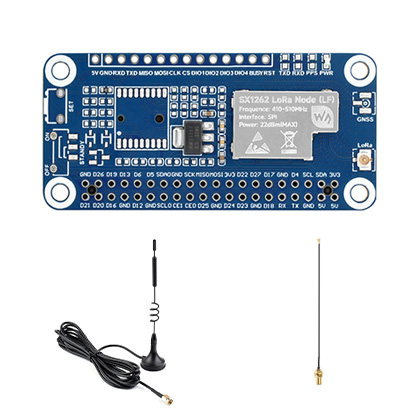

433 MHz LoRaWAN for Raspberry Pi. Based on the new generation SX1262 RF chip, providing longer range, improved interference immunity, and lower power consumption compared to previous generations. Battery holder for ML1220 rechargeable battery, used to retain information during power loss and enable fast startup. Supplied with a 433 MHz magnetic antenna, IPEX (uFL) to SMA adapter, mounting screws, and a 40-pin GPIO stacking header.
Specifications:
- RF chip: SX1262
- Frequency band: 433 MHz
- Modulation: LoRa and (G)FSK
- Data rate LoRa: 0.018 - 62.5 kbps, (G)FSK: 0.6- 300 kbps
- Output power (max): 22 dBm
- Supply voltage: 3.3 V
- Backup battery: ML1220 rechargeable (not included)

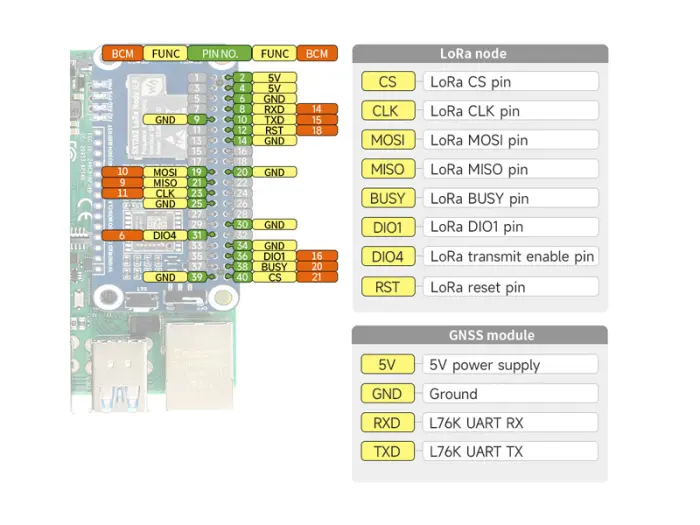

- Communication interface: SPI via Raspberry Pi 40-pin GPIO header

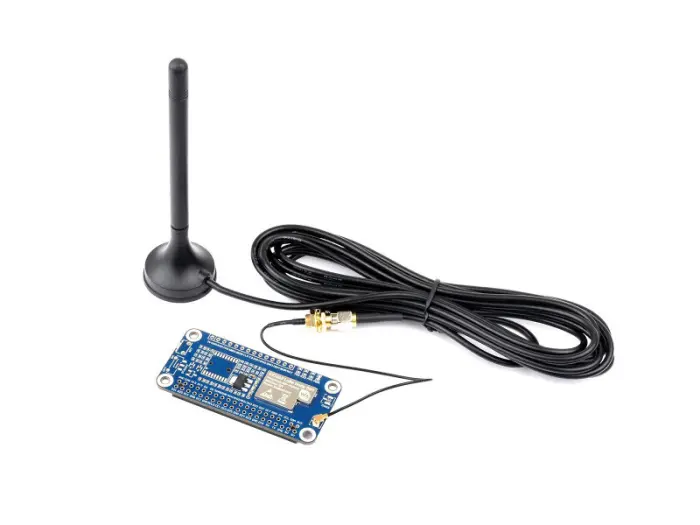

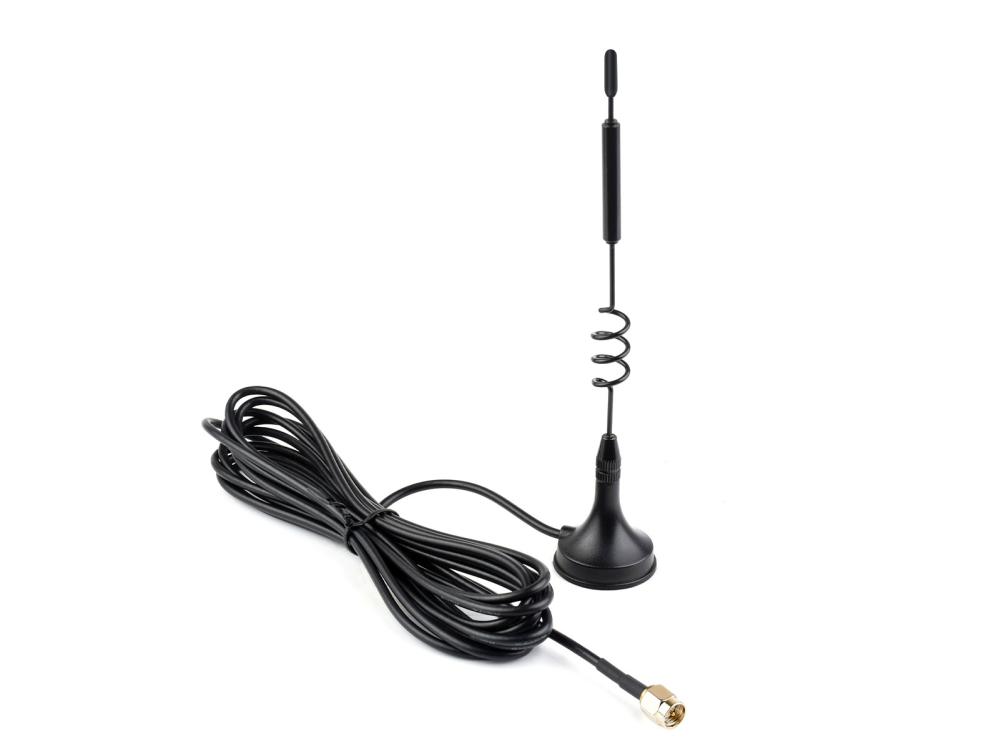

- Supplied antenna: 433 MHz magnetic antenna including antenna adapter
