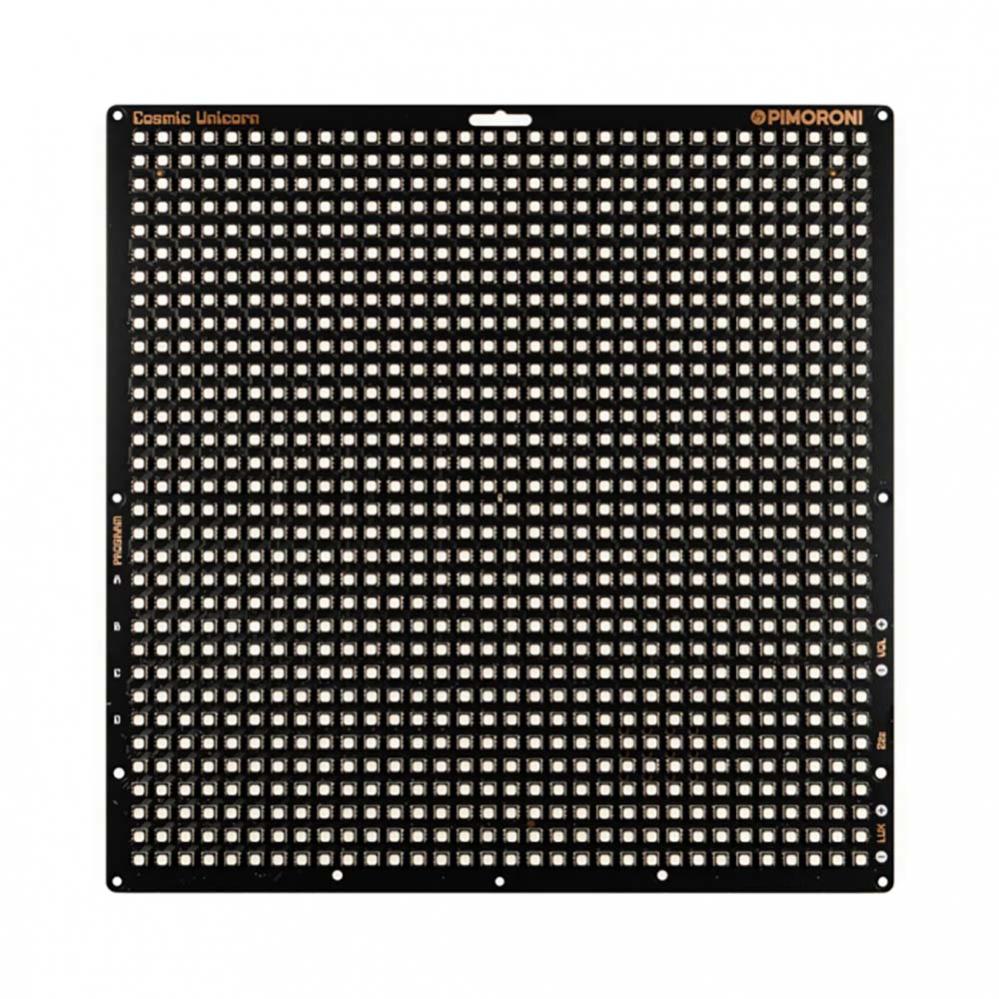

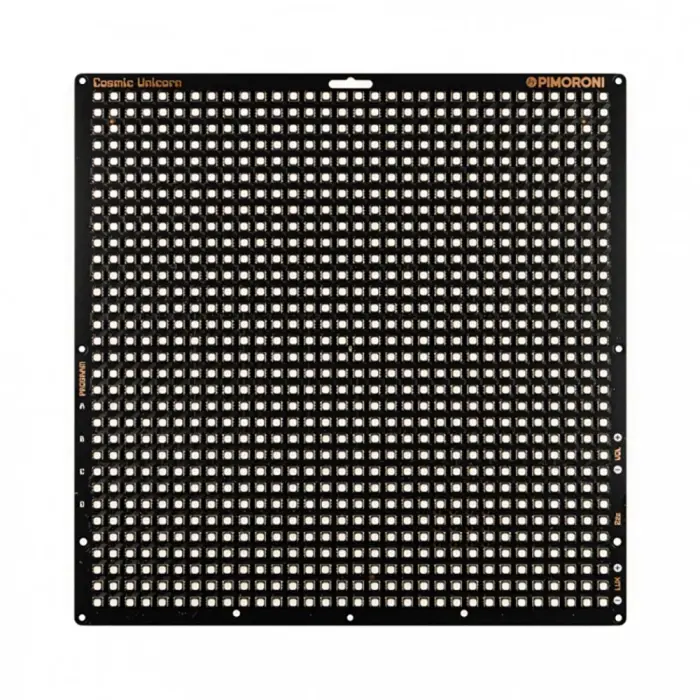

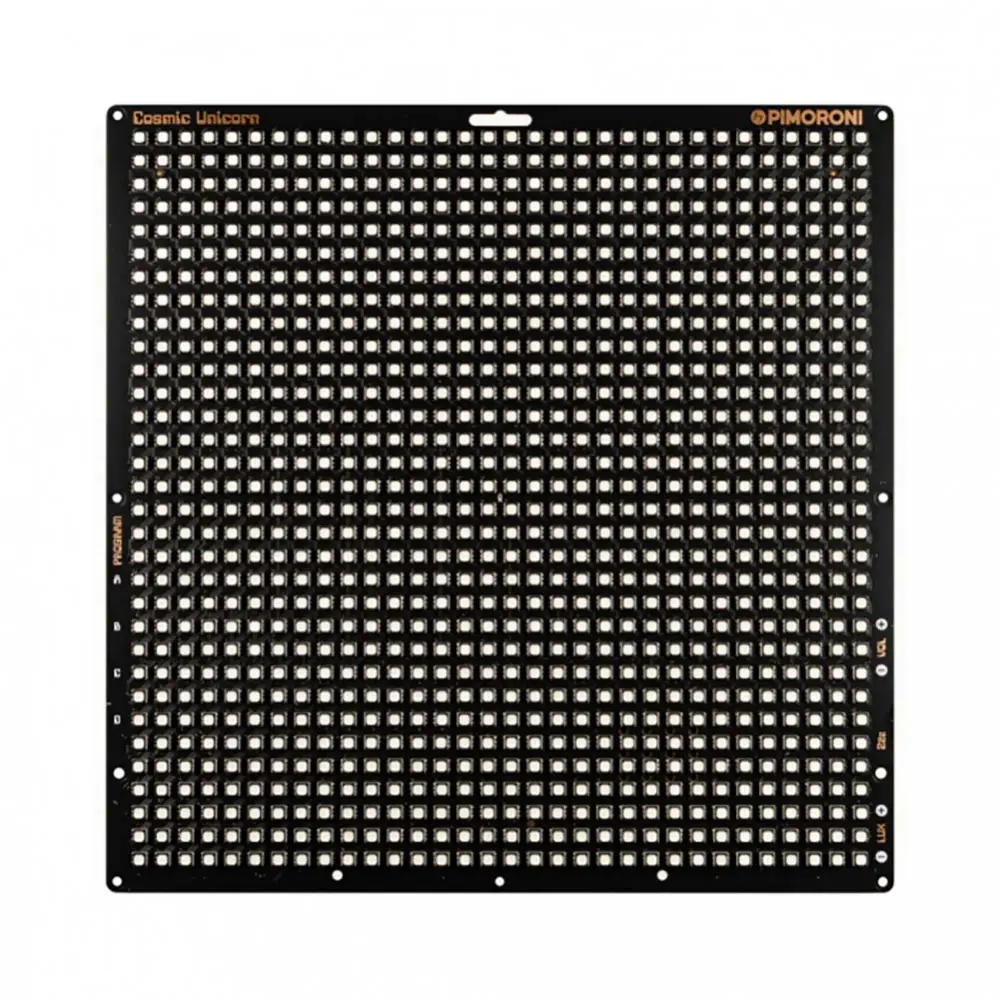

LED matrix 1024px (32x32) incl. Pico W

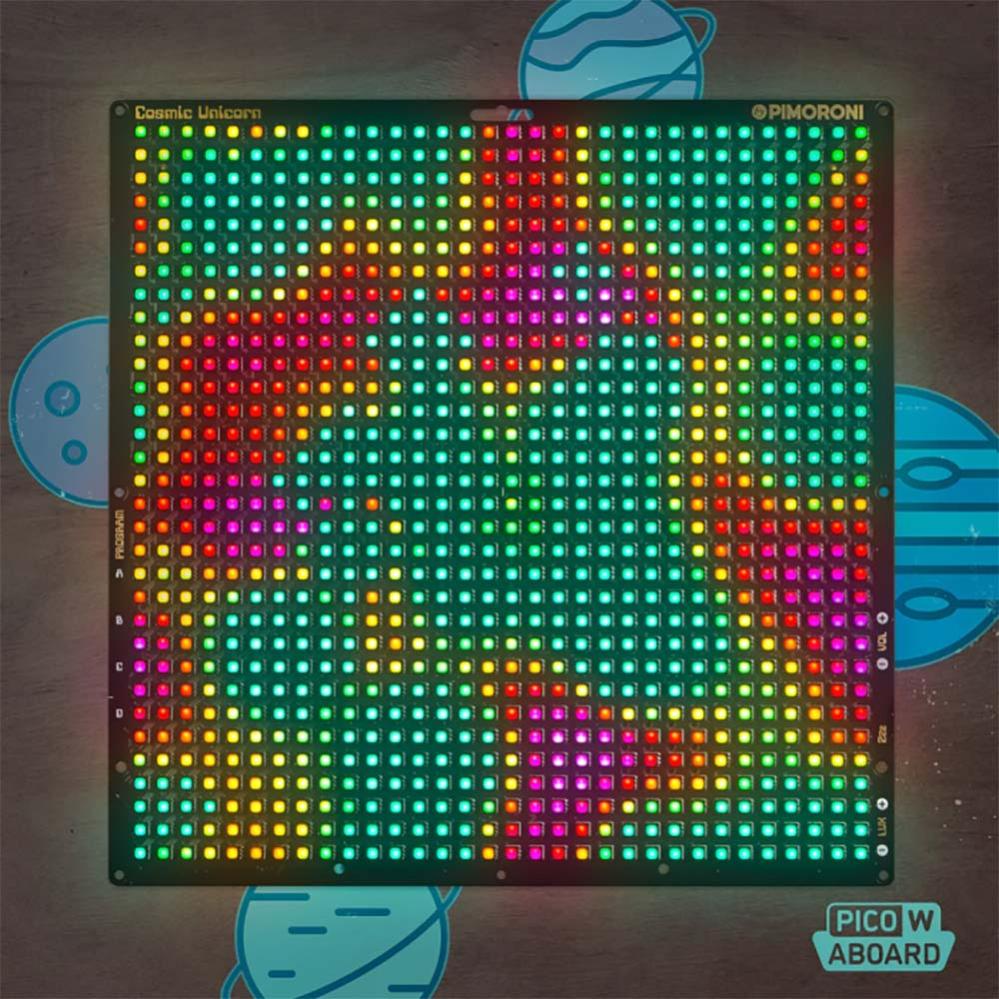

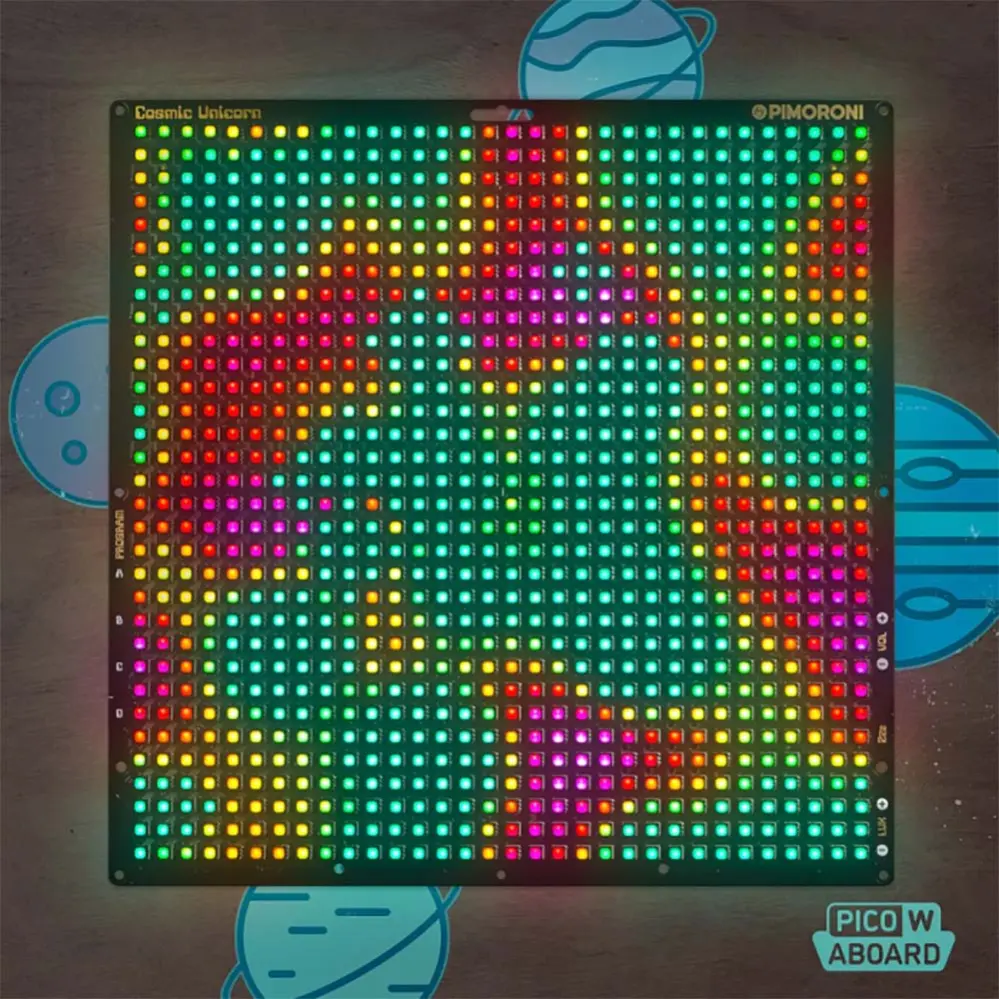

Large RGB LED matrix with speaker. The LEDs are controlled by a Raspberry Pi Pico W mounted on the back side which provides extremely fast refresh rates (up to 300Hz) and wireless connectivity via WIFI.

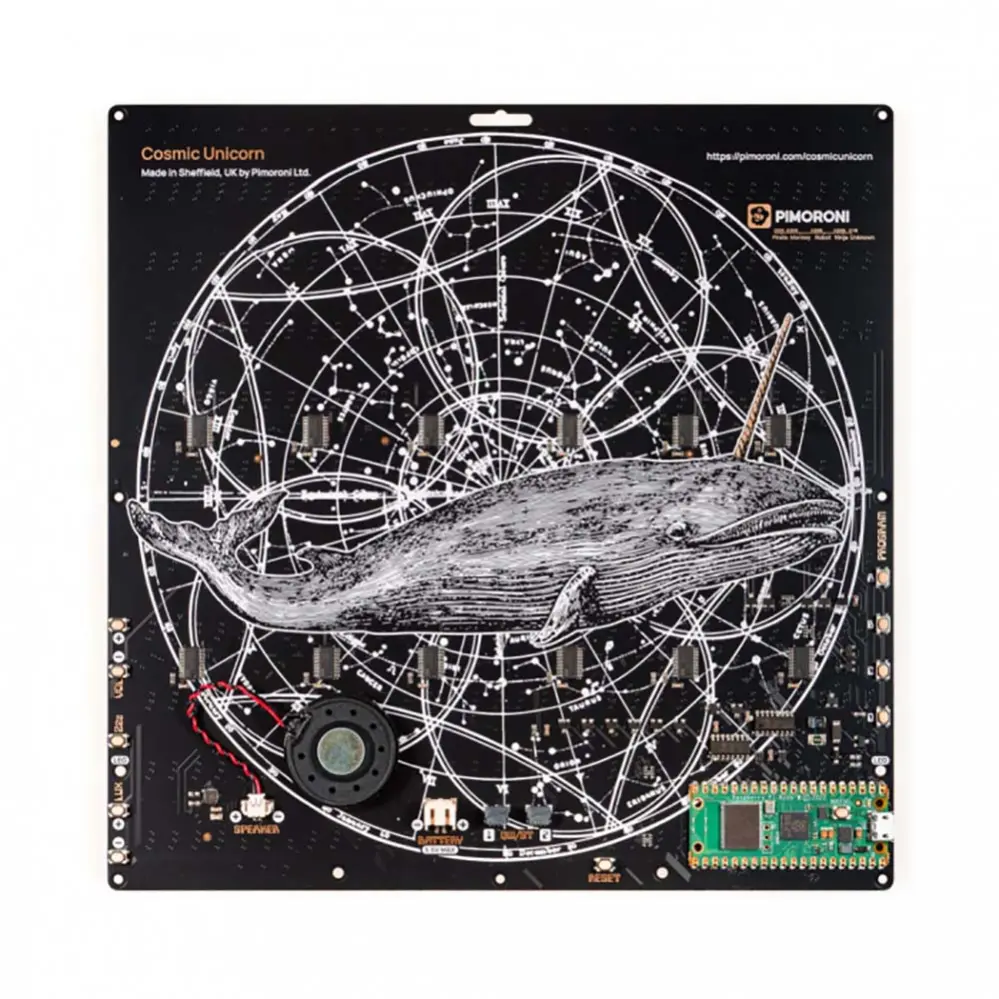

* Raspberry Pi Pico W Aboard
- Dual Arm Cortex M0+ running at up to 133Mhz with 264kB of SRAM
- 2MB of QSPI flash supporting XiP
- Powered and programmable by USB micro-B
- 2.4GHz wireless

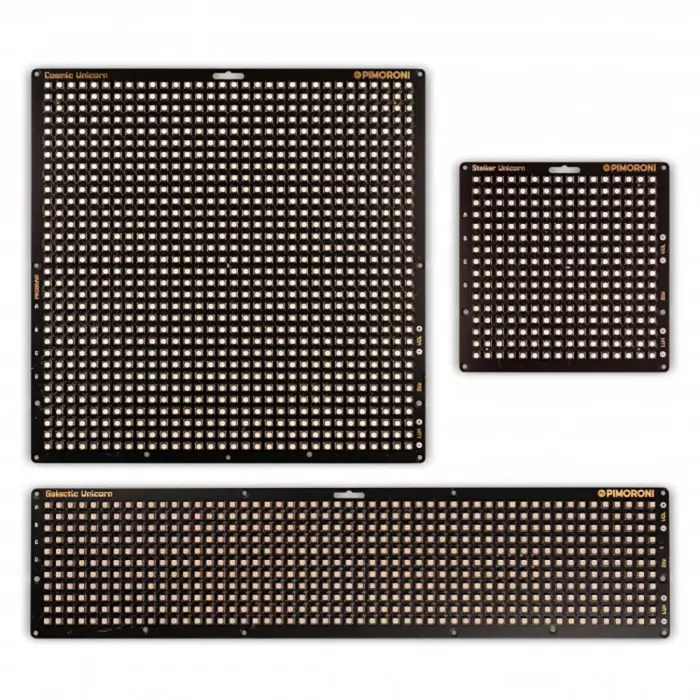

* 256/583/1024 RGB LEDs in a 16x16/53x11/32x32 grid
- 3.5mm LEDs with rounded square apertures
- 6mm LED spacing
- Driven by FM6047 constant current LED drivers
* MAX98357 3.2W I2S Mono Amplifier (with 30mm 1W speaker)
* Phototransistor for light sensing
* 9 tactile user buttons
* Reset button
* 2x Qw/ST (Qwiic/STEMMA QT) connectors
* JST-PH connector for attaching a battery (5.5V max)
* Fully assembled
* No soldering required.
* C/C++ and MicroPython libraries
