Product description

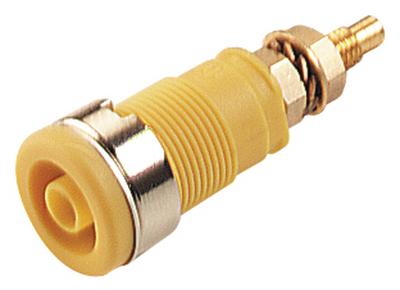

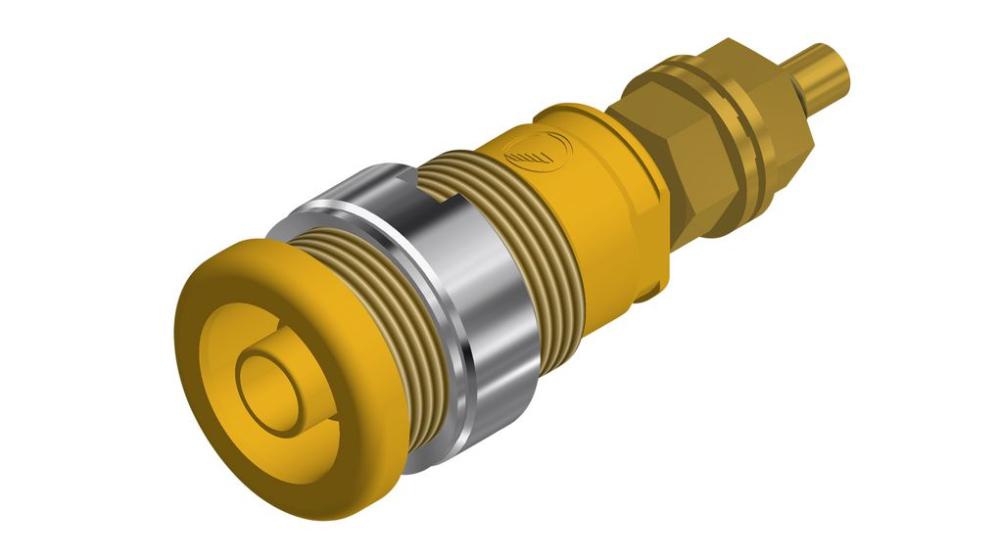

The SKS Hirschmann SEB 2600 G M4 is a touch-protected 4mm safety socket designed for panel mounting in panels with a thickness of 1-6mm. The socket features an M4 connection and is supplied with gold-plated brass nuts and washers.
Specifications:
- Color: Yellow
- Connection: M4 for ring cable lug
- Rated voltage (max): 1000V AC/DC
- Measurement category: CAT III according to IEC 61010
- Rated current: 32A
- Material, socket: Gold-plated brass
- Material, housing: PA
- Temperature range: -40°C to +80°C
- Flammability rating according to UL 94: V-2
- Total length: 39 mm
- Mounting hole: ø12 mm
- Panel thickness: 1-6 mm
- Supplied with locknut, M4 nuts, and washers.
