Product description

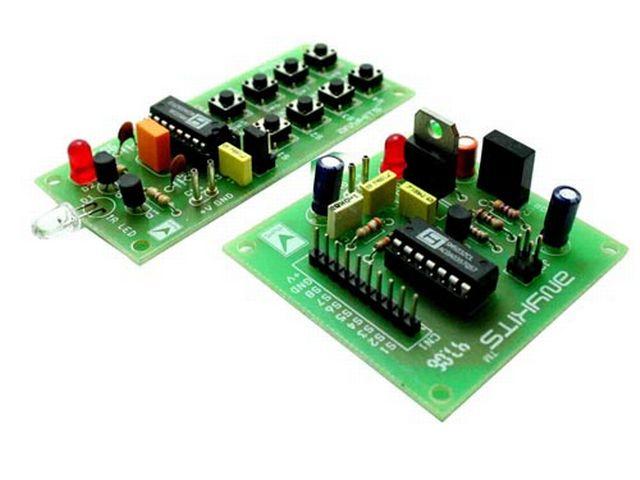

8 Channel Infrared (IR) Remote kit is a simple remote control kit which you can connect to various existing projects. You can also interface this kit to our 8 Channel Relay Board (12308037).
* Supply - Transmitter : 3 ~ 6 VDC, 5 V @ 150 mA & Receiver : 12 V @ 35 mA
* Output - 2 Latched, 6 Momentary TTL compatible outputs
* Crystal based oscillator for reliability of operation
* Crystal based design improves the oscillator's frequency stability
* Jumper selectable custom codes to operate more than one unit in the same area
* LED output to indicate transmission status
* High noise immunity
* Berg connector for easy connecting power supply and interfacing receiver board
* Four mounting holes of 3.2 mm each
* PCB dimensions - Transmitter : 37 mm x 80 mm & Receiver : 40 mm x 56 mm
