Product description

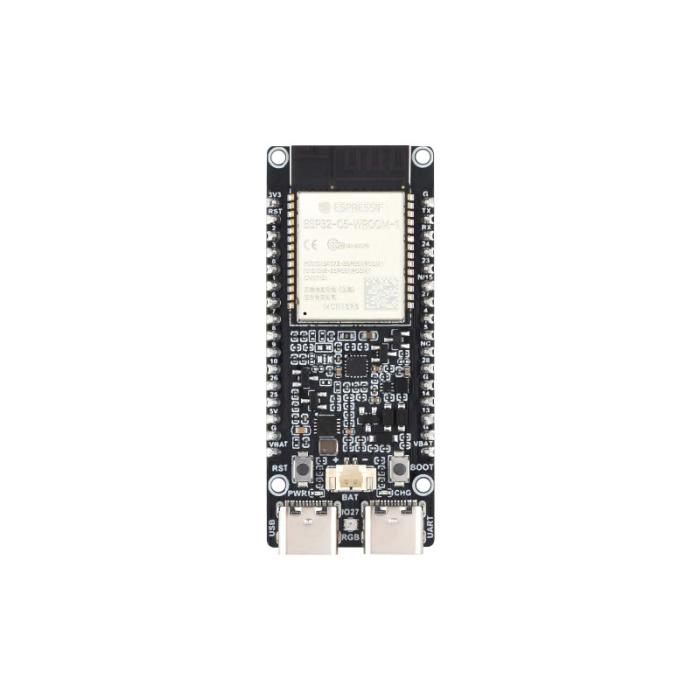

ESP32-C5-WIFI6 dev kit is ideal for the development of smart home devices, industrial automation, portable systems, and other IoT applications that require reliable wireless communication and low power consumption. The development board is based on the ESP32-C5-WROOM-1 module, a versatile unit with 16 MB of flash memory. The board supports communication standards such as Wi-Fi 6, Bluetooth 5 LE, Zigbee, and Thread. The I/O pins are routed to pin headers for easy connection. Developers can connect the board to a breadboard to easily interface sensors and peripherals using Dupont jumper wires. Equivalent pinout with Espressif’s ESP32-C5-DEVKITC-1, making the board directly compatible.
The ESP32-C5 chip is based on a 32-bit RISC-V processor that can run at up to 240 MHz. The board provides support for Wi-Fi 6 on both the 2.4 GHz and 5 GHz bands, Bluetooth 5 (LE), and IEEE 802.15.4-based protocols such as Zigbee and Thread.
SDK resources and development documentation are available for ESP-IDF and Arduino IDE. The board is supplied with 16 MB Flash and 8 MB PSRAM and features pre-mounted pin headers.

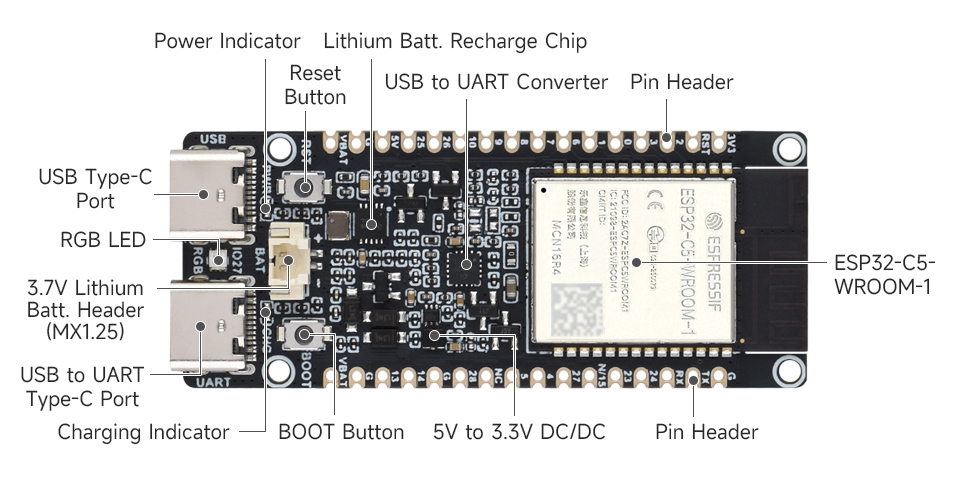

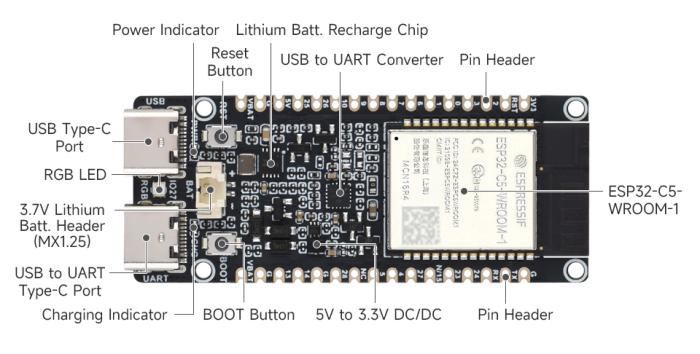

The board includes an integrated charging circuit for LiPo/Li-Ion (operation / charging).
Specifications:
- Processor: 32-bit RISC-V, single-core, up to 240 MHz
- Wireless communication: Wi-Fi 6 (802.11ax) 2.4 GHz and 5 GHz
- Bluetooth: Bluetooth 5 LE
- IEEE 802.15.4: support for Zigbee and Thread
- Flash memory: 16 MB
- PSRAM: 8 MB
- Internal SRAM: 384 KB
- ROM: 320 KB
- 2x USB-C connectors: for programming and power supply as well as UART
- Supply voltage: 5 V via USB or 3.7 V Li-ion battery
- Battery support: integrated charging circuit for 3.7 V Li-ion/LiPo
- Li-Ion/LiPo connector: MX1.25

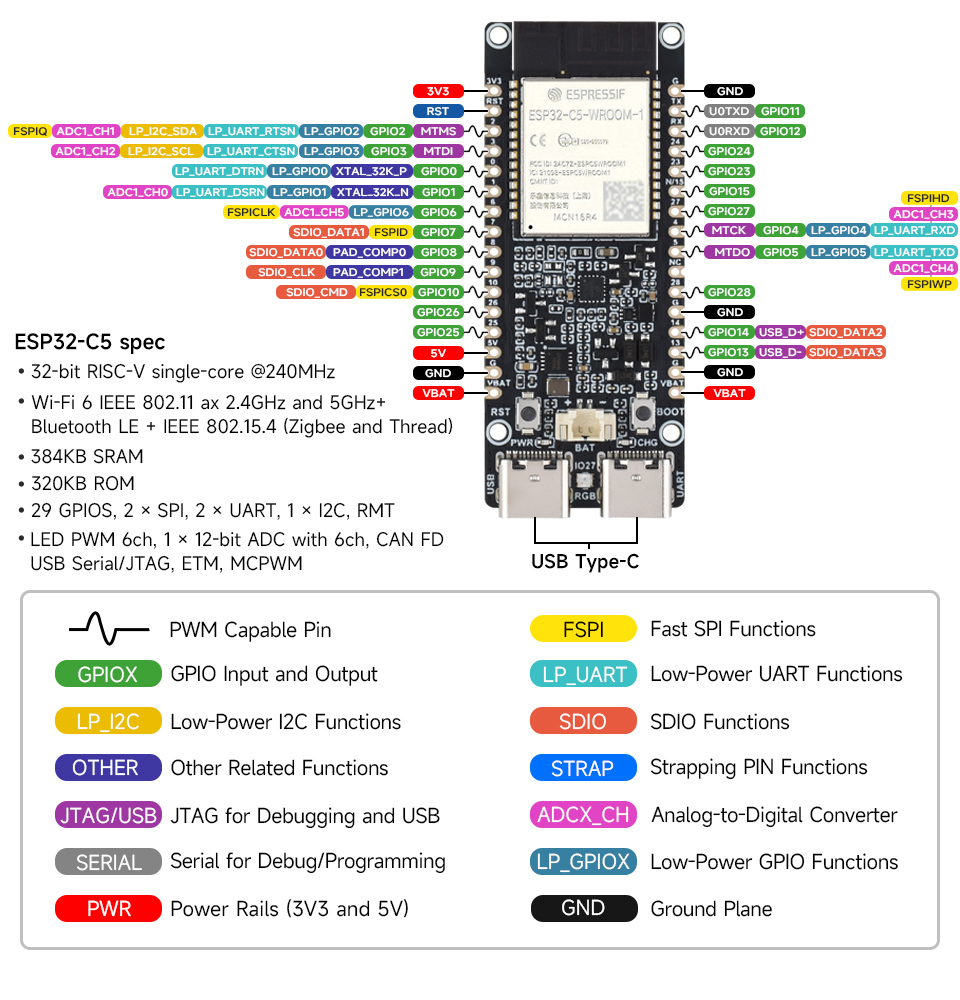

- I/O: GPIO (29 pcs), UART, SPI, I2C, I2S, PWM, ADC

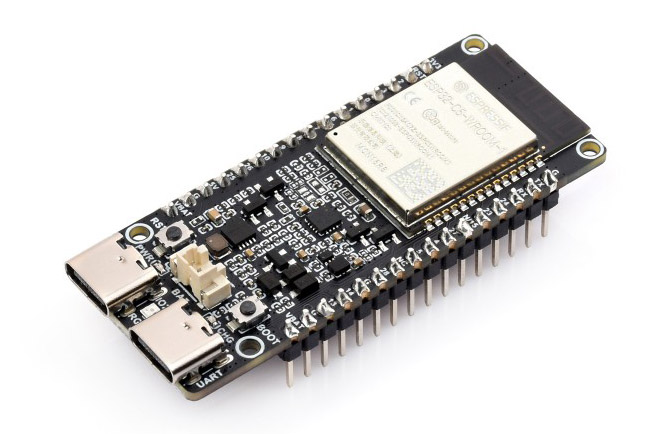

- Form factor: development board with pin headers, breadboard friendly
- Development environments: ESP-IDF, Arduino IDE

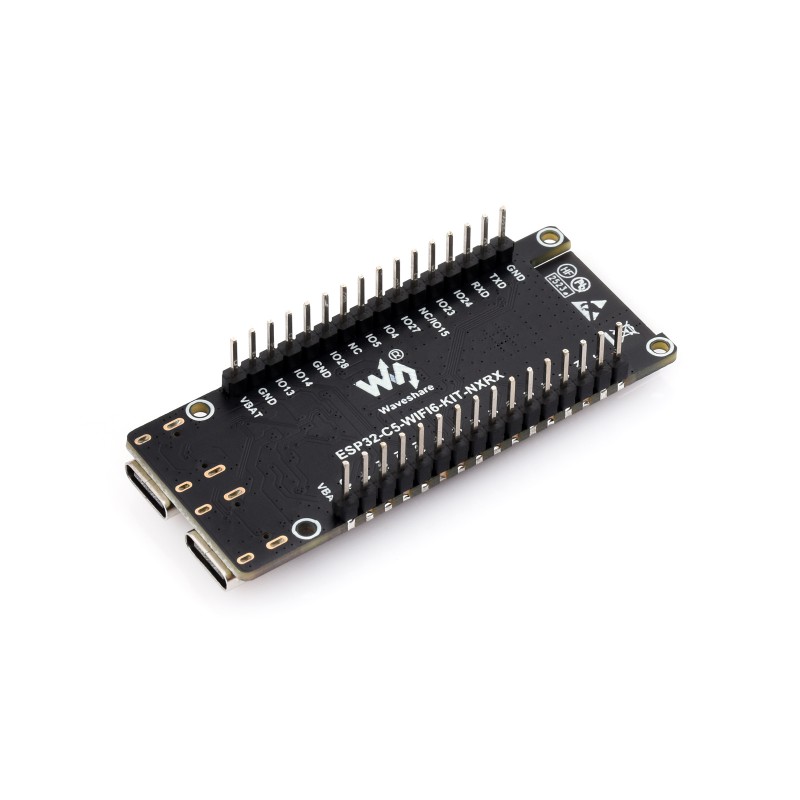

- Manufacturer: Waveshare
- Model: ESP32-C5-WIFI6-KIT-N16R8-M, equivalent to Espressif ESP32-C5-DEVKITC-1
