Product description

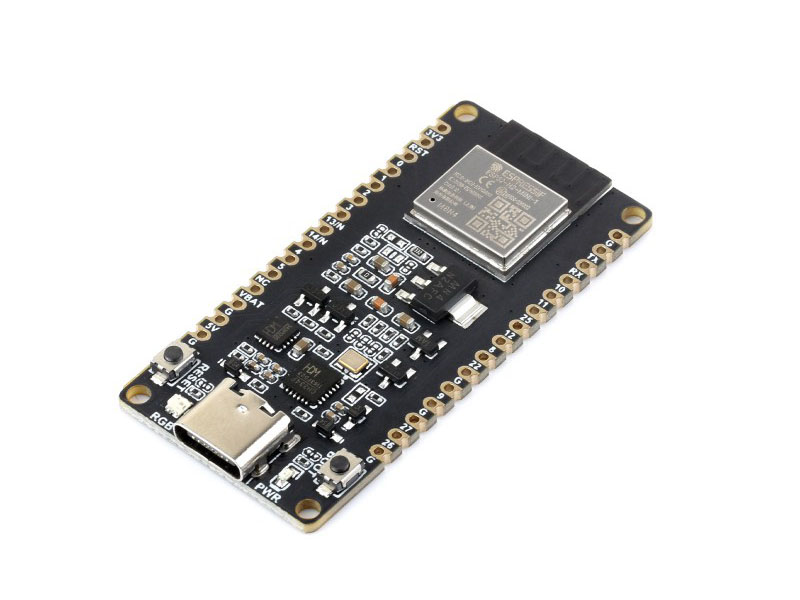

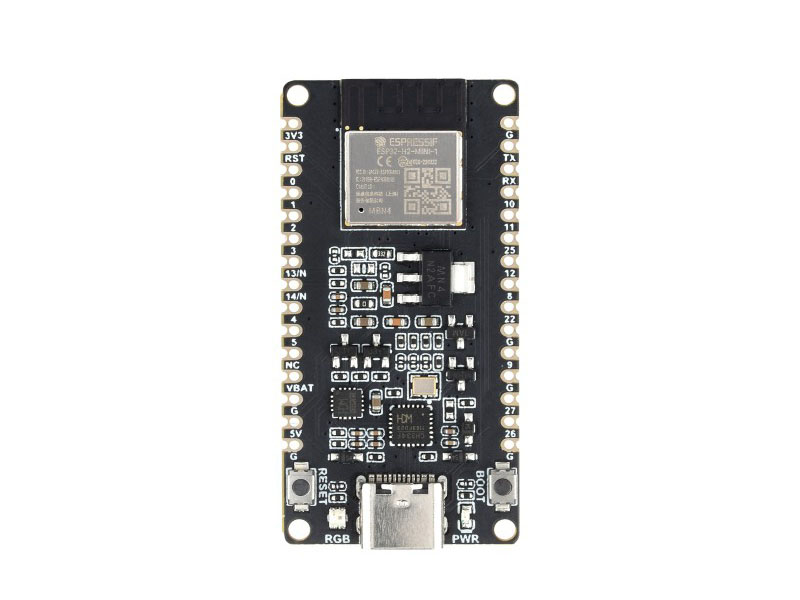

ESP32-H2-DEV-KIT-N4 is a development board based on the Espressif ESP32-H2 with a RISC-V core. Intended for wireless IoT applications with support for Bluetooth Low Energy and IEEE 802.15.4 enabling Zigbee, Thread, and Matter. The board is built around the ESP32-H2-MINI-1-N4 module with up to 96 MHz clock frequency, integrated Flash memory, and a wide range of peripheral interfaces for flexible system integration.

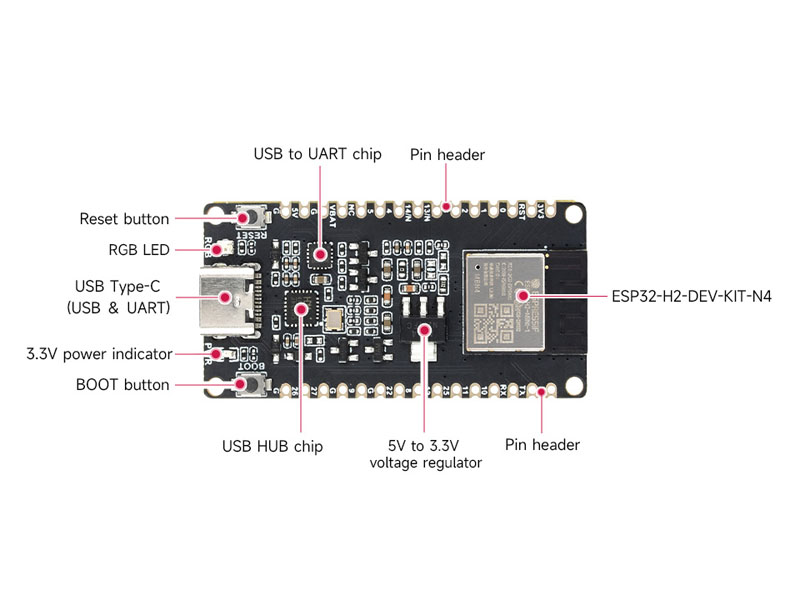

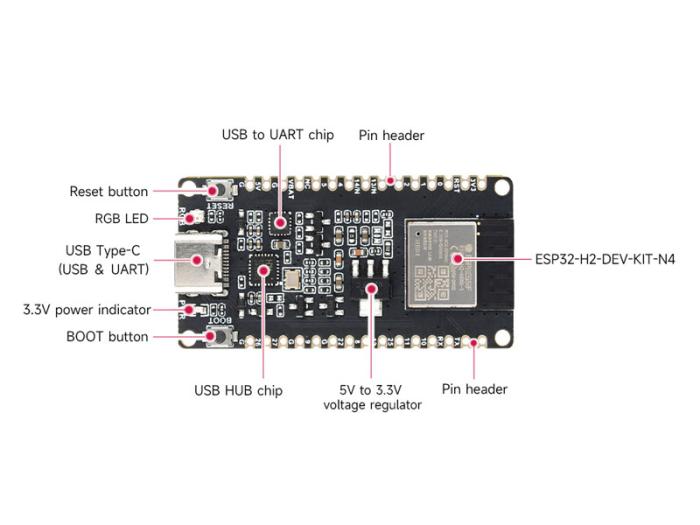

The USB-C connector together with the onboard USB hub and USB-to-UART makes it easy to program and debug via a computer. The board is compatible with Espressif ESP32-H2-DevKitM-1.
The platform is suitable for applications such as smart home solutions, industrial monitoring, and other low-power IoT systems where mesh networking and energy-efficient wireless communication are desired.
Specifications:
- Processor: ESP32-H2 RISC-V 32-bit single core up to 96 MHz
- Flash memory: 4 MB
- RAM: 320 KB SRAM + 4 KB LP memory
- ROM: 128 KB
- Wireless: Bluetooth LE 5, IEEE 802.15.4 (Zigbee 3.0, Thread, Matter)
- Interfaces: SPI, UART, I2C, I2S, PWM, ADC
- USB-C: USB with CH343 USB-to-UART
- GPIO: up to approx. 19 programmable pins

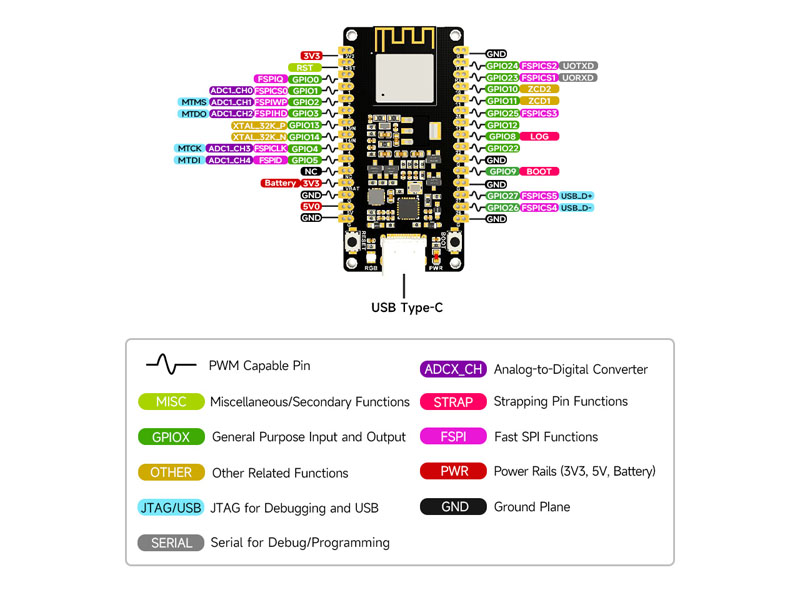

- Compatibility: Pinout compatible with ESP32-H2-DevKitM-1
- Development environment: ESP-IDF, Arduino IDE
