Product description

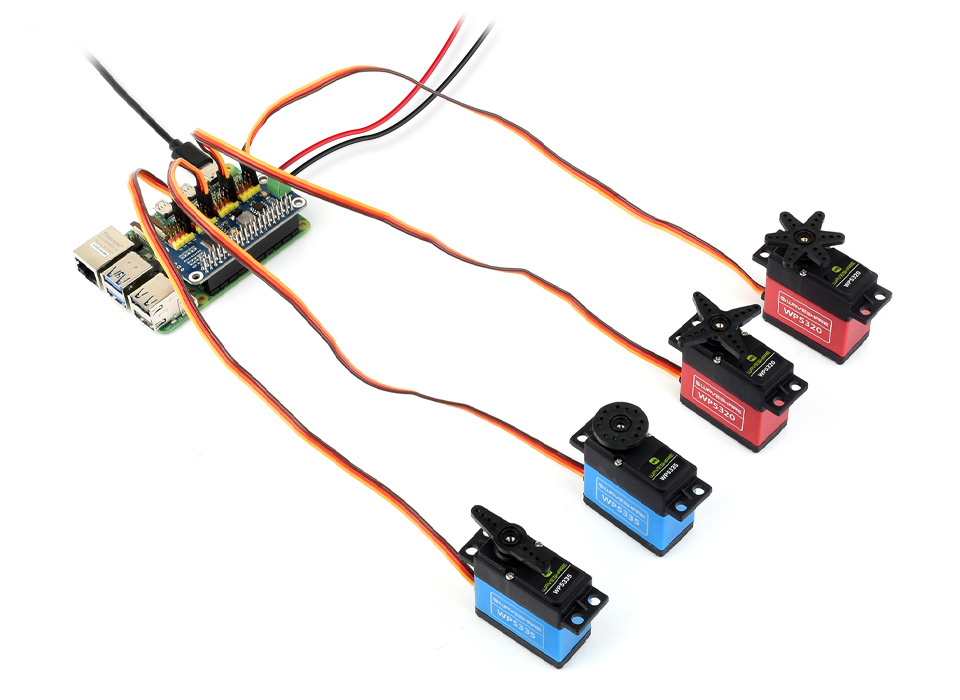

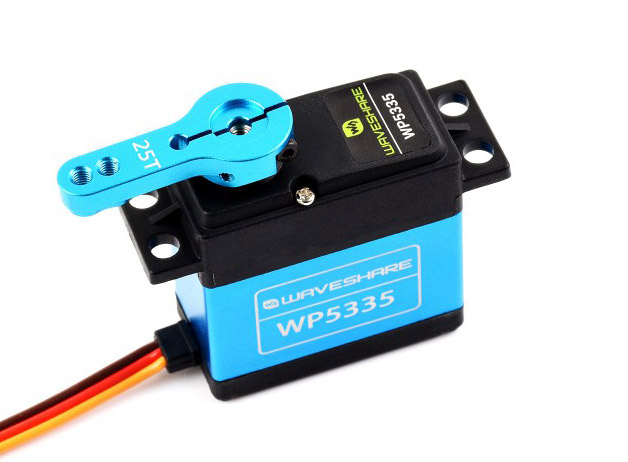

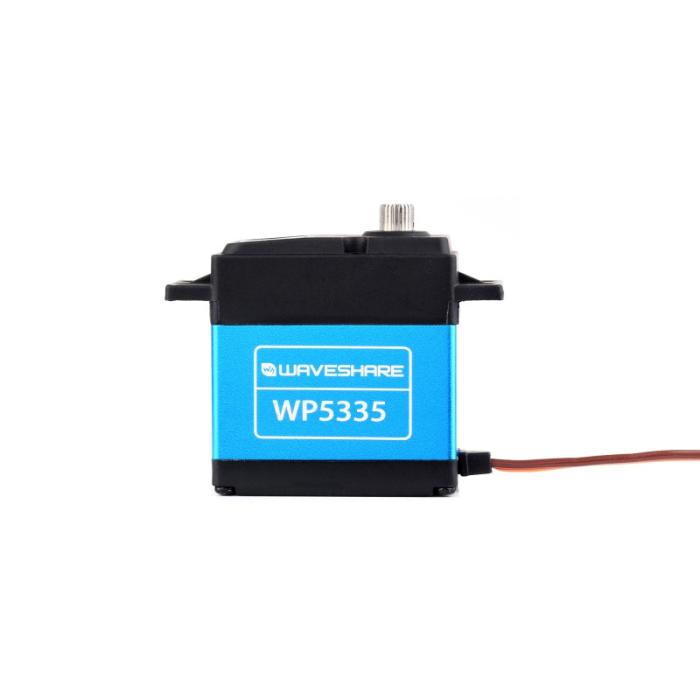

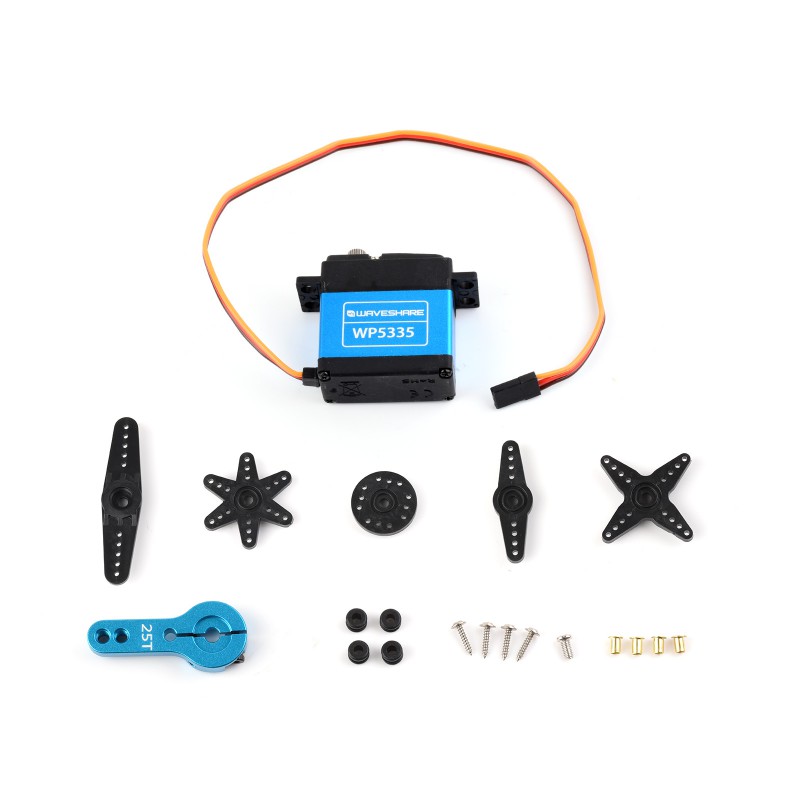

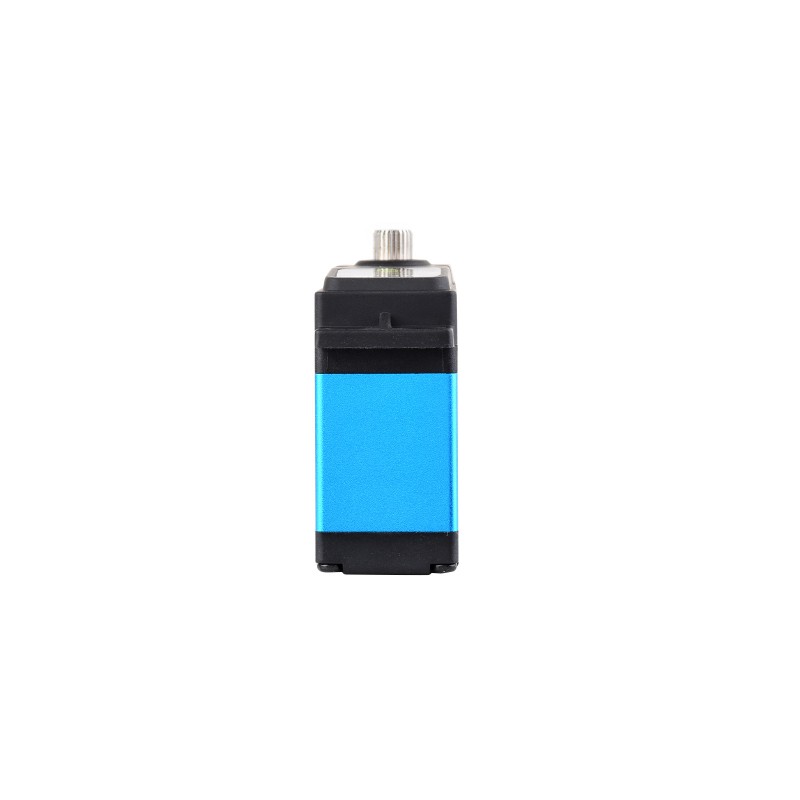

High-torque digital servo with metal gearbox. Can be controlled from e.g. Arduino, Raspberry Pi, ESP32, RC receiver, etc. Fixed end positions. Supplied with various servo horns (servo arms) and screws. Connection connector with 2.54 mm pitch (breadboard friendly).
Specifications:
- Supply voltage: 4 to 8.4 VDC

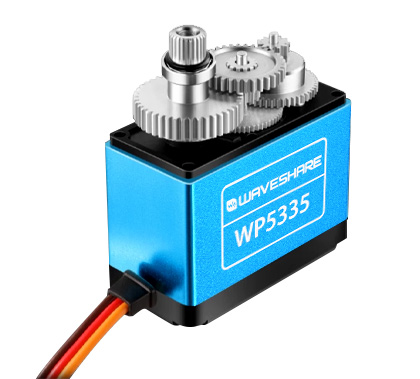

- Gearbox, gear material: Metal
- Output shaft type: 3F / 25T (25 teeth)
- Servo type: Digital
- Rotation range: 180°
- Operating speed: 0.19 s/60° @ 7.4 V
- Torque (max): 35 kg·cm @ 7.4 V
- Torque (normal load): 11.8 kg·cm @ 7.4 V
- Current @ 7.2 V (no load): 6 mA
- Current @ 7.2 V (max load): 3.9 A
- Current @ 7.2 V (normal load): 1.2 A
- Pulse width range (PWM): 500 - 2500 µs
- Neutral position (PWM): 1500 µs
- Dead band width (dead zone): 4 µs
- Form factor / size: Large servo
- Connection: 3 pins (power, ground, signal)
- Connector type: JR / Futaba / GWS
- Cable length: 180 mm

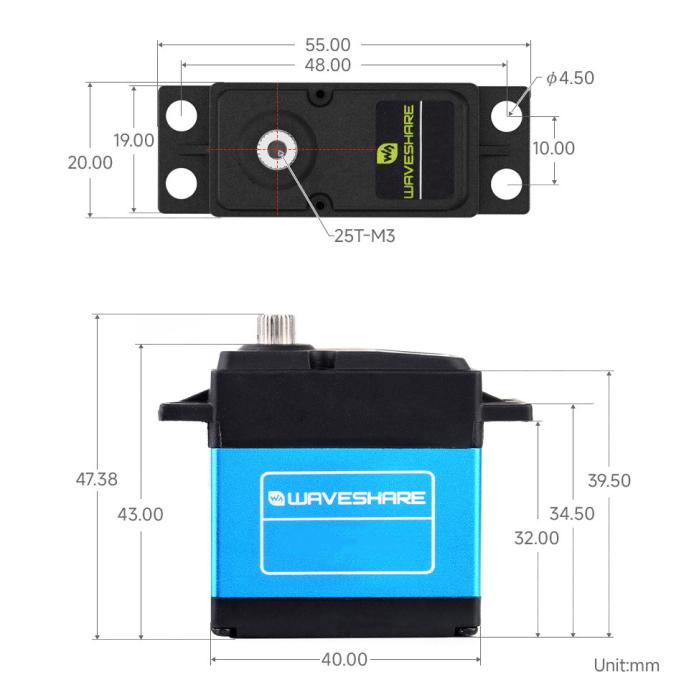

- Dimensions: 55 x 20 x 43 mm
- Weight: 67 g

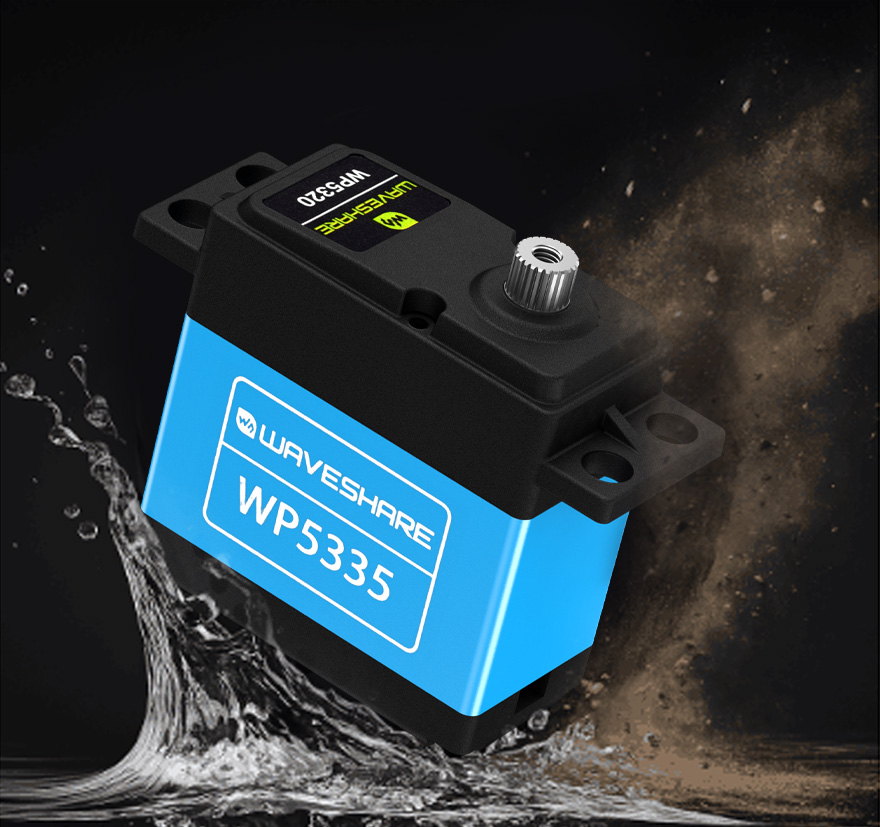

- Protection: IP54

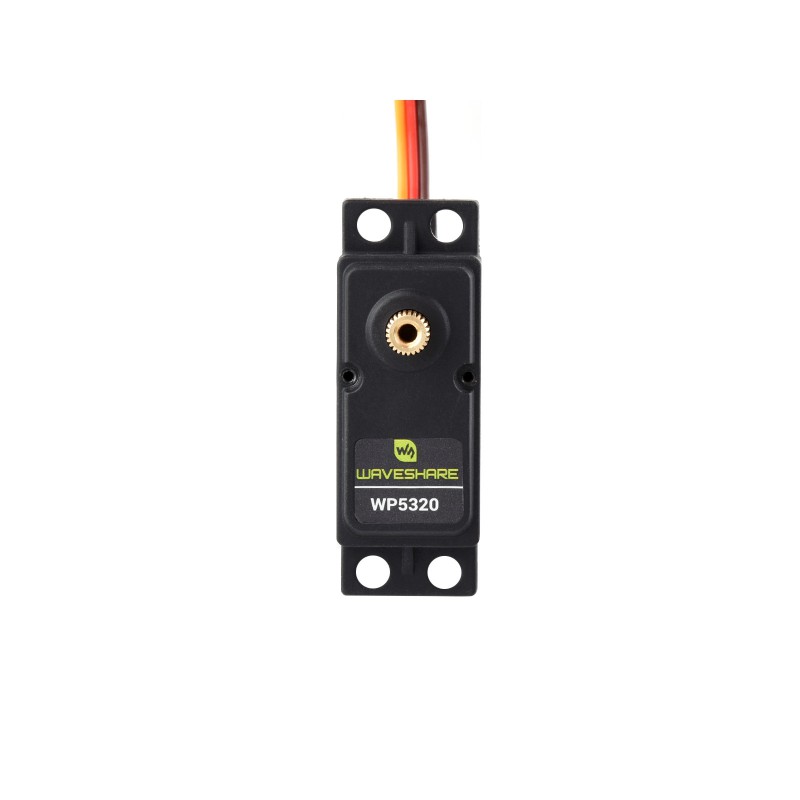

- Model: WP5320
