Product description

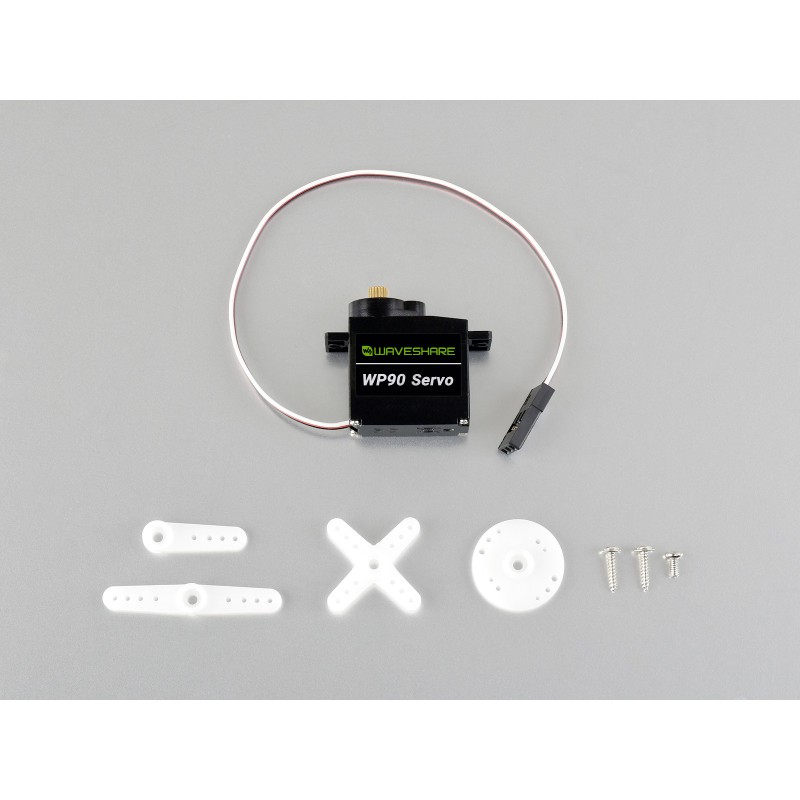

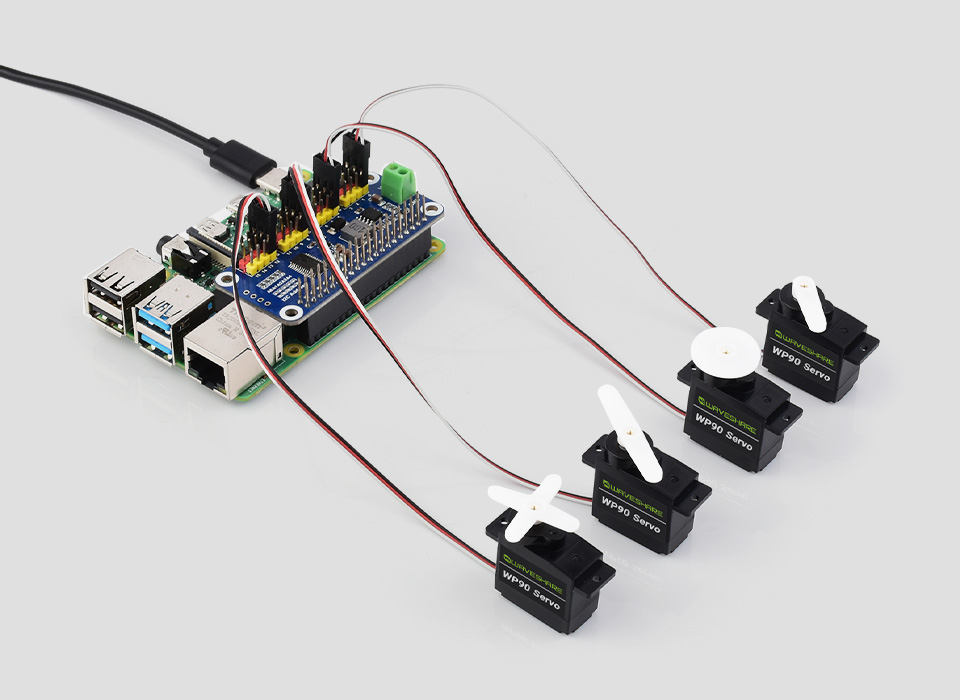

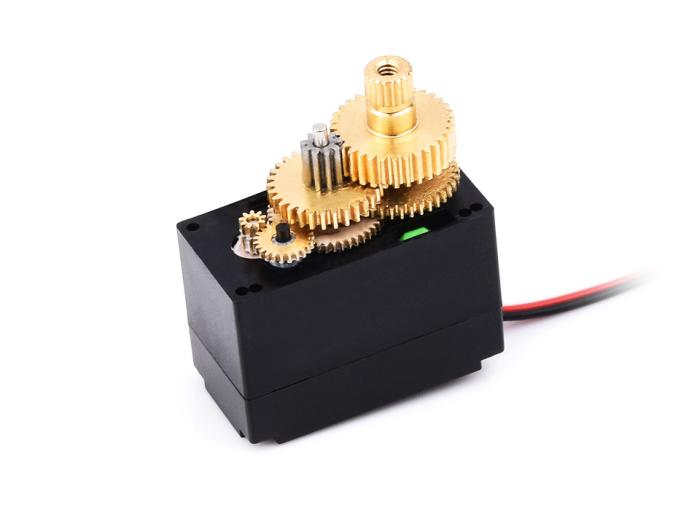

Digital micro servo with metal gearbox. Can be controlled from e.g. Arduino, Raspberry Pi, ESP32, RC receiver, etc. Fixed end positions. Supplied with servo horns (servo arms). Connection connector with 2.54 mm pitch (breadboard friendly).
Specifications:
- Supply voltage: 4.8 to 6 VDC
- Gearbox, gear material: Metal
- Servo type: Digital
- Operating range: 180°
- Speed: 0.1 s/60° @ 6 V
- Torque: 2.3 kg·cm @ 6 V
- Current @ 6 V (no load): 150 mA
- Current @ 6 V (max load): 1 A
- Pulse width (PWM): 500 – 2500 µs
- Form factor / size: Micro servo
- Connection: 3 pins (power, ground, signal)
- Connector type: JR / Futaba / GWS
- Cable length: 180 mm

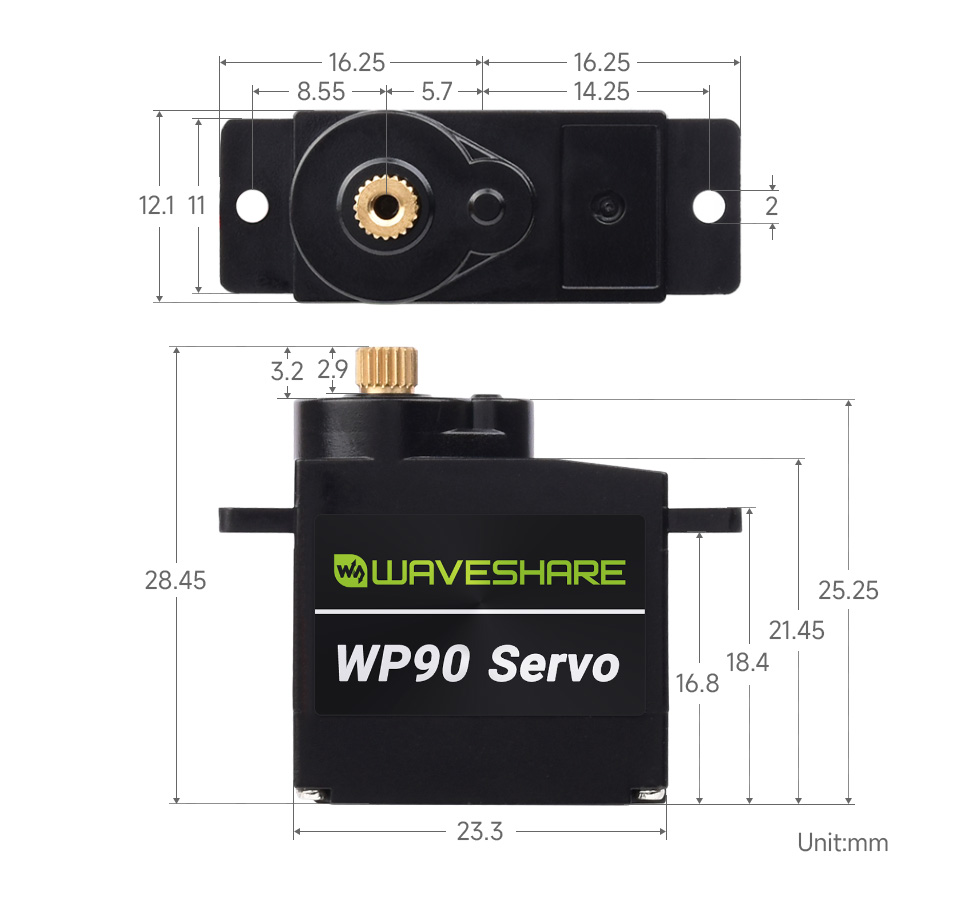

- Dimensions: 23.3 x 12.1 x 25.5 mm
- Weight: 13 g
- Model: WP90
