Product description

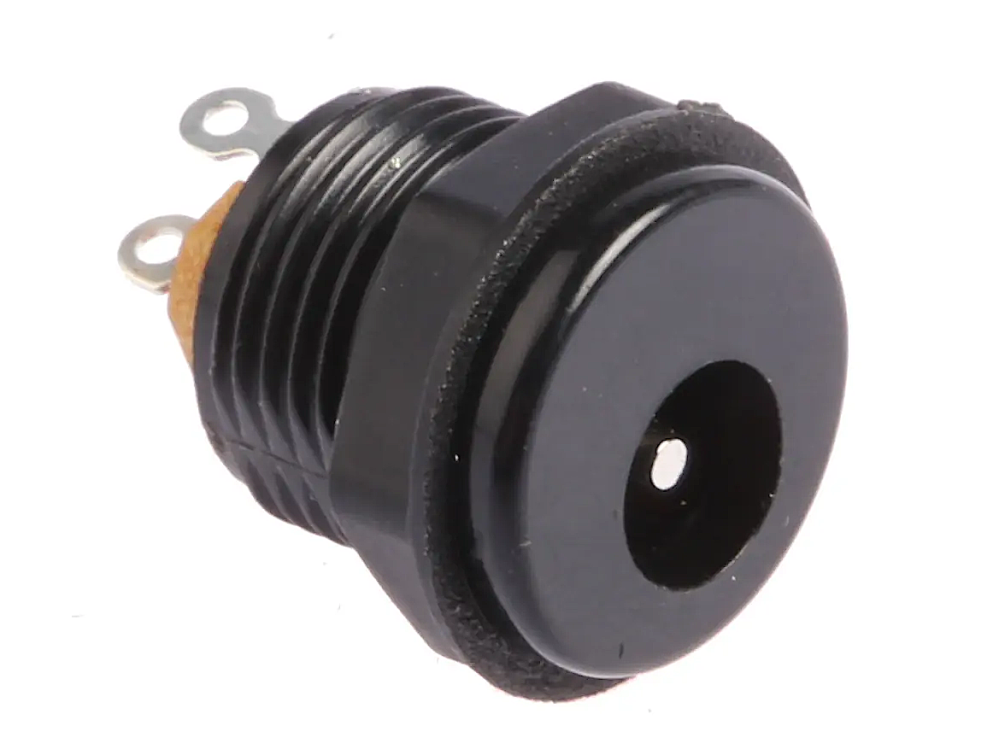

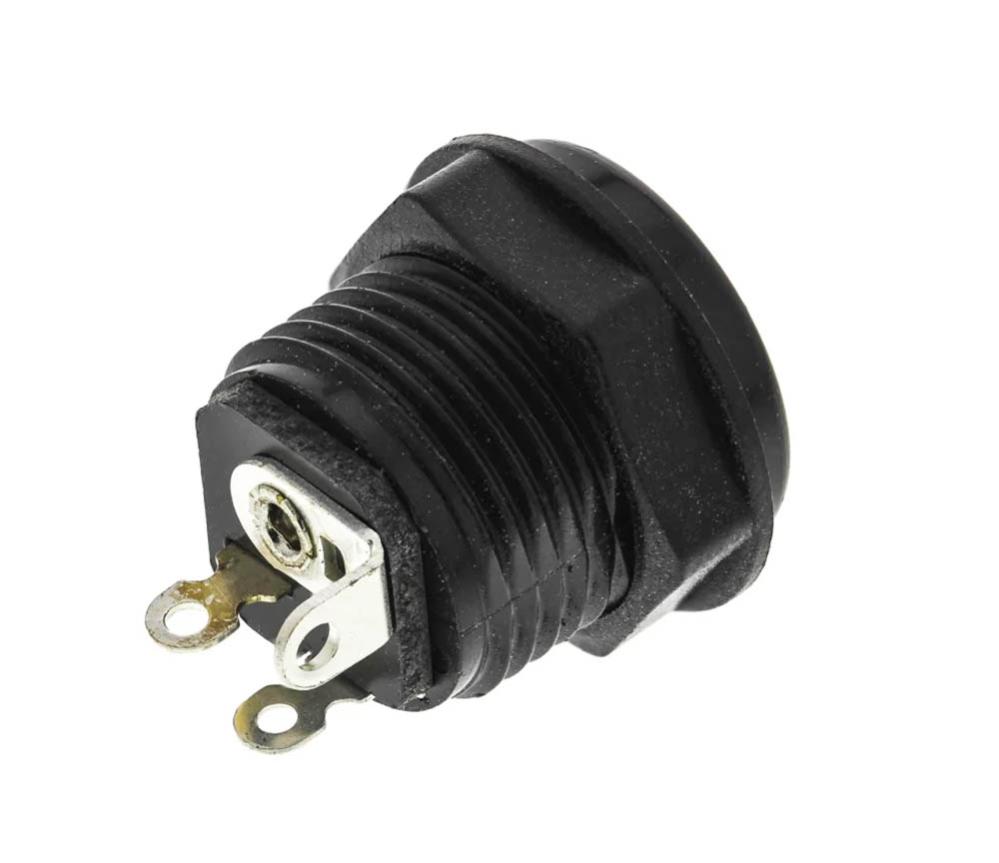

DC jack for panel mounting with 5.5 mm outer diameter and 2.1 mm inner diameter. The connector is straight and mounted to the panel with a nut from the rear. The jack has an integrated switch.
Specifications:
- Manufacturer: Lumberg
- Model: NEB/J 21 C
- Type: DC jack
- Connector size: 5.5/2.1 mm
- Rated voltage: 12 VDC
- Current (max): 0.5 A
- Orientation: Straight
- Mounting: Panel mount
- Panel cutout: ø12 mm
- Panel thickness (max): 6 mm
- Fastening: Nut from rear
- Electrical connection: Soldering
- Switch contact: Yes
