Product description

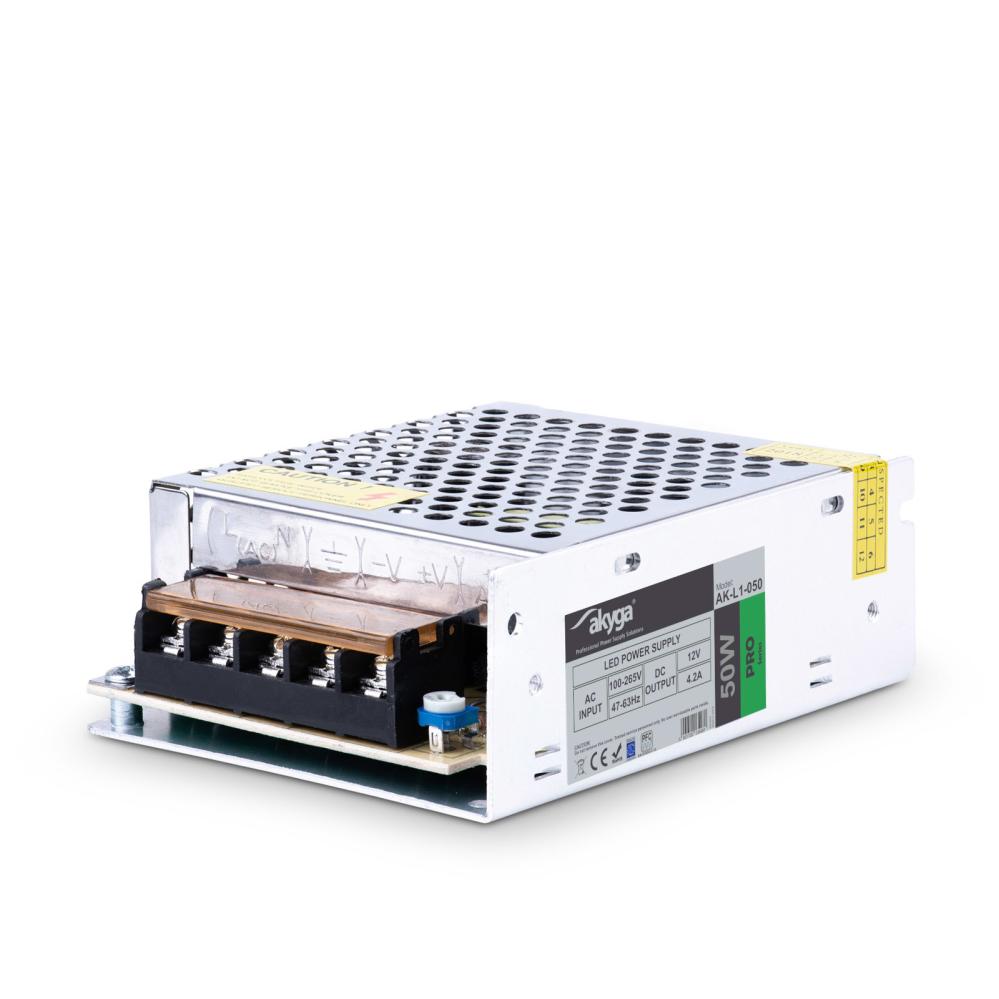

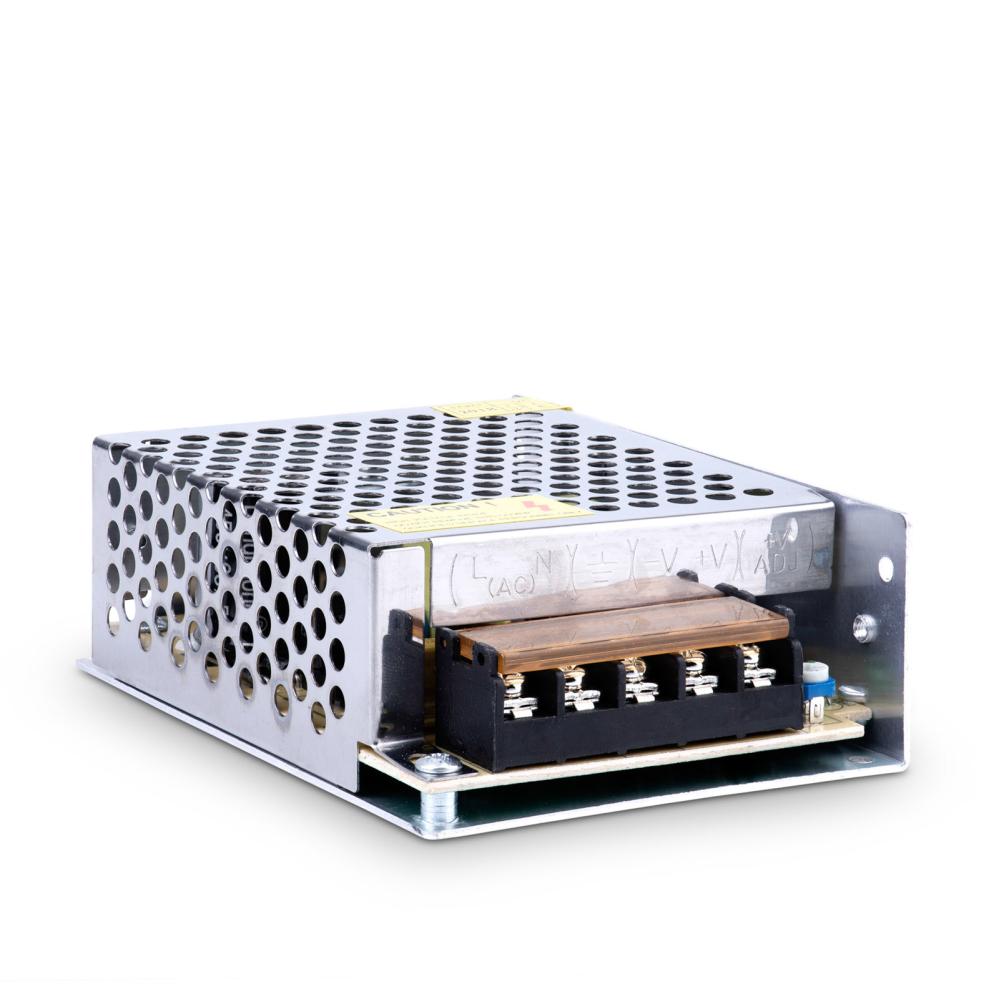

Switched-mode open-frame power supply with 50W of output power. 12V DC output voltage, adjustable with a trimmer potentiometer from 10.5-14V. Maximum output current 4.2A.
Used for applications such as industrial automation, machinery and lighting including LED strips, etc.
Protected against short circuits, overcurrent, over temperature and overvoltage. The power supply is also double-insulated.
Input and output voltages are connected via screw terminals.
Specifications:
- Output voltage: 12V, adjustable from 10.5-14V
- Output current: 4.2A
- Rated power: 50W
- Efficiency: 80%
- Input voltage: 100–265 VAC, 47–63 Hz
- IP rating: IP20
- Protection against: short circuit, overvoltage, overload, overheating
- Connection: screw terminal
- Operating temperature: 5 - 50 °C
- Dimensions: 110 x 78 x 37 mm
- Weight: 186 g
