Product description

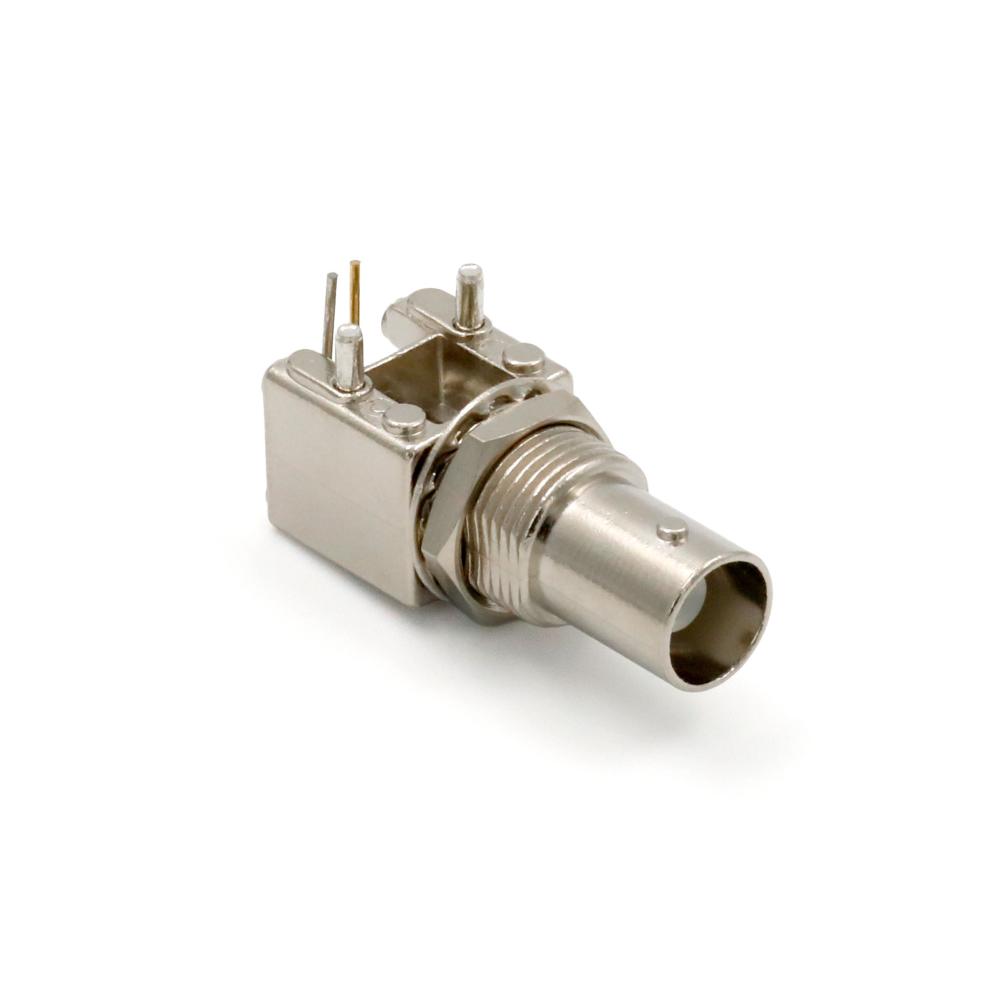

Right-angle BNC female connector for through-hole (THT) PCB mounting. Designed for RF applications with 50-ohm impedance and frequencies up to 3 GHz. The center pin is mounted through the PCB, while four ground pins together with a nut and washers provide secure mechanical fastening and a reliable ground connection. Suitable for test equipment, measuring instruments, and other high-frequency electronics.
Specifications:
- Type: BNC female, right-angle
- Mounting: Through-hole (THT)
- Impedance: 50 ohms
- Frequency range: DC to 3 GHz
- Operating temperature: -55 to +155 °C
