Product description

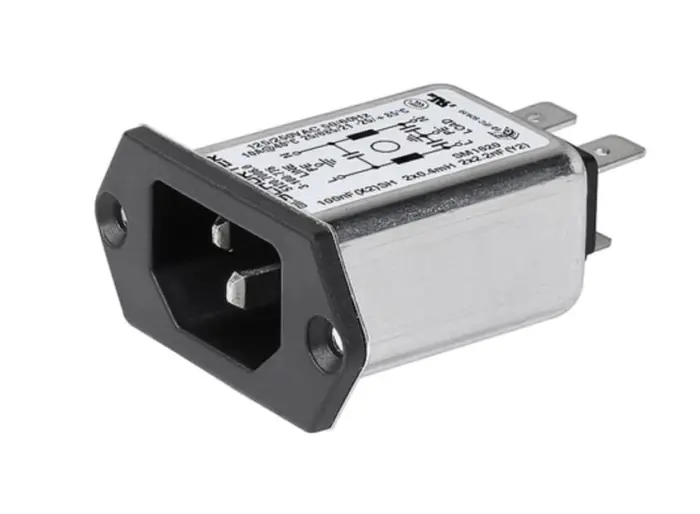

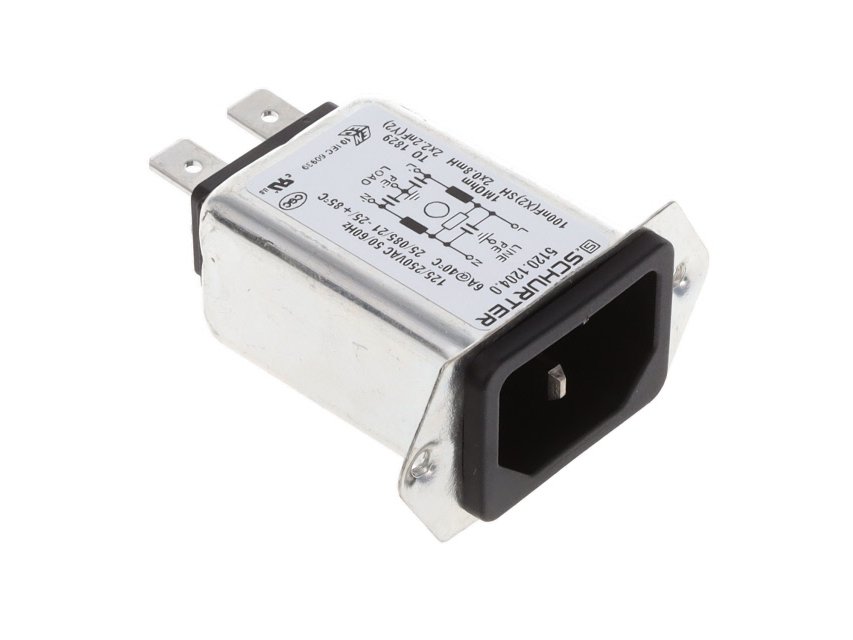

Schurter 5120 – Appliance Inlet with Integrated EMC Filter. The Schurter 5120 is a C14 appliance inlet with a high-performance mains filter in a compact format. The integrated filter is enclosed in a fully shielded metal housing for optimal electromagnetic protection. The filter components include class X1 and Y1 capacitors for improved voltage stability. The unit is designed to meet high electromagnetic compatibility (EMC) requirements in industrial applications.
Specifications:
- Rated voltage (max): 250 VAC
- Rated current (max): 10 A
- Leakage current: < 0.5 mA
- Dielectric strength: 1.7 kVDC between L–N, >2.7 kVDC between L/N–PE
- Operating temperature range: −25 °C to +85 °C
- Protection class: I or II according to IEC 61140
- IP rating (front side): IP40 according to IEC 60529
Mounting options:
- Screw mounting: With M3 screws
- Snap-in mounting: For panel thicknesses from 0.8 to 2 mm
- Connection: Faston 6.3 × 0.8 mm or solder connection
