Product description

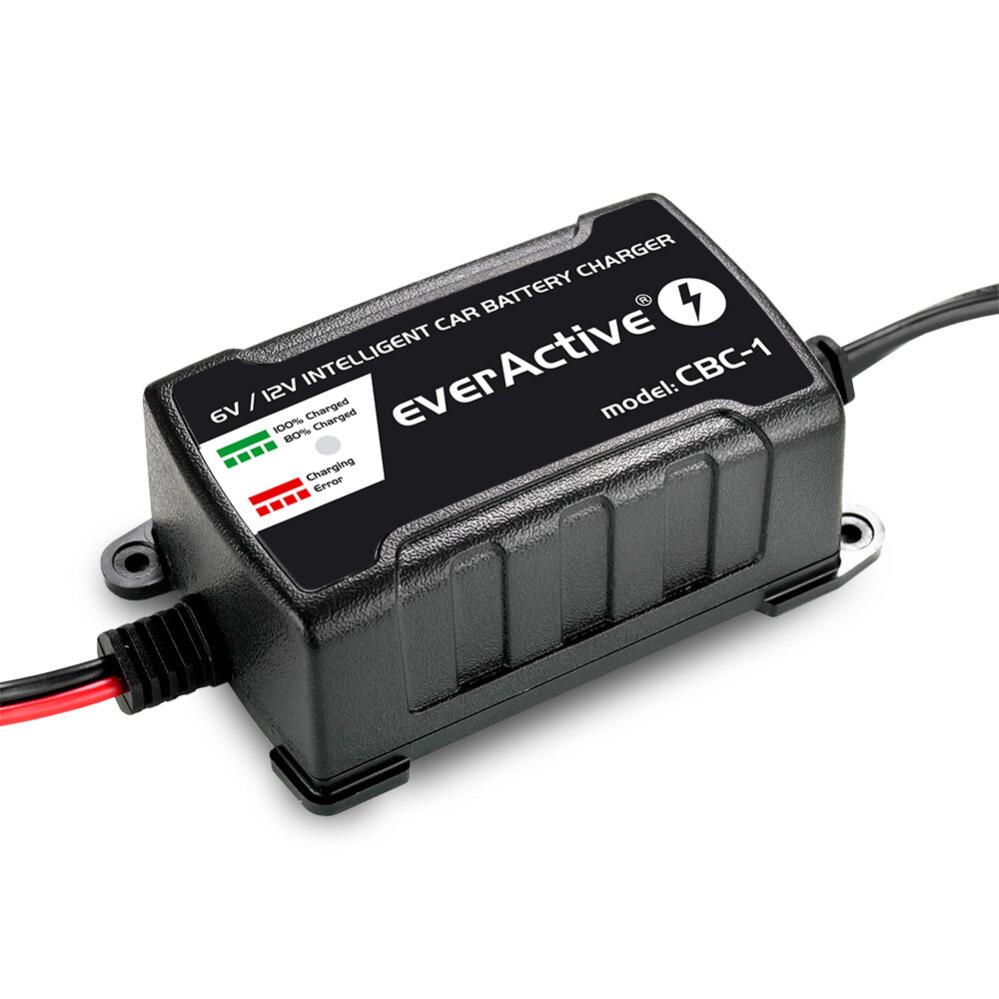

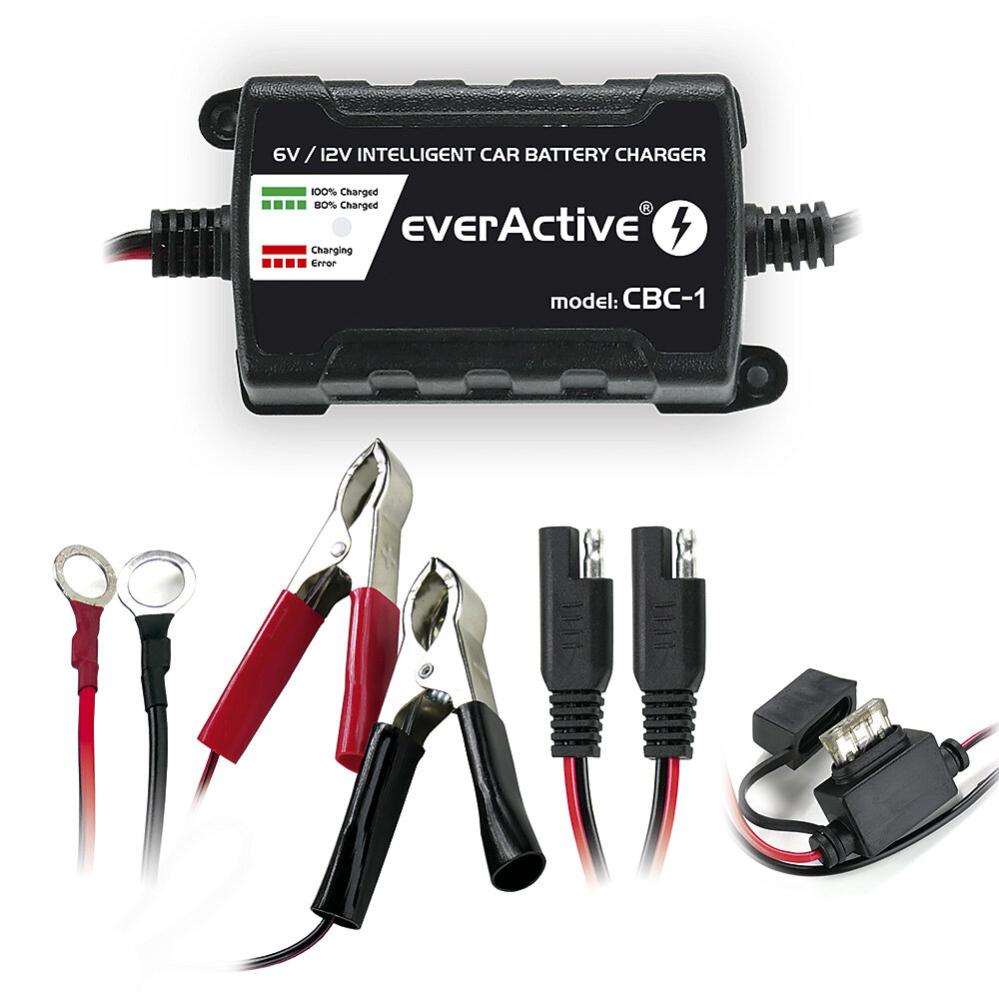

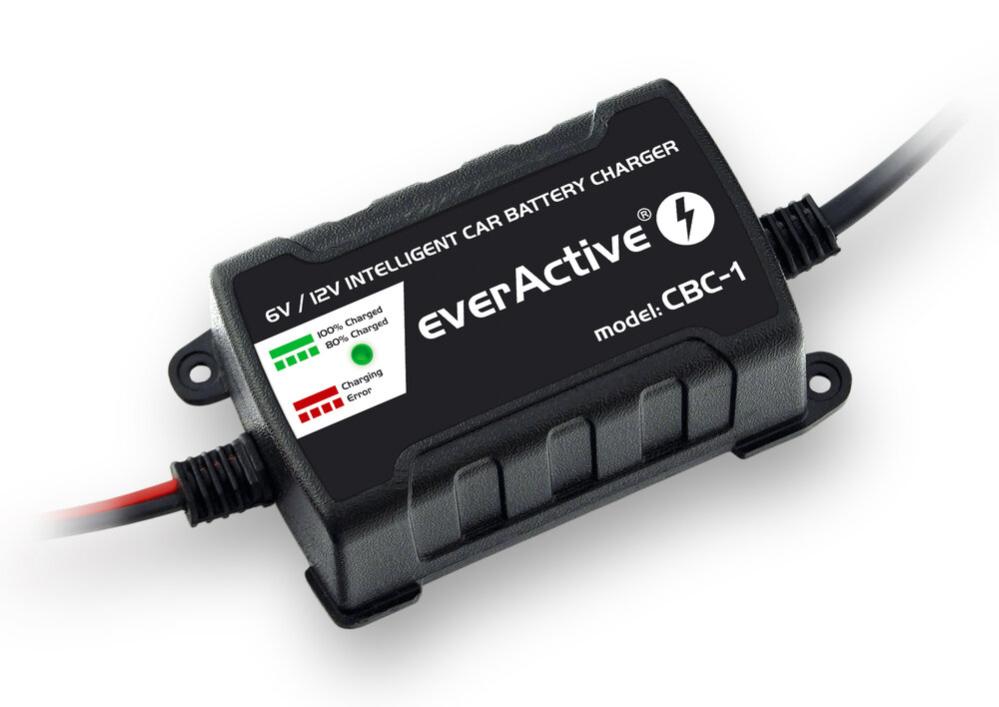

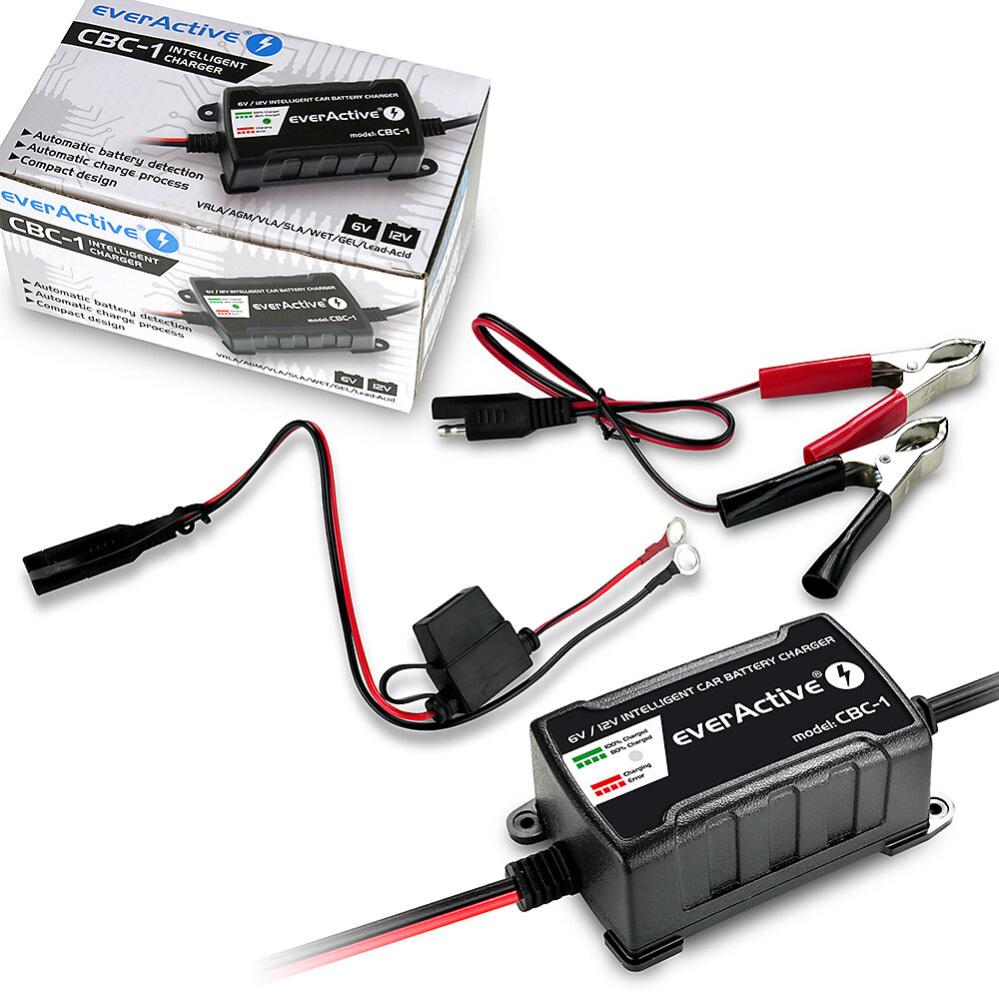

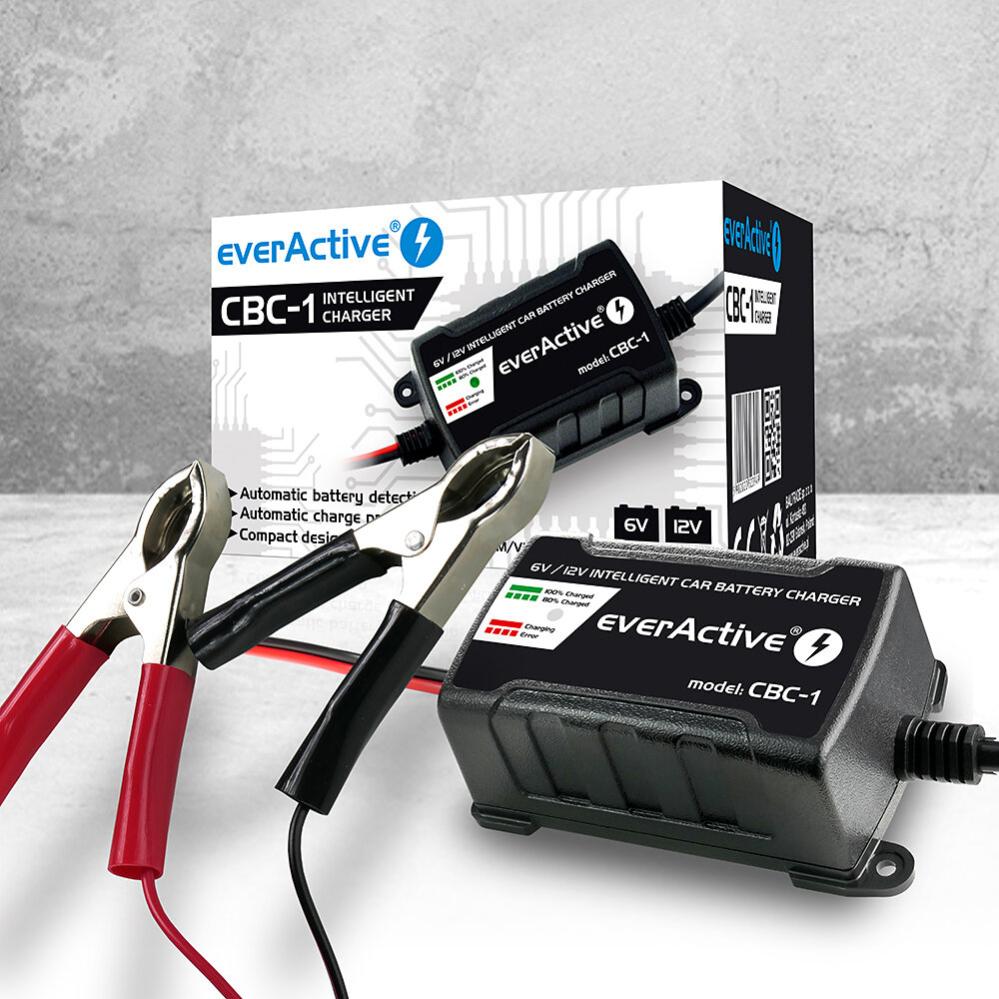

everActive CBC-1 v2 is an intelligent battery charger for automatic charging and maintenance charging of 6V and 12V lead-acid batteries. The charger is microprocessor-controlled and supports several battery types including lead-acid, AGM, GEL, and VRLA batteries. The automatic charging process monitors the battery status and resumes charging when needed. To keep the battery ready for use, the charger can remain connected for extended periods. The compact design makes the model suitable for car, motorcycle, and leisure batteries.
Specifications:
- Battery types: 6V / 12V Gel, Lead-Acid, AGM, VRLA, VLA, SLA, WET, GEL, EFB, Ca/Ca
- Automatic battery detection: Yes
- Charging current: 1A
- Charging voltage for 12V battery: approximately 14V
- Charging voltage for 6V battery: approximately 7V
- Recommended battery capacity: 1.2Ah to 120Ah
- Input voltage: 100–240VAC
- Efficiency: >75–80%
- Operating temperature: -10°C to 40°C
- Dimensions: 95 x 58 x 33mm

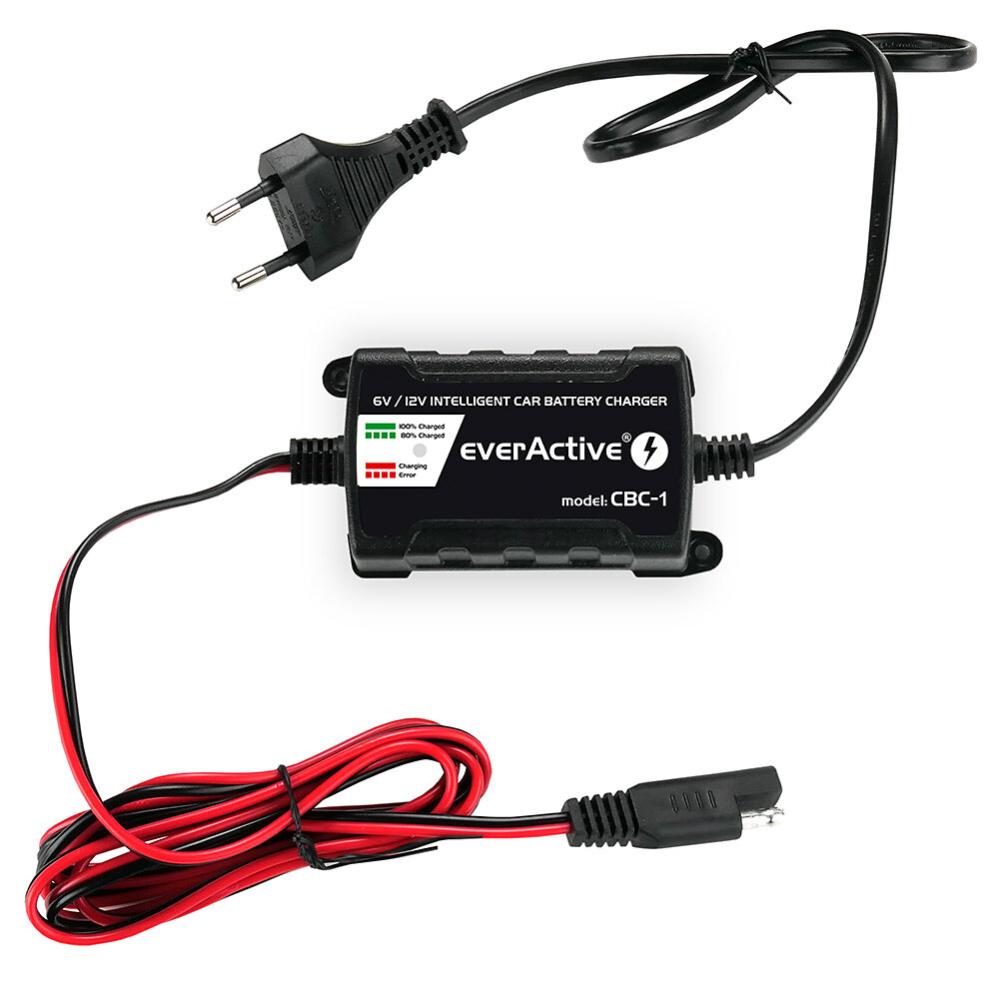

- Power cord length: approximately 0.5m

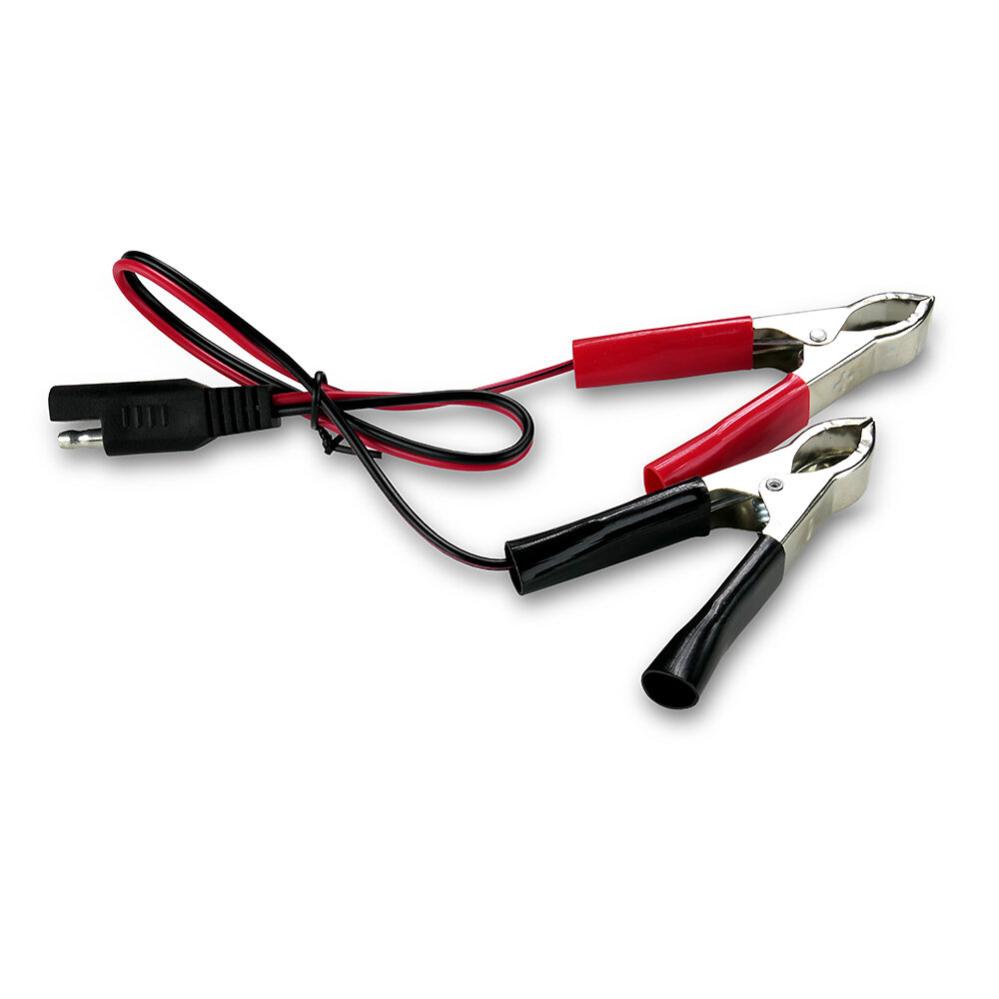

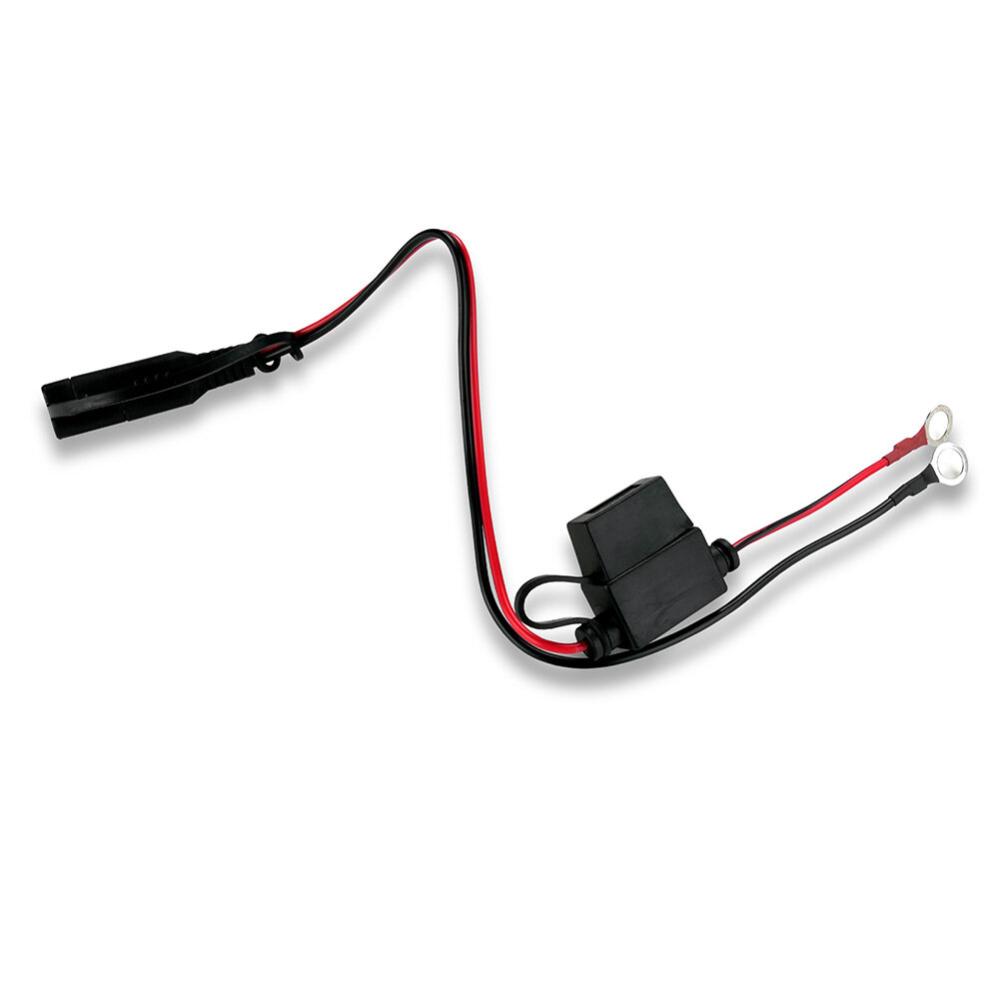

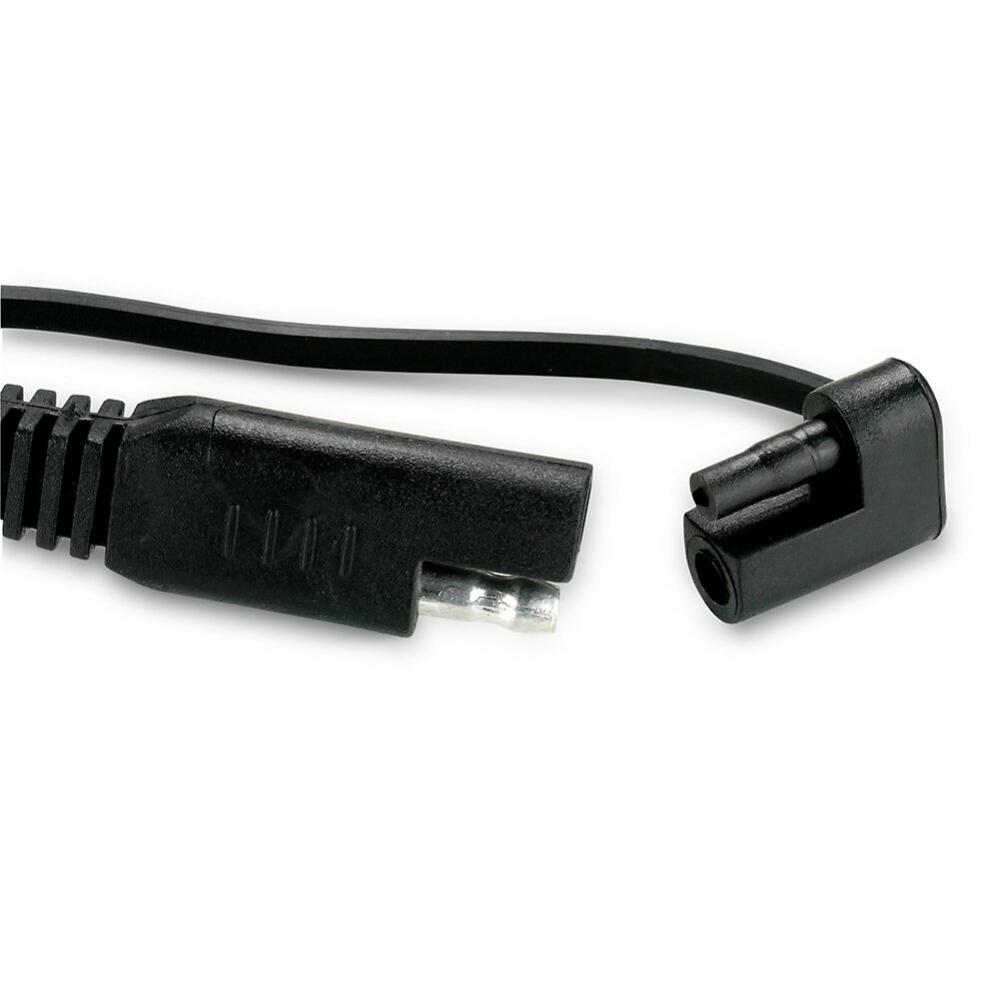

- Charging cable length: approximately 1.8m
Features:
- Fully automatic charging process
- Easy-to-use, buttonless design
- Automatic battery voltage detection
- Automatic charging recovery after reconnection to AC power source
- Microprocessor-controlled with pulse charging technology for extended battery life
- Float charging with 1A charging current (max) for optimal battery maintenance
- Reverse polarity protection
- Overheat protection
- Short-circuit protection
- Overcharge protection with precise charging voltage cut-off
- Keeps the battery fully charged at all times
