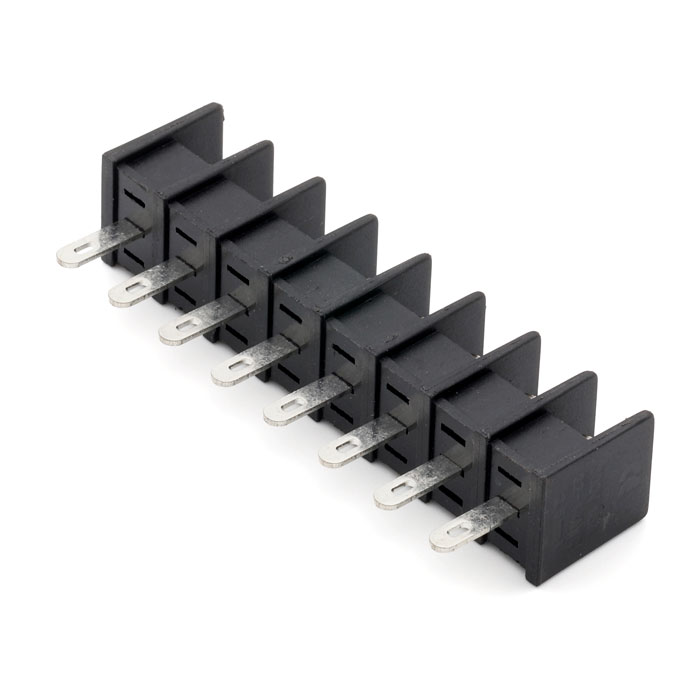

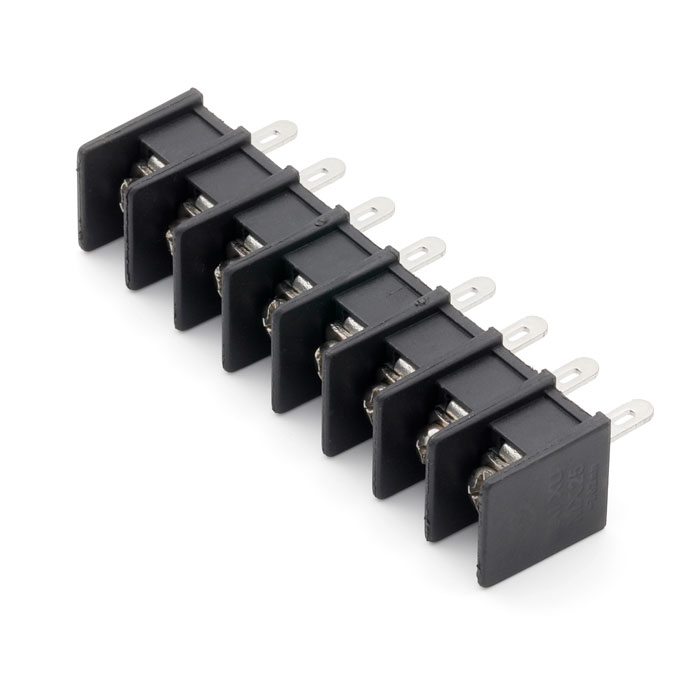

Barrier Terminal block 8-pole 0.25-2.5mm²

Art no: 41037581
Max - MX25MH-7.62-08P
16.50 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 16:50 4pcs = 62:60 10pcs = 148:50

QuantityPrice
1 3
16.50 SEK
4 9
15.65 SEK
10 24
14.85 SEK
25
12.35 SEK
In stock, 49 pcs. Leveranstid ca 1-3 vardagar
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Terminal block for chassis mounting. With screw connections. Barriers between the poles prevent short circuits.

Specifications:

  • Number of poles: 8
  • Wire size: 0.25 - 2.5 mm² (AWG 22 - 14)
  • Rated voltage: 300 VAC
  • Rated current: 15 A
  • Connection: Screw (M3)
  • Pitch: 7.62 mm
  • Chassis mounting holes: Ø3.15 mm
  • Operating temperature: -40 to +105 °C
  • Material: PA66 (polyamide 66)
  • Flammability rating: UL94 V-0

Product information

  • SKU:

    41037581

  • MPN:

    Max - MX25MH-7.62-08P

  • HS / TARIC:

    8536901000
