Barrier Terminal block 6-pole 0.25-2.5mm² @ electrokit
Barrier Terminal block 6-pole 0.25-2.5mm² @ electrokit
Barrier Terminal block 6-pole 0.25-2.5mm² @ electrokit

Barrier Terminal block 6-pole 0.25-2.5mm²

Art no: 41037580
Max - MX25MH-7.62-06P
12.90 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 12:90 4pcs = 49:- 10pcs = 116:-

QuantityPrice
1 3
12.90 SEK
4 9
12.25 SEK
10 24
11.60 SEK
25
9.65 SEK
In stock, 49 pcs. Leveranstid ca 1-3 vardagar
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

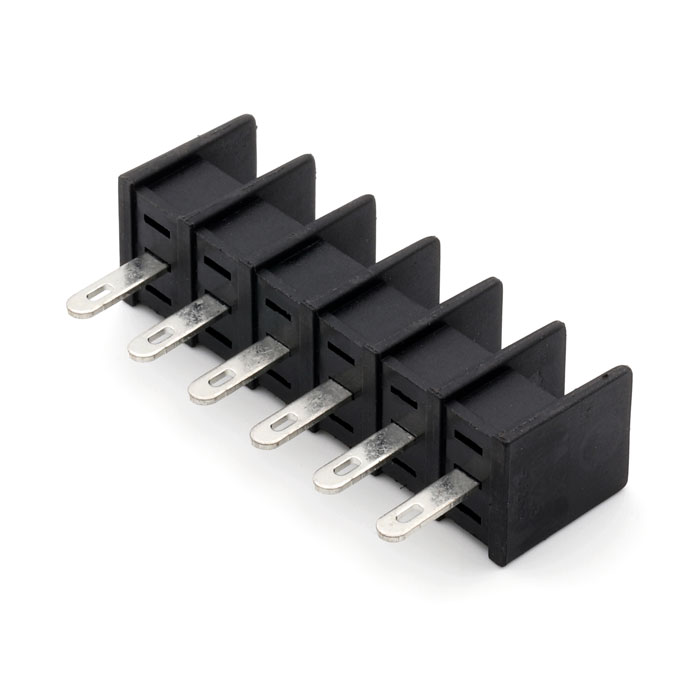

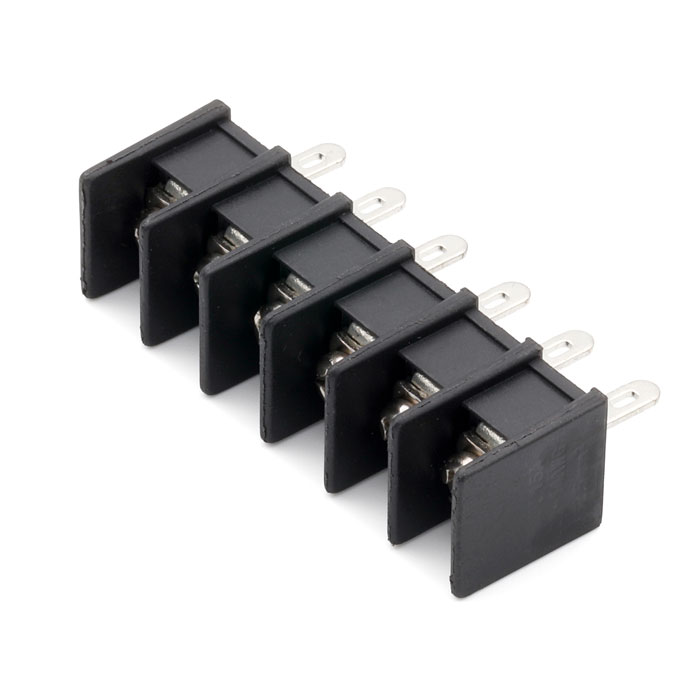

Terminal block for chassis mounting. With screw connections. Barriers between the poles prevent short circuits.

Specifications:

  • Number of poles: 6
  • Wire size: 0.25 - 2.5 mm² (AWG 22 - 14)
  • Rated voltage: 300 VAC
  • Rated current: 15 A
  • Connection: Screw (M3)
  • Pitch: 7.62 mm
  • Chassis mounting holes: Ø3.15 mm
  • Operating temperature: -40 to +105 °C
  • Material: PA66 (polyamide 66)
  • Flammability rating: UL94 V-0

Product information

  • SKU:

    41037580

  • MPN:

    Max - MX25MH-7.62-06P

  • HS / TARIC:

    8536901000
