Product description

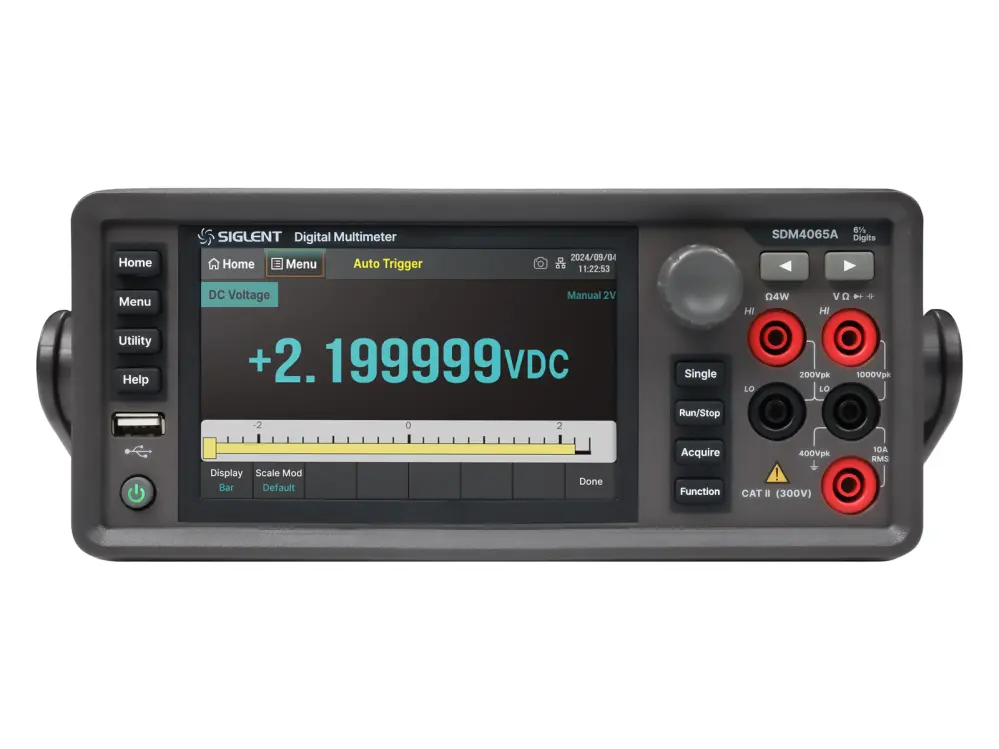

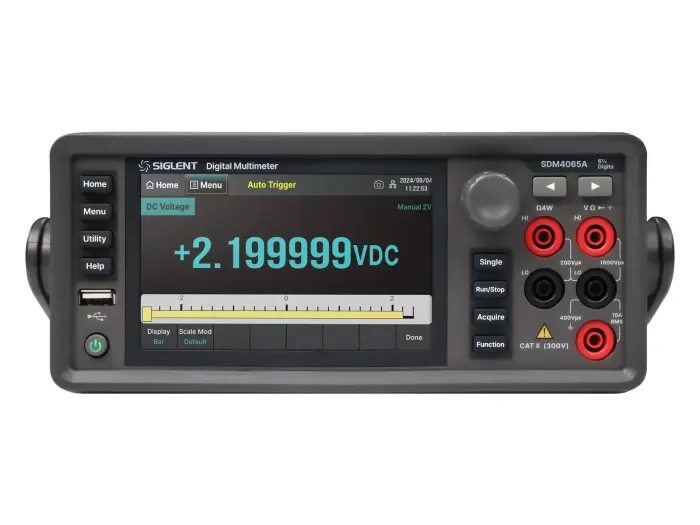

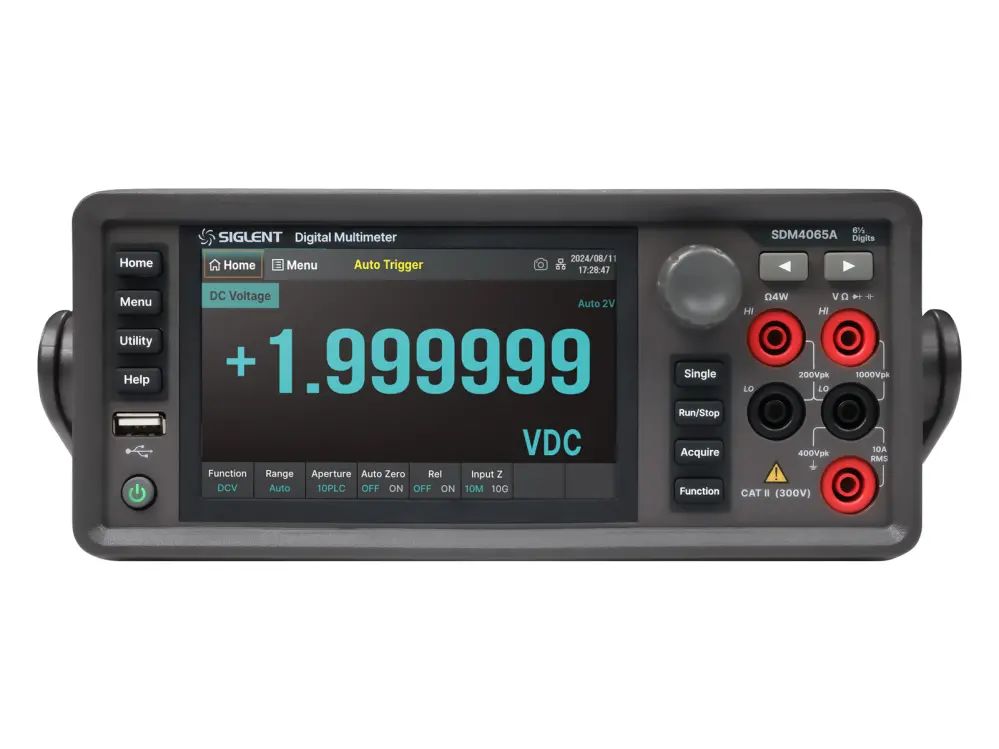

The Siglent SDM4065A with 12-channel scanner is a high-performance 6½-digit benchtop multimeter from Siglent, designed for measurements requiring very high accuracy and fast response time. When combined with a 12-channel multiplexer, the instrument is ideal for automated multi-point testing, measurement sequences, and data logging applications. Suitable for use in laboratories, production environments, and calibration systems. The multimeter offers a resolution of 6½ digits (2,200,000 counts), a 5-inch TFT color display with intuitive navigation, and support for SCPI commands for both manual and remote-controlled testing.
Specifications
- Resolution: 6½ digits (2,200,000 counts)
- DC voltage: up to 1000 V, accuracy ±(0.0015 % + 2 digits)
- AC voltage (TRMS): up to 750 V
- DC current: up to 10 A
- AC current (TRMS): up to 10 A
- Resistance: up to 100 MΩ
- Capacitance: up to 10 mF
- Frequency and period measurement: 3 Hz–1 MHz
- Temperature measurement: supports RTD and thermocouples
- 4-wire measurement mode for low-resistance testing
- Diode test and continuity check
- Math functions: max/min, average, standard deviation, dBm/dB, pass/fail

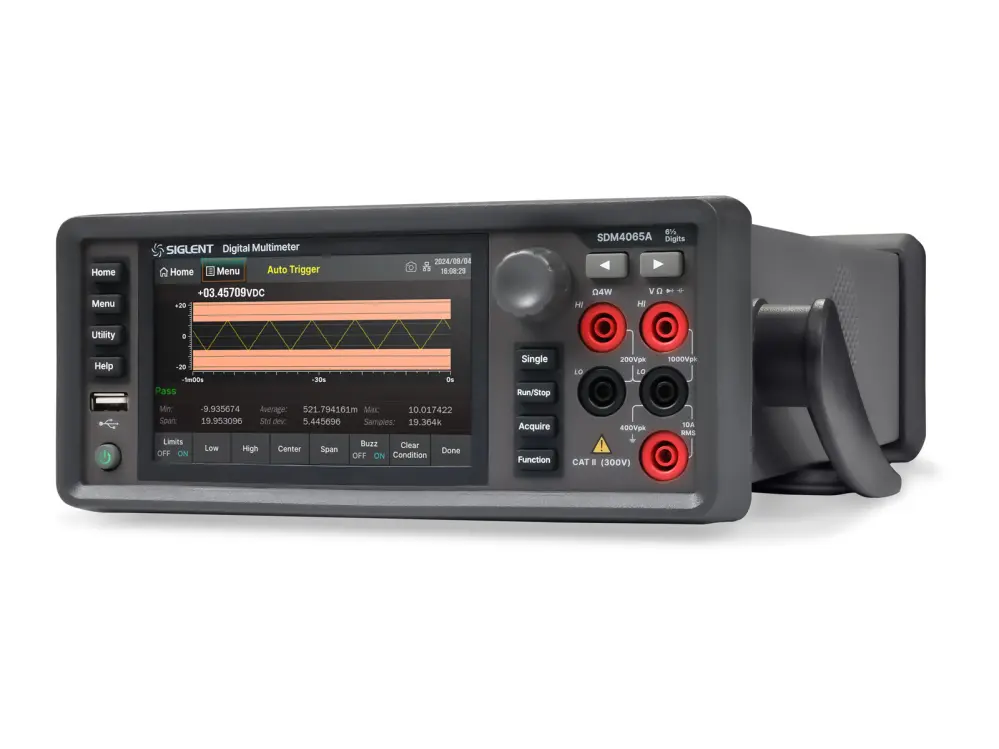

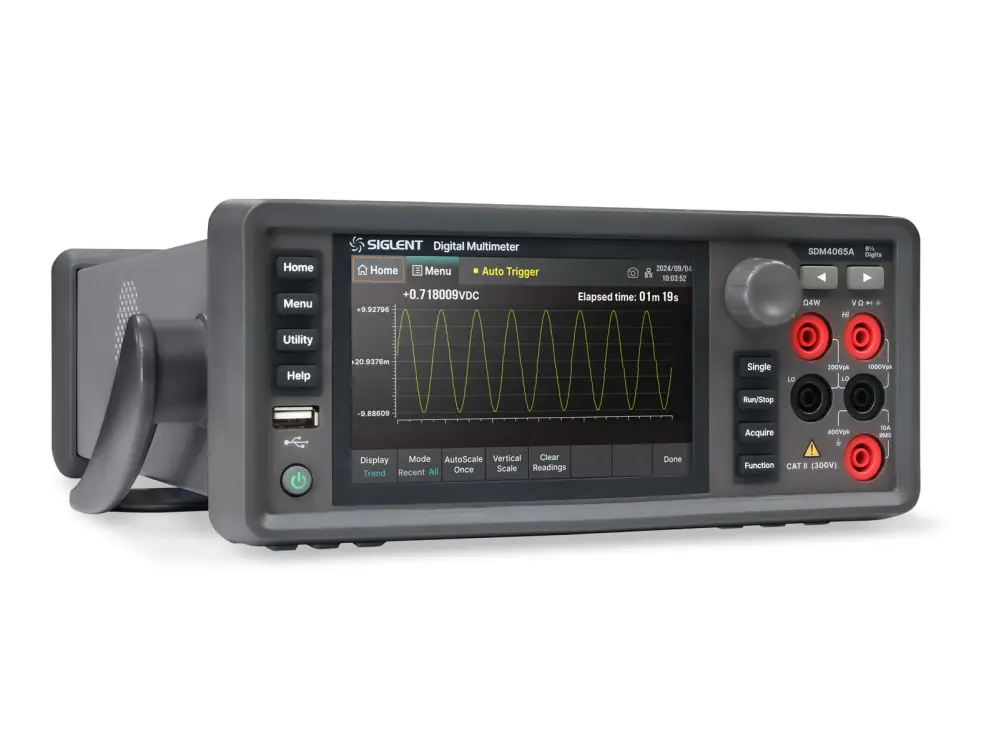

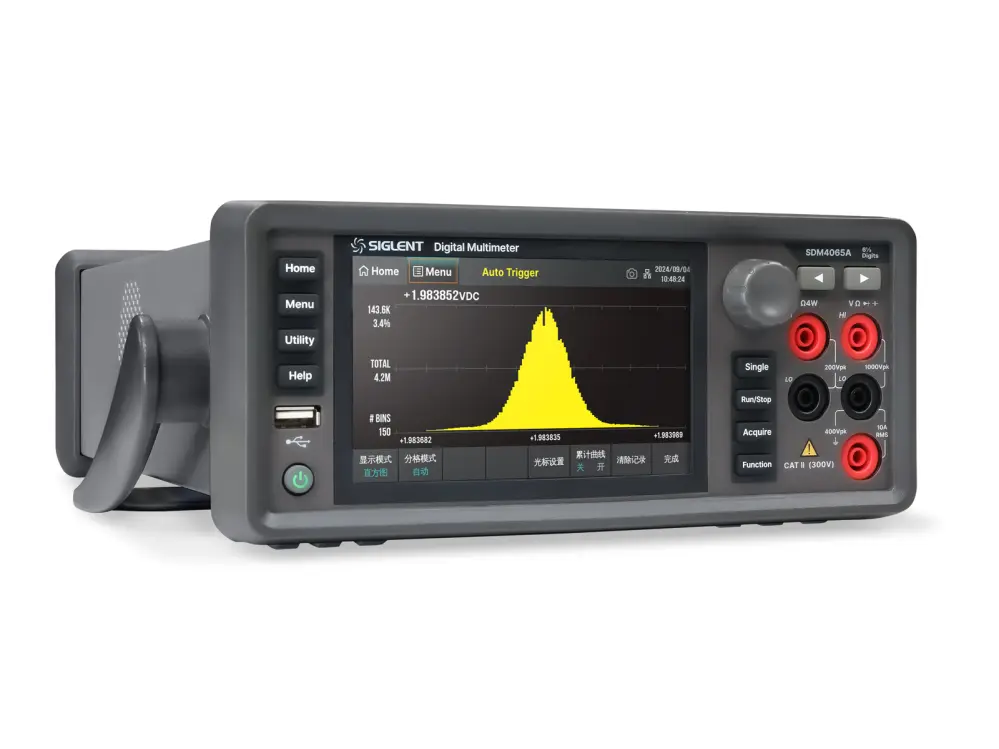

- Display modes: numeric, histogram, trend, bar chart
- Reading/update rate: up to 50,000 readings/s
- Internal storage: up to 2 million readings

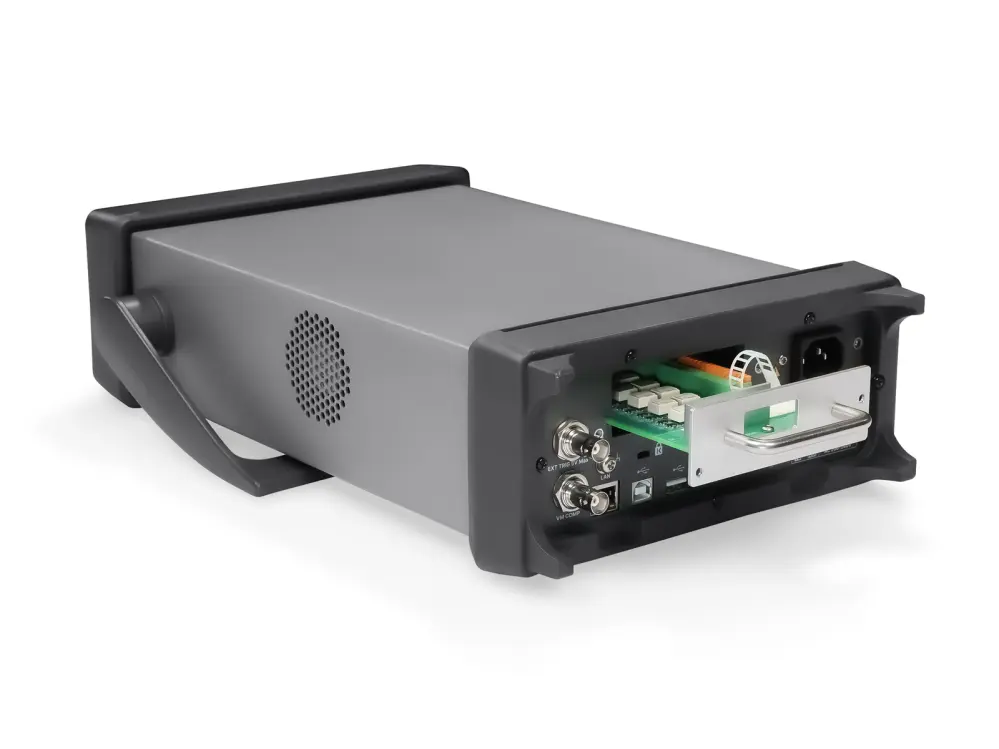

- Support for 12-channel multiplexer (MUX) for sequential measurement
- Interfaces: USB Host/Device, LAN (VXI-11), GPIB (optional)
- SCPI compatible for remote control and automation
- 5-inch TFT display (800×480 px) with user-friendly interface
