Product description

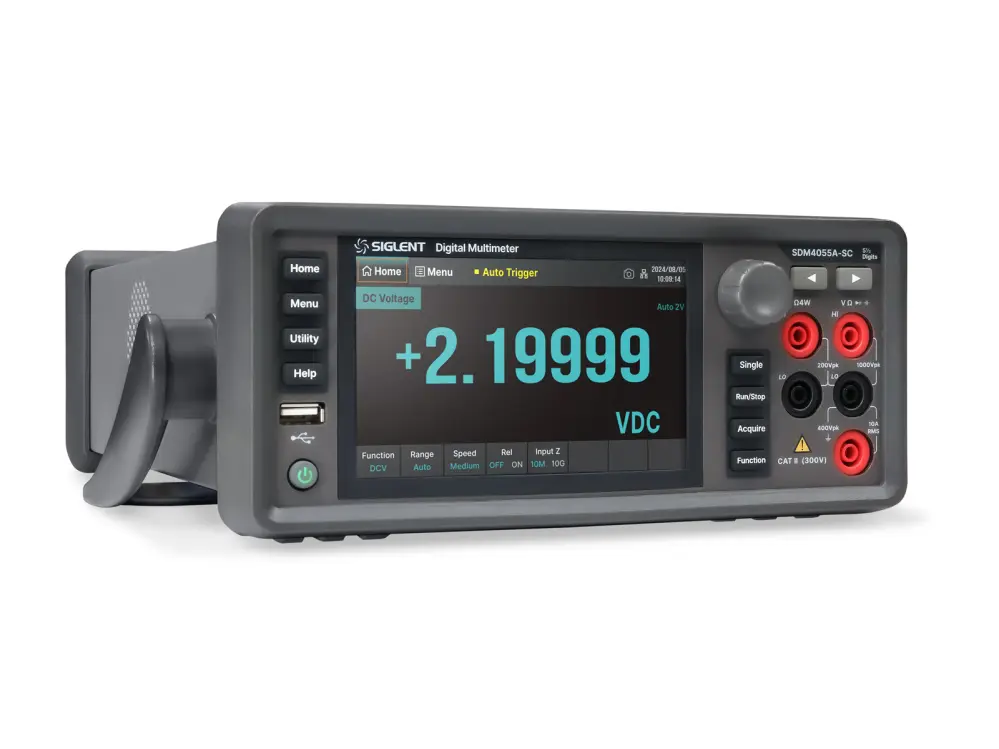

Siglent SDM4055A with 12-channel scanner is a high-performance 5½-digit multimeter from Siglent, designed for measurements requiring high accuracy and fast response. When combined with a 12-channel multiplexer, the instrument is particularly well-suited for automated multi-point testing and data logging applications. Ideal for laboratories, production environments, and calibration tasks. The multimeter features a resolution of 220,000 counts, a 5-inch TFT color display with intuitive navigation, and support for SCPI commands for both manual and remote-controlled testing.
Specifications
- Resolution: 5½ digits (220,000 counts)
- DC voltage: up to 1000 V, accuracy ±(0.015 % + 2 digits)
- AC voltage (TRMS): up to 750 V
- DC current: up to 10 A
- AC current (TRMS): up to 10 A
- Resistance: up to 100 MΩ
- Capacitance: up to 10 mF
- Frequency and period measurement: 3 Hz–1 MHz
- Temperature measurement: supports RTD and thermocouples
- 4-wire measurement mode for low-resistance testing
- Diode test and continuity check

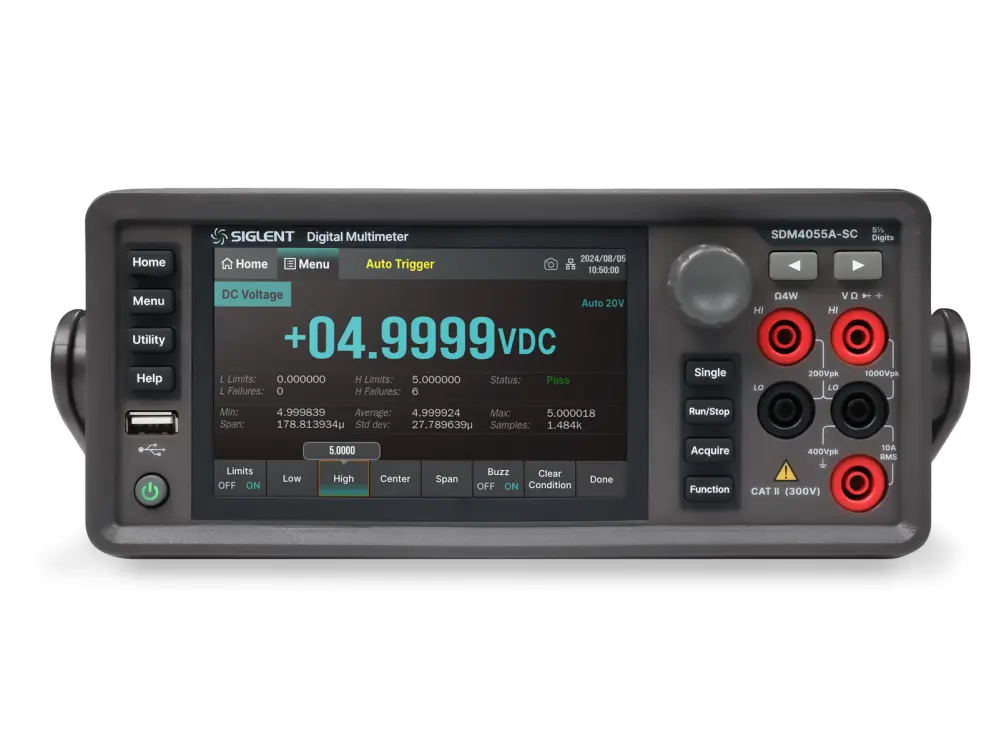

- Math functions: max/min, average, standard deviation, dBm/dB, pass/fail

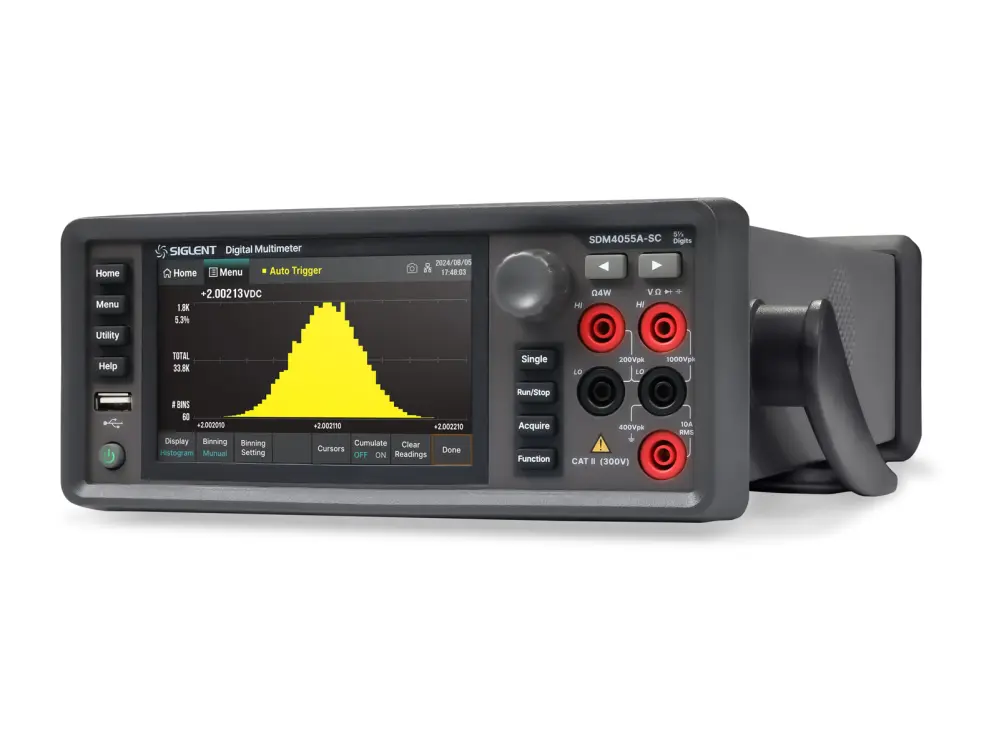

- Display modes: numeric, histogram, trend, bar chart
- Reading/update rate: up to 4800 readings/s
- Internal storage: up to 2 million readings

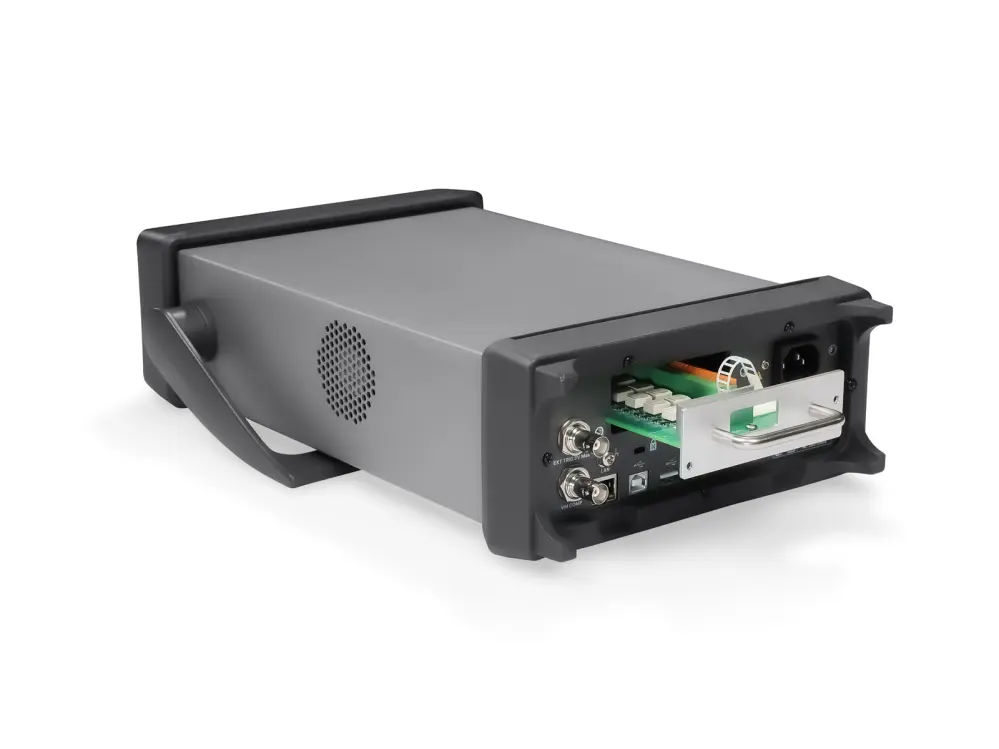

- Support for 12-channel multiplexer (MUX) for sequential measurements

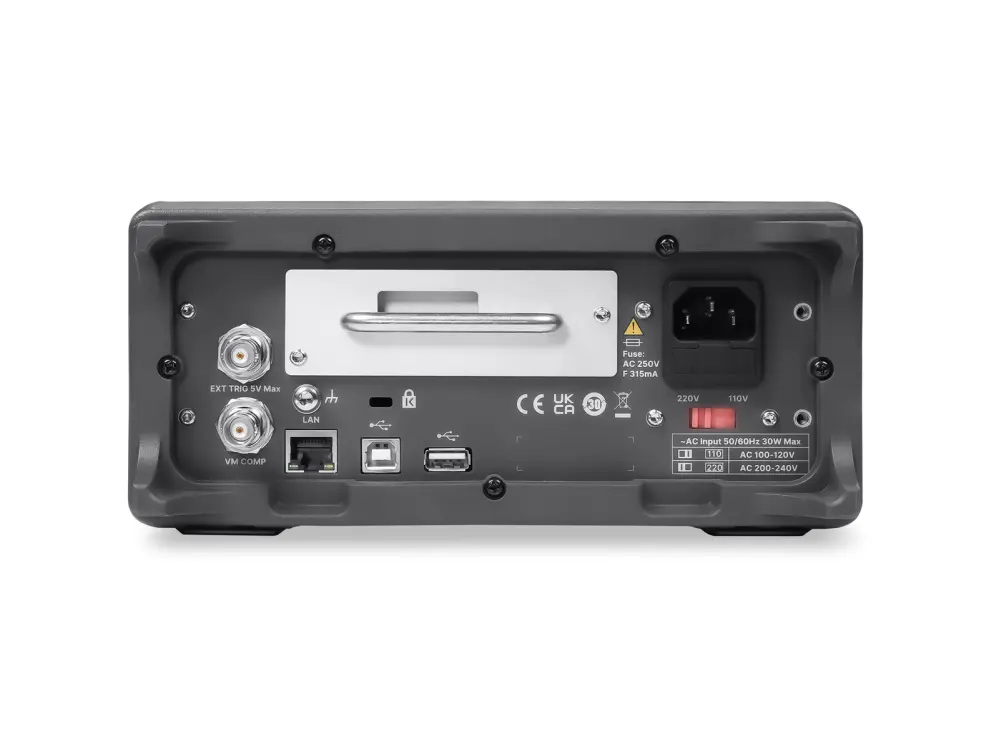

- Interfaces: USB Host/Device, LAN (VXI-11), GPIB (optional)
- SCPI compatible for remote control and automation
- 5-inch TFT display (800×480 px) with user-friendly interface
