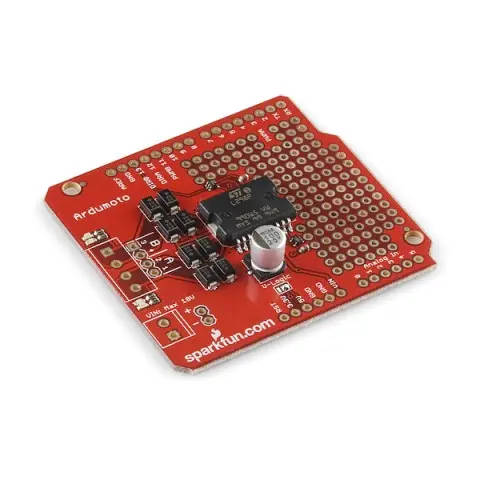

Ardumoto motor driver shield

Art no: 41004249 - Sparkfun
Shop this product, Ardumoto motor driver shield
price 349 SEK
Including 25% VAT
In stock, 3 pcs
Unit: Piece

12 000 products

Quick dispatch

Nordics and EU shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

The new version of this shield allows for either 3.3 or 5v logic, a separate and more robust VIN connection, and the PWM input has moved to pin 3.

This is a motor shield for Arduino that will control two DC motors. Based on the L298 H-bridge, the Ardumoto can drive up to 2 amps per channel. The board takes its power from the same Vin line as the Arduino board, includes blue and yellow LEDs to indicate active direction, and all driver lines are diode protected from back EMF.

Control for motor attached to OUT1/2 is connected to digital line 12 (direction A) and digital line 3 (PWM A).
Control for motor attached to OUT3/4 is connected to digital line 13 (direction B) and digital line 11 (PWM B).

Compatible connectors are not included. See related products for suitable connectors.

Technical data

Technical data/attributes for this product
Attribute Value
Formfactor
Arduino
  • SKU:

    41004249
  • MPN:

    DEV-14129
