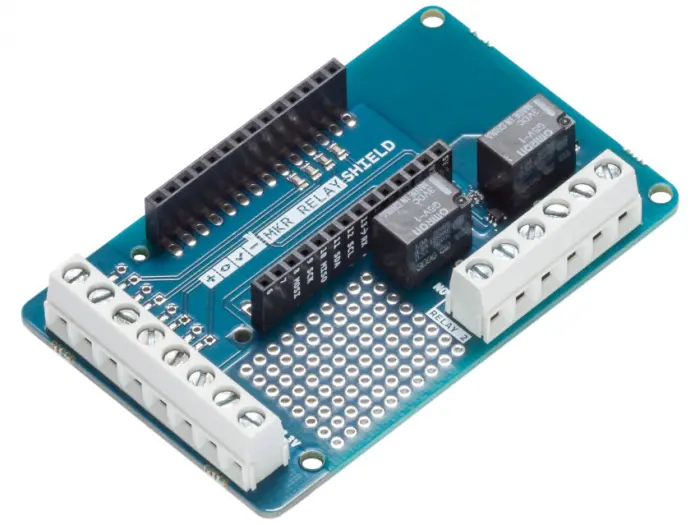

Arduino MKR Relay Proto Shield

Art no: 41016482 - Arduino

Sorry, this product is outdated and no longer active

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

The MKR Relay Protoshield allows you to easily add relays to your MKR board based project. The shield provides two relays called RELAY1 and RELAY2 commanded by pin 1 and pin 2respectively. The shield also provides easy connection by means of screw terminal blocks to A1 toA4 analog inputs, I2C and supply voltages.

Operating voltage 3.3V (supplied from the host board)
Two relays with NO, COM and NC connections
Works with battery powered board
Screw terminal blocks for easy connections
Carry current: 2 A
Max. operating voltage: 125 VAC, 60 VDC
Max. operating current: 1 A
Max. switching capacity: 62.50 VA, 30W

Technical data

Technical data/attributes for this product
Attribute Value
Formfactor
MKR
  • SKU:

    41016482
  • MPN:

    TSX00003
  • EAN / GTIN:

    7630049200760
