Product description

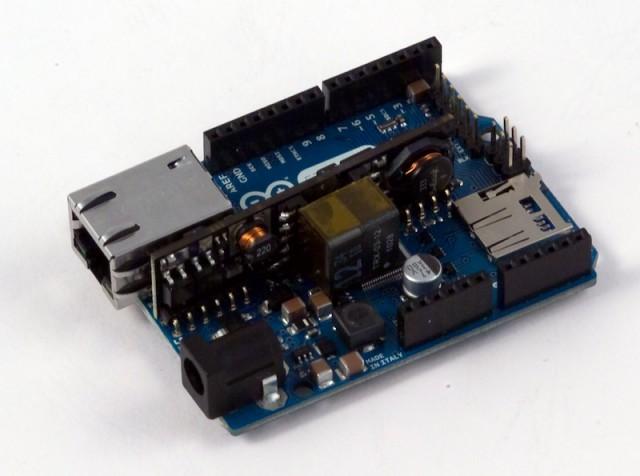

An Arduino Uno-compatible board with Ethernet and PoE capabilities. For USB-connectivity, a USB to serial converter or FTDI-cable is required.
Microcontroller ATmega328
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (of which 4 provide PWM output)
Arduino Pins reserved
10 to 13 used for SPI
4 used for SD card
2 W5100 interrupt (when bridged)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Clock Speed 16 MHz
W5100 TCP/IP Embedded Ethernet Controller
Power Over Ethernet ready Magnetic Jack
Micro SD card, with active voltage translators
