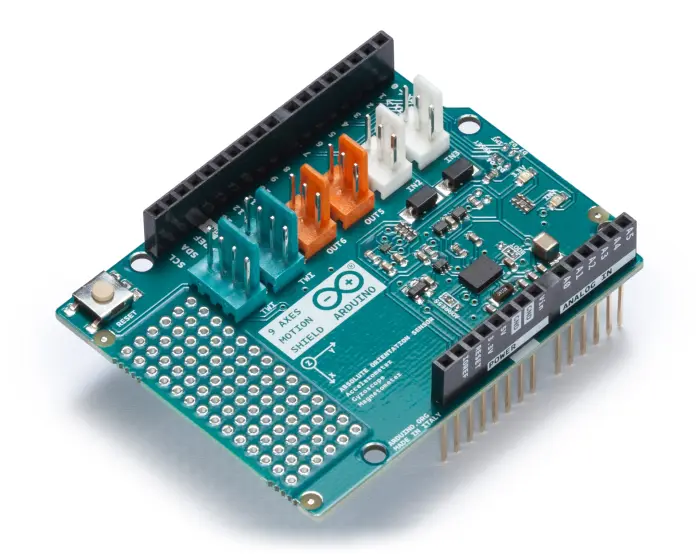

Arduino 9 axes motion shield
Art no: 41013646
Arduino - A000070
Sorry, this product is outdated and no longer active
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
The Arduino 9 Axes Motion Shield is based on the BNO055 absolute orientation sensor (datasheet) from Bosch Sensortec GmbH. The BNO055 is a System in Package (SiP), integrating a triaxial 14-bit accelerometer, a triaxial 16-bit gyroscope with a range of ±2000 degrees per second, a triaxial geomagnetic sensor and a 32-bit microcontroller running the BSX3.0 FusionLib software. The sensor features three-dimensional acceleration, yaw rate and magnetic field strength data each in 3 perpendicular axes. It also provides the sensor fusion signals such as * Quaternion
* Euler angles
* Rotation vector
* Linear acceleration
* Gravity vector
In addition, it incorporates an intelligent interrupt engine, which allows for triggering interrupts based on
slow or no motion recognition
any motion (slope) detection high-g-detection.
The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.
* Euler angles
* Rotation vector
* Linear acceleration
* Gravity vector
In addition, it incorporates an intelligent interrupt engine, which allows for triggering interrupts based on
slow or no motion recognition
any motion (slope) detection high-g-detection.
The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.
Technical data
Attribute | Value |
---|---|
Formfactor
|
CORE
|
SKU:
41013646MPN:
A000070EAN / GTIN:
7630049200661
