Product description

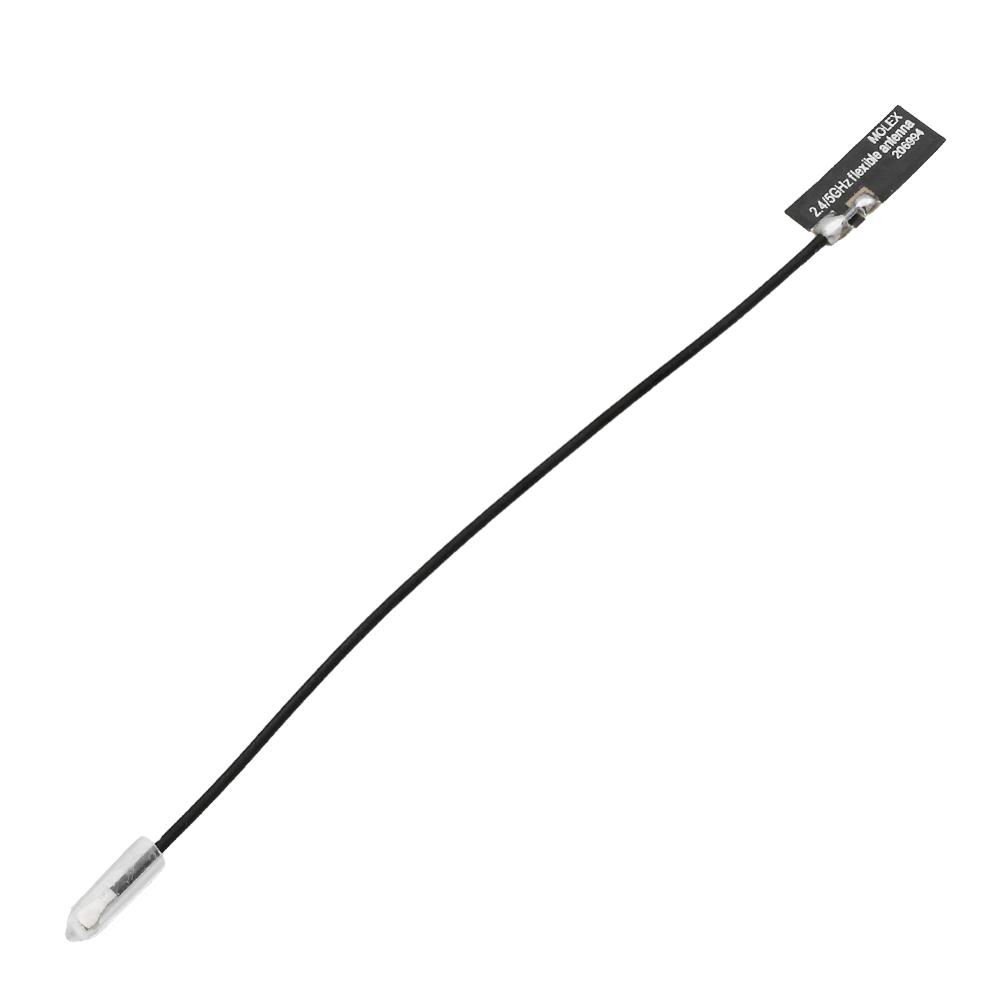

2.4/5.0/6.0 GHz tri-band ISM antenna with U.FL connector. Suitable for WiFi 6E 7, also WiFi/WiFi 4/LPWA/Bluetooth/ZigBee/RFID. Mounted using double-sided adhesive tape. Connection via 100 mm cable. Suitable for e.g. ESP32 modules with antenna output. Designed for use in IoT devices, drones and UAVs, home automation, consumer electronics, mobile devices, and industrial, scientific, and medical equipment.
Specifications:
- Frequencies (MHz): 2400-2483 / 5150-5850
- Return loss (dB): z -< -10 / < -5
- Max antenna gain (dBi): 3.6 @ 5 GHz
- Impedance: 50 Ohm
- Polarization: linear
- Max input power: 2 W
- Dimensions: 15.4 x 6.4 x 0.15 mm
- Cable: ø1.13 mm, 100 mm
- Connector: W.FL / MHF4
