Product description

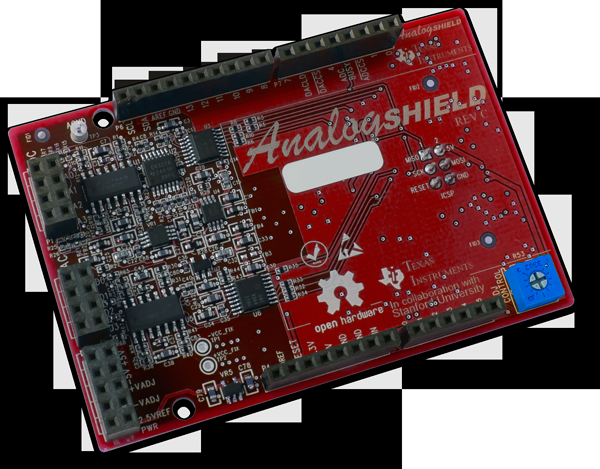

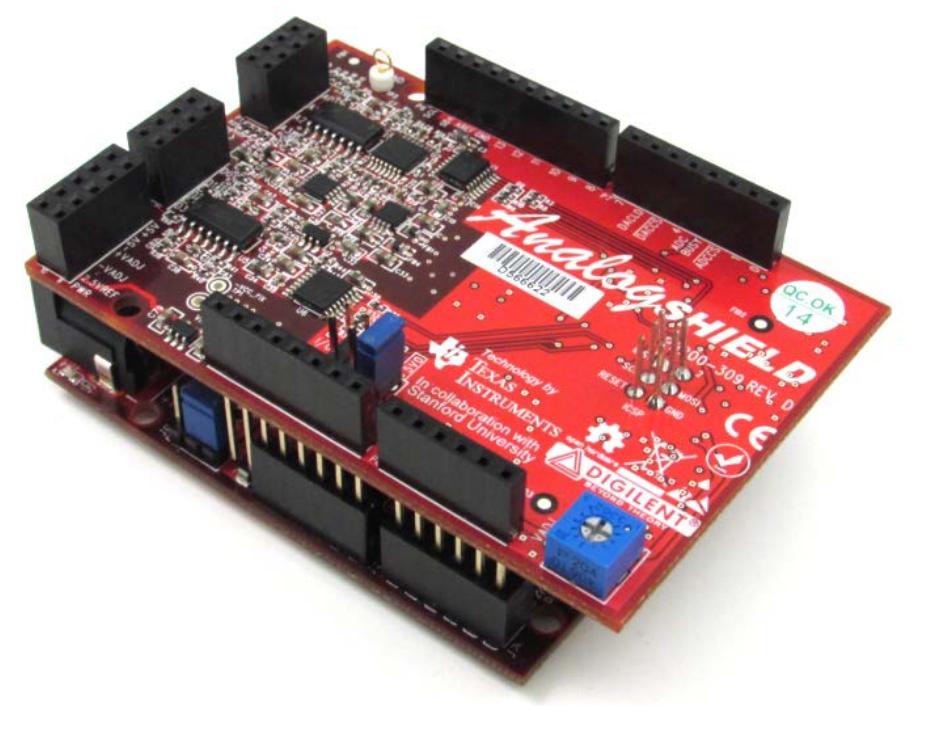

Designed to bring the world of Analog Electronics to the Arduino Uno.*
The Analog Shield was created in collaboration with Stanford University and the TI University Program and is manufactured by Digilent Inc. It was designed to be part of the open source community and reference materials, demo code for the Arduino Uno, files and schematics are included in the collection of Instructables tutorials you can download below.
The origins of the Analog Shield begin with Dr. Gregory Kovacs, professor at Stanford University who wanted to capitalize on the successes his students were having with the Arduino and use that as a bridge into the world of analog electronics. Partnering with the TI University program, his student Bill Esposito worked with TI engineers to create a shield board that could convert an Arduino board into a powerful mixed signal prototyping system. Prof. Kovacs has used this powerful combination to teach his students fundamental concepts such as:
Quantization and sampling
Direct digital synthesis
Analog noise vs Digital noise
...and more.
The following plug-and-play demo examples are currently available:
FFT Spectrum Visualizer
Direct Digital Synthesis Function generator
Lissajou Pattern Generator
Polyphonic MIDI Player
The Analog Shield is designed with TI analog technology that provides up to 4 channels of 16-bit analog signal input and output. Also on board are integrated fixed +/-5V and variable +/- 7.5V power supplies.
Included is a small 170 point solderless breadboard that can be affixed to the shield itself for prototyping with through-hole components. The shield was designed and optimized to work with the Arduino Uno.
Key parts on the shield:
ADS8343: 16 bit, 4 channel Analog to Digital converter
DAC8564: 16 bit, 4 channel Digital to Analog converter
Variable 7.5V bipolar power supply
Fixed 5V bipolar power supply
Breadboard
Can be used with:
TI Analog myPartsKit
Digilent Electronics Explorer Board
chipKIT Uno32*
Arduino Uno
