Product description

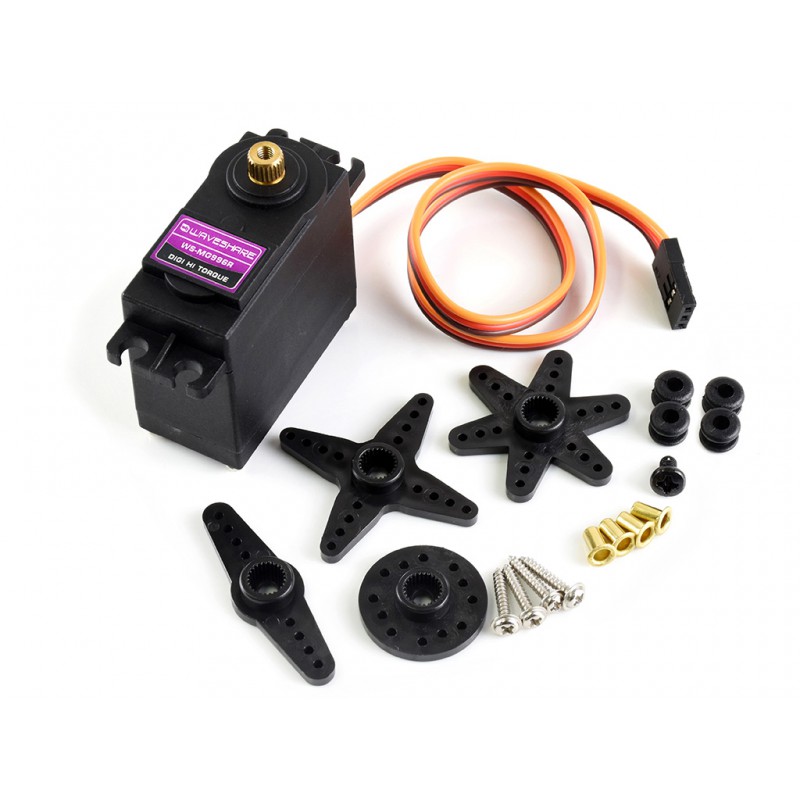

Analog servo with metal gearbox. Can be controlled from e.g. Arduino, Raspberry Pi, ESP32, RC receiver, etc. Fixed end positions. Supplied with servo horns (servo arms). Connection connector with 2.54 mm pitch (breadboard friendly).
Specifications:
- Supply voltage: 4.8 to 6.0 VDC
- Gearbox, gear material: Metal
- Servo type: Analog
- Operating range: 180°
- Speed (4.8/6.0 Volt): 0.19/0.18 s/60°
- Torque (4.8/6.0 Volt): 9/11 kg·cm
- Form factor / size: Standard size servo

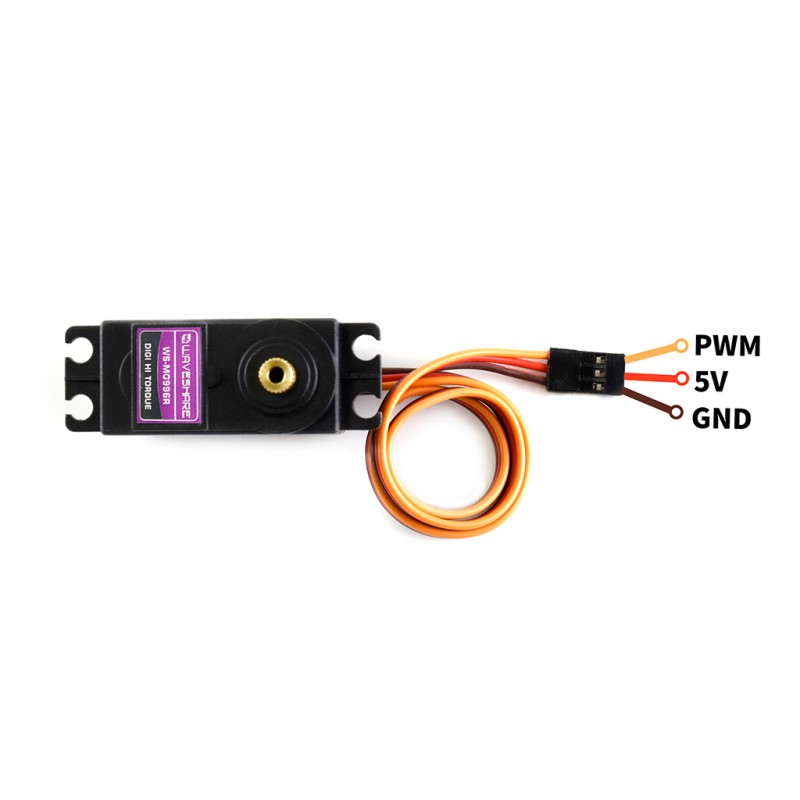

- Connection: 3 pins (power, ground, signal)
- Connector type: JR / Futaba / GWS
- Cable length: 180 mm
- Dimensions: 40.7 x 19.7 x 42.9 mm
- Weight: 55 g
- Model: MG996R
