Product description

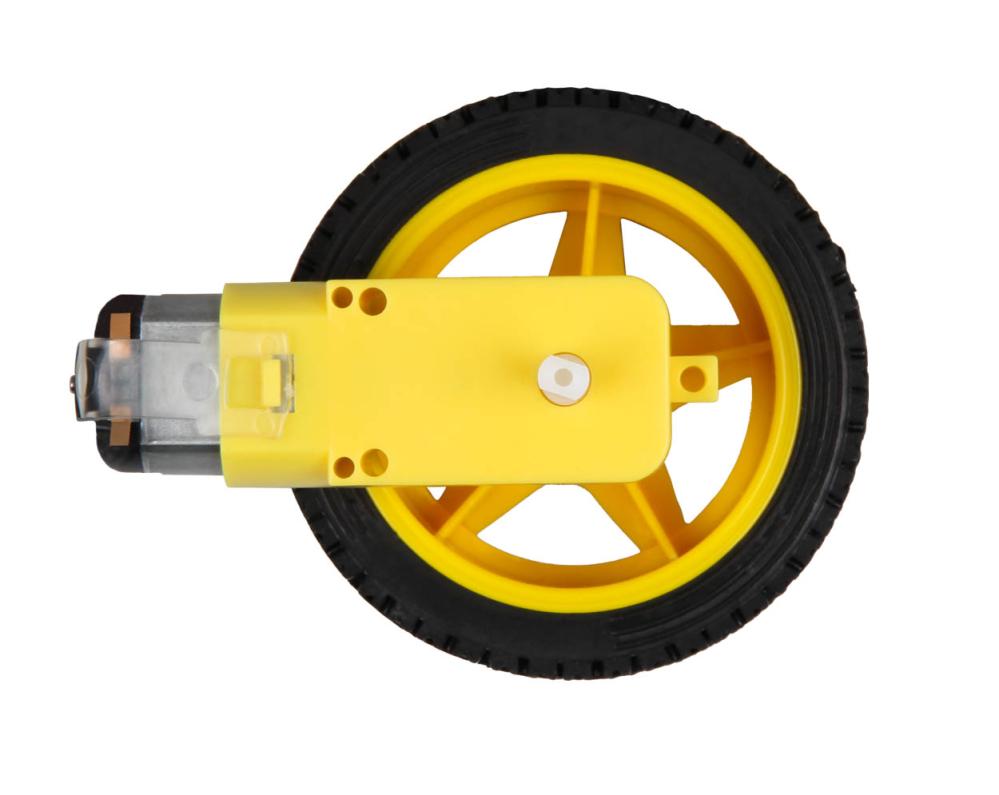

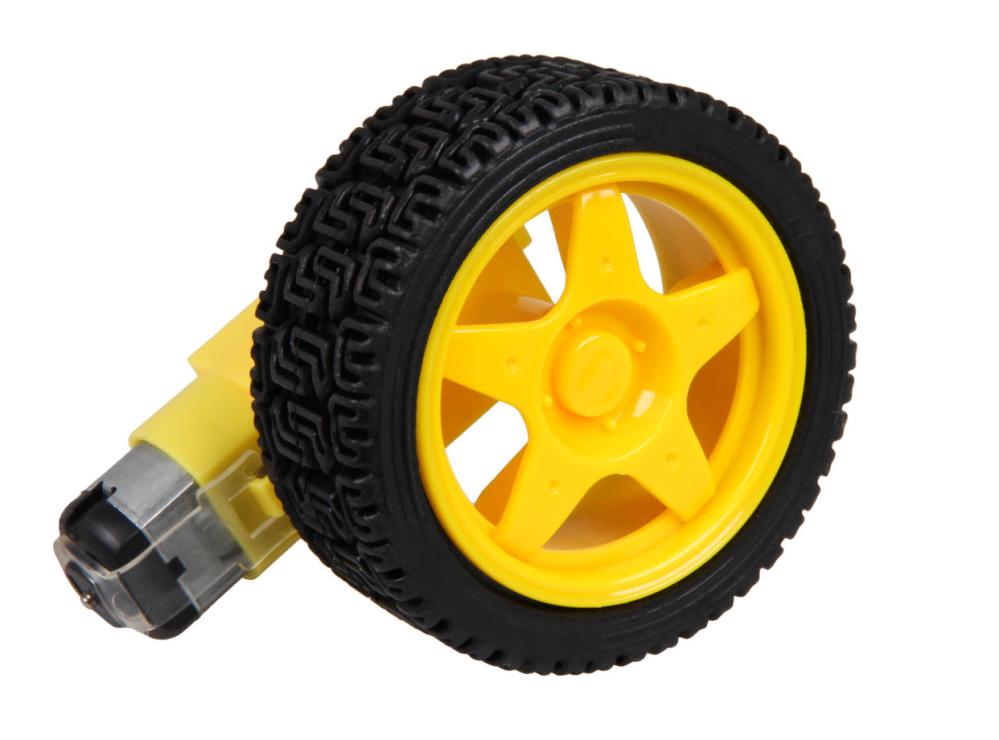

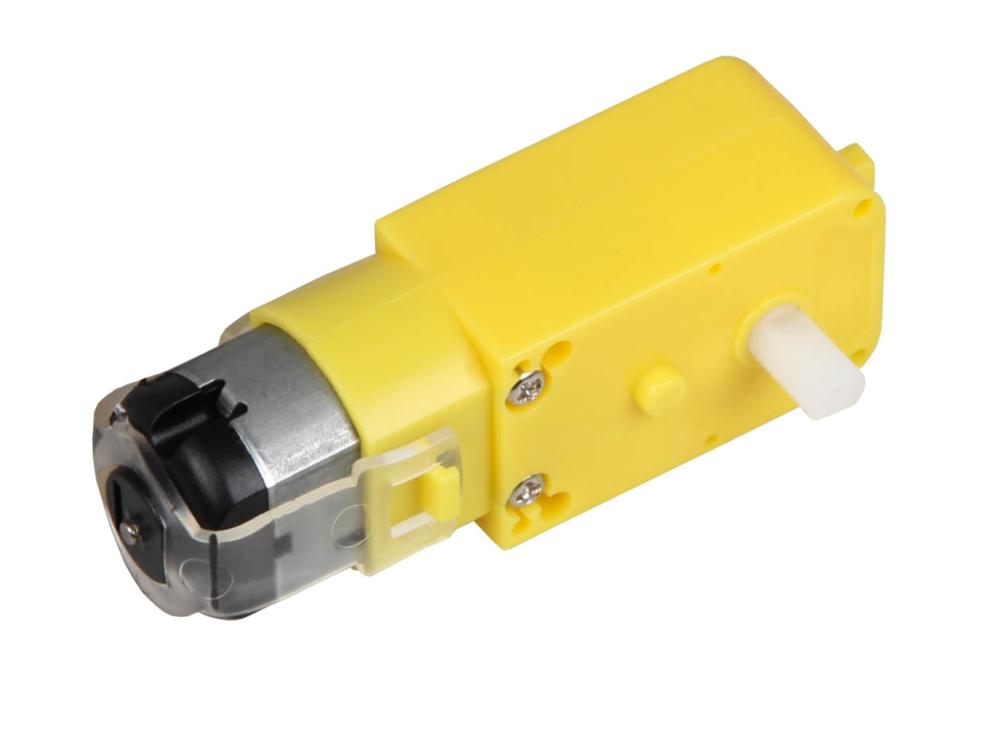

DC motor with gearbox and wheel. Suitable for robotics projects and model building. The integrated gearbox provides higher torque at low to medium speed, making the motor suitable for applications such as robot cars. The motor is supplied with a wheel with rubber tire and rim. The double-sided shaft makes it possible to use one side for drive while the other can be used for example with a rotation sensor (perforated disc) for speed measurement or position detection. The wide supply voltage range makes the motor compatible with many common development platforms and battery solutions.
Specifications:
- Supply voltage: 3–9 V DC (optimal approx. 5 V)
- Current (no-load motor): 160–200 mA depending on supply voltage
- Speed (no-load motor): 90–300 rpm (±10 %) depending on supply voltage
- Torque: 800–1200 gf/cm depending on supply voltage
- Shaft: 3.6 mm double shaft with 1.9 mm opening
- Wheel diameter: 65 mm
- Wheel width: 27 mm
- Motor dimensions: 37.6 × 64.2 × 22.5 mm
- Weight: approx. 58 g
