Product description

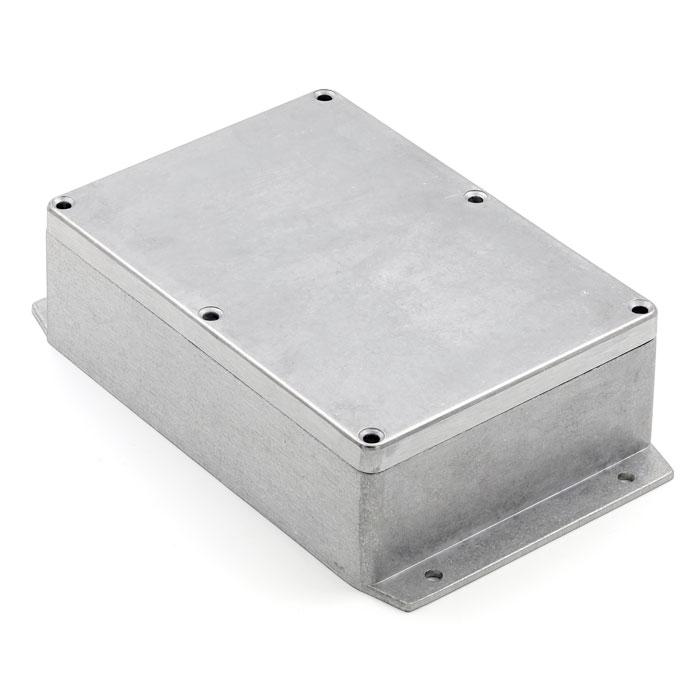

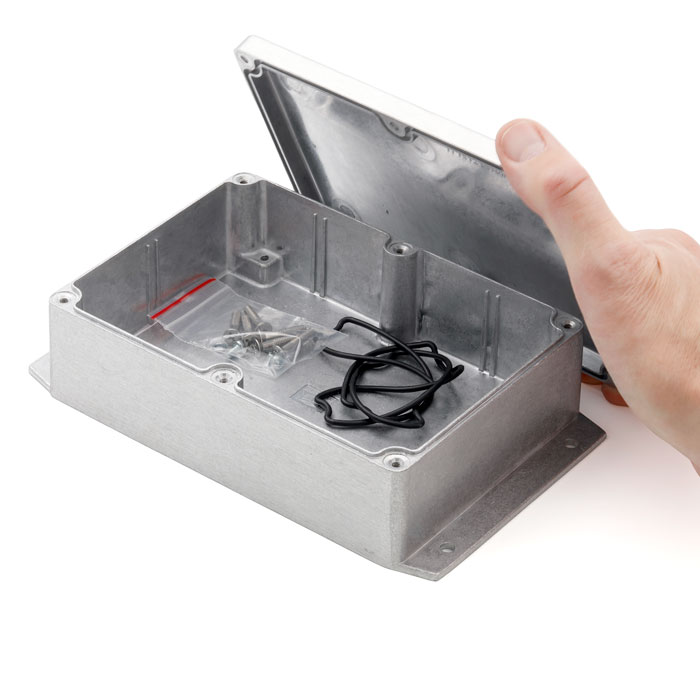

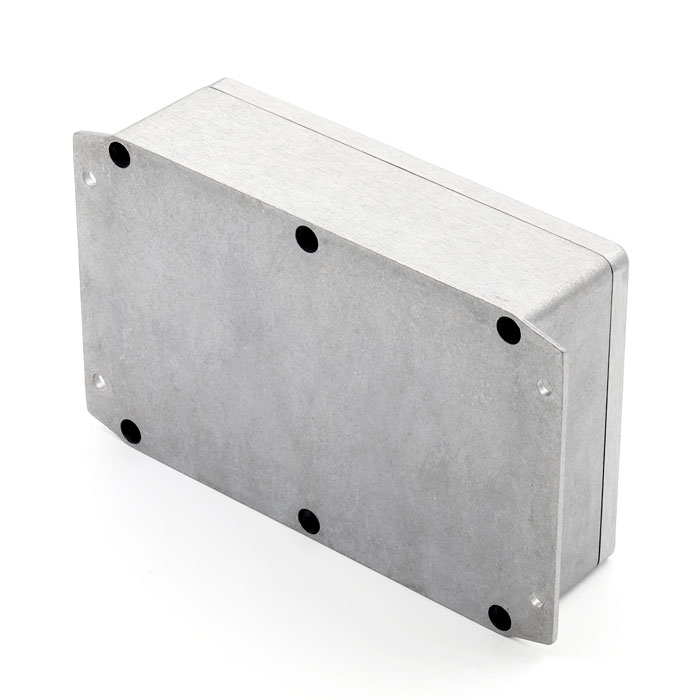

Die-cast aluminium enclosure with integrated mounting flanges for wall mounting or mounting on another surface. With an IP67 rating against dust and moisture. Cast-in screw mounting points on the inside allow horizontal PCB mounting, while cast-in slots allow vertical PCB mounting. Stainless steel cover screws are included. The mounting holes for wall mounting and the cover are located outside the sealed area.
Specifications:
- Manufacturer: Gainta
- Model: G120MF
- Material: Die-cast aluminium
- Color: Natural aluminium
- IP rating: IP67
- Mounting: Wall mounting / flange mounting
- PCB mounting: Horizontal or vertical
- Dimensions: 171 x 121 x 55 mm
