Product description

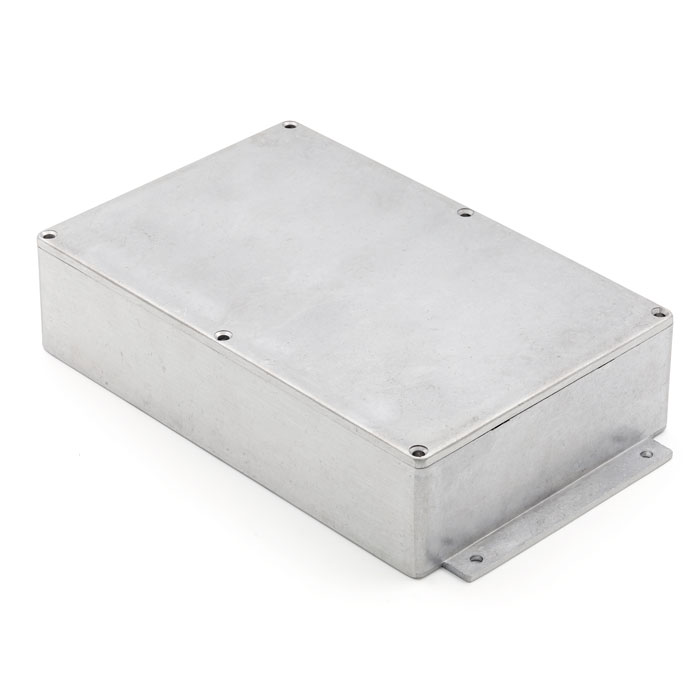

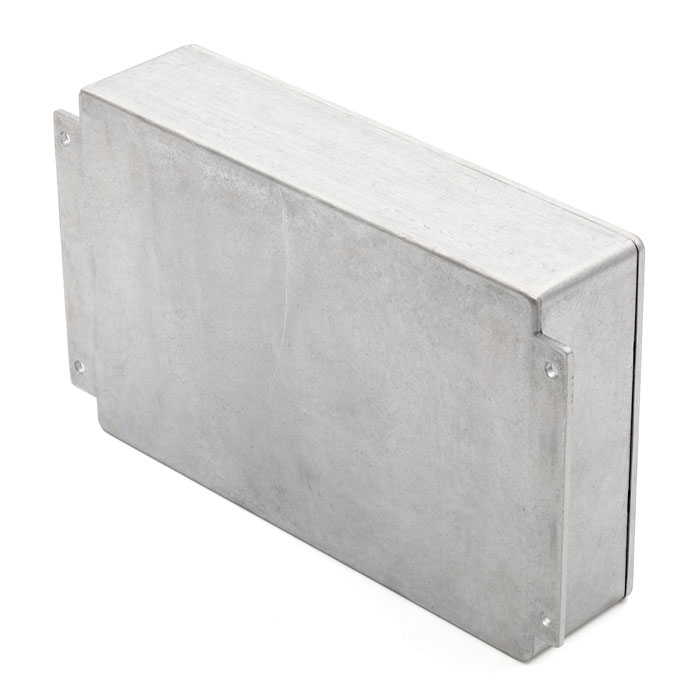

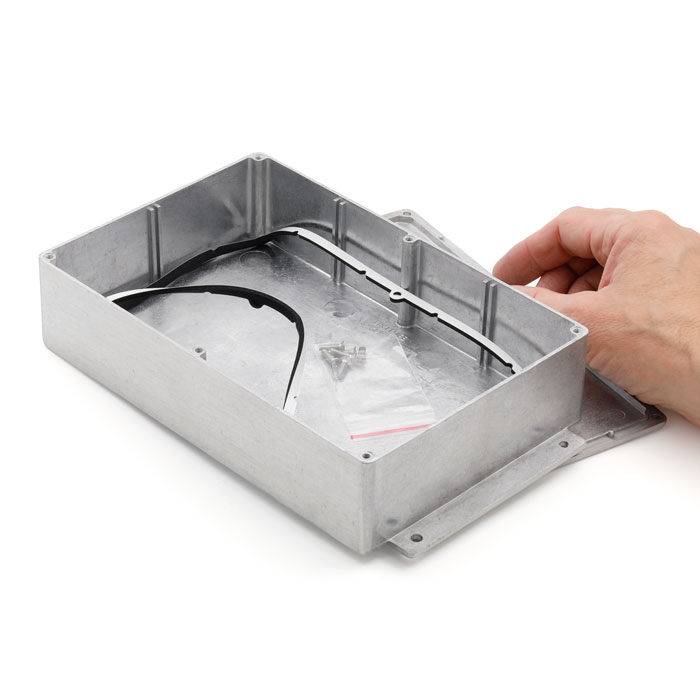

Die-cast aluminum enclosure with mounting flanges for wall mounting or mounting on another surface. Supplied with an additional gasket providing an IP66 rating. The inside of the enclosure features cast-in guides for vertical PCB mounting. Stainless steel lid screws are included.
Specifications:
- Manufacturer: Gainta
- Model: BS11MF
- Type: Gasketed aluminum enclosure with mounting flanges
- Material: Die-cast aluminum
- Color: Natural aluminum
- IP rating: IP66
- PCB mounting: Vertical, cast-in guides
- Enclosure dimensions: 222 x 146 x 55 mm
- Dimensions incl. flanges: 252 x 146 x 55 mm
- Lid screws: Stainless steel, M3.5, countersunk
- Mounting flanges: For wall mounting or mounting on another surface
