Product description

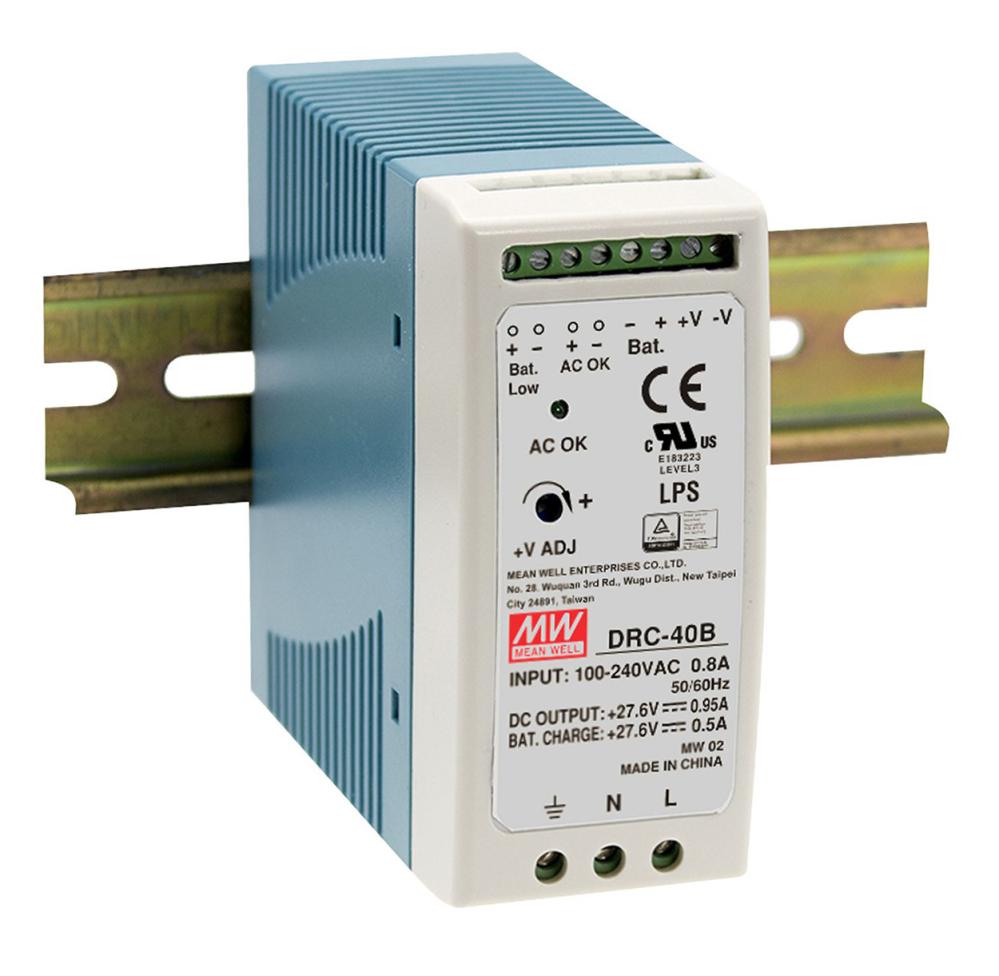

Mean Well DRC-40 is a 40 W power supply with a built-in lead-acid battery charger and UPS function. The charger is designed for lead-based batteries (AGM, GEL, SLA and VRLA). For DIN rail installation. During normal mains operation, the power supply supplies the load while simultaneously charging the battery. In the event of a mains power failure, the battery automatically takes over the power supply to the load.
DRC-40 is intended for applications such as surveillance systems, emergency lighting, alarm systems, DC UPS systems and access control systems. Cooled by natural air convection. With alarm outputs for mains power failure and low battery voltage, can be connected to a microcontroller or other monitoring system.
Specifications:
- Product type: AC/DC power supply with battery charger and UPS function
- Manufacturer: Mean Well, Taiwan
- Model: DRC-40A
- Input voltage: 90–264 VAC
- Output voltage: 13.8 VDC (adjustable 12–15 V)
- Output current: 1.9 A
- For battery type: 12 V AGM, lead-acid, GEL, SLA and VRLA
- Battery charging: 13.8V (max 1 A)
- Rated power: 40 W
- Efficiency: 86%
- Ripple and noise: max. 120 mV p-p
- Battery monitor (battery cut-off): 10 ±0.5 V
- Battery alarm: <11 V
- AC OK output: Open collector, max. 50 V / 30 mA
- Battery Low output: Open collector, max. 50 V / 30 mA
- Protection against: Short circuit, overload and overvoltage
- Battery protection: Undervoltage cut-off and reverse polarity protection via fuse
- Operating temperature: -30 to +70 °C
- Mounting: DIN rail
- Dimensions: 40 × 90 × 100 mm
- Weight: 0.3 kg
- Safety: CE, TÜV, BS, EN 62368-1
For complete specifications, see datasheet.
