Product description

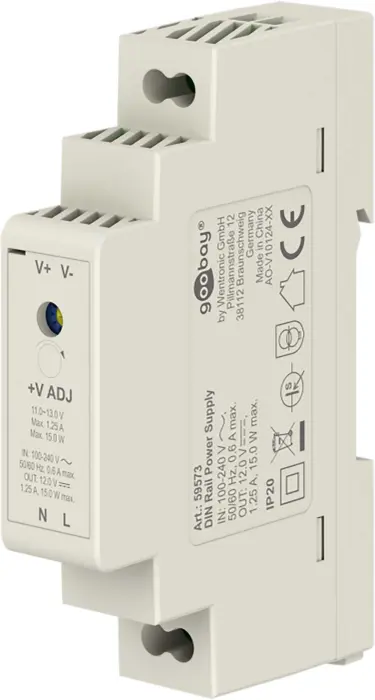

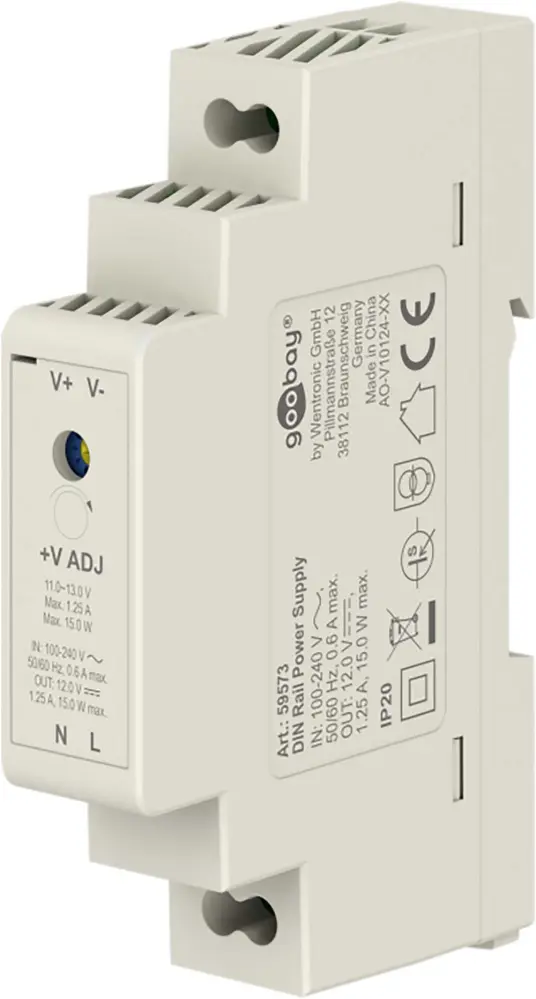

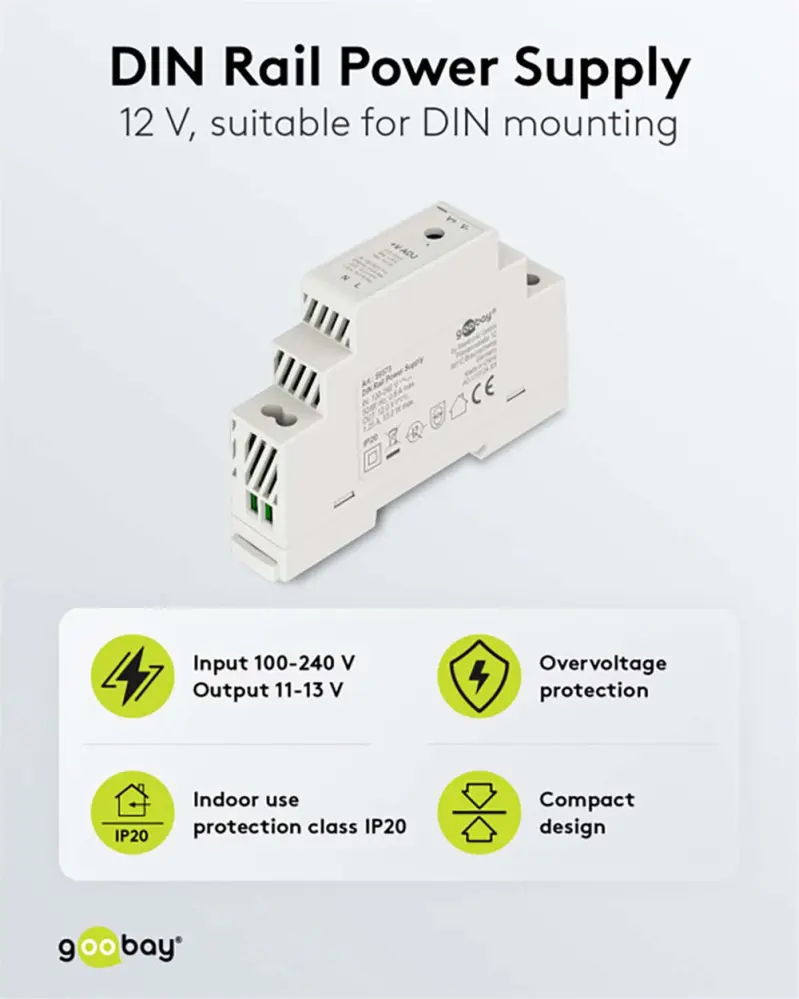

12V 1.25A 15W adjustable switched mode power supply for DIN rail. Built-in protection against overvoltage,short circuit and overload. LED indicator stays permanently on during operation.
Specifications:
Adjustable voltage: 11-13V (DC)
Power: 15W
Current: 1.25A (max)
Minimum load: 0W
Max ripple: 120mVpp

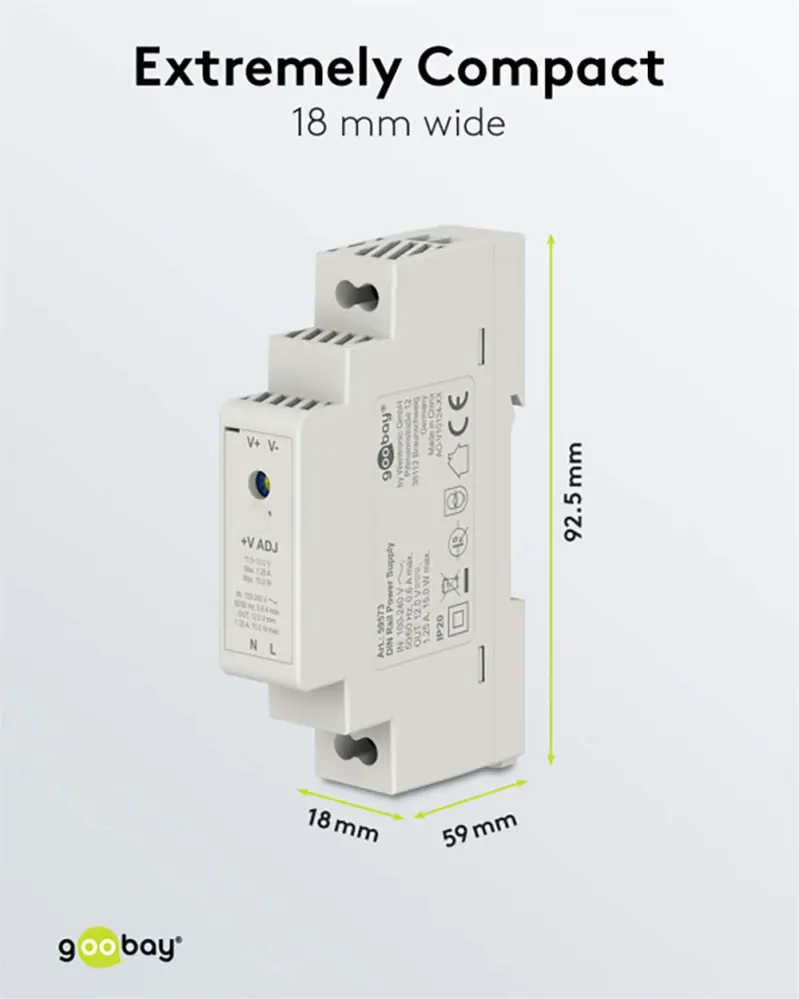

Dimensions: 18x92.5x59 mm
Weight: 71.5g
Inpud voltage range: 100-240V (AC)
Power in standby mode: 0.2W
Protection class: IP20
Input connection: 2x 0.2-3.3 mm2, screw terminal
Output connection: 2x 0.2-3.3 mm2, screw terminal
Markings: WEEE, CE, bauartgepruft: TUV Rheinland
Operating temperature: -10 to 40 degrees C
