Product description

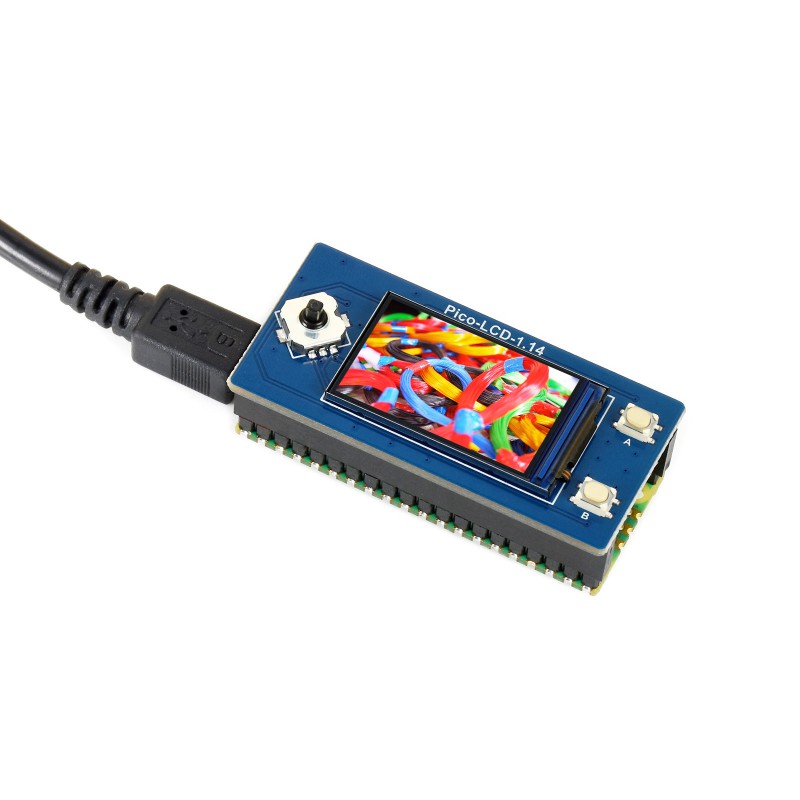

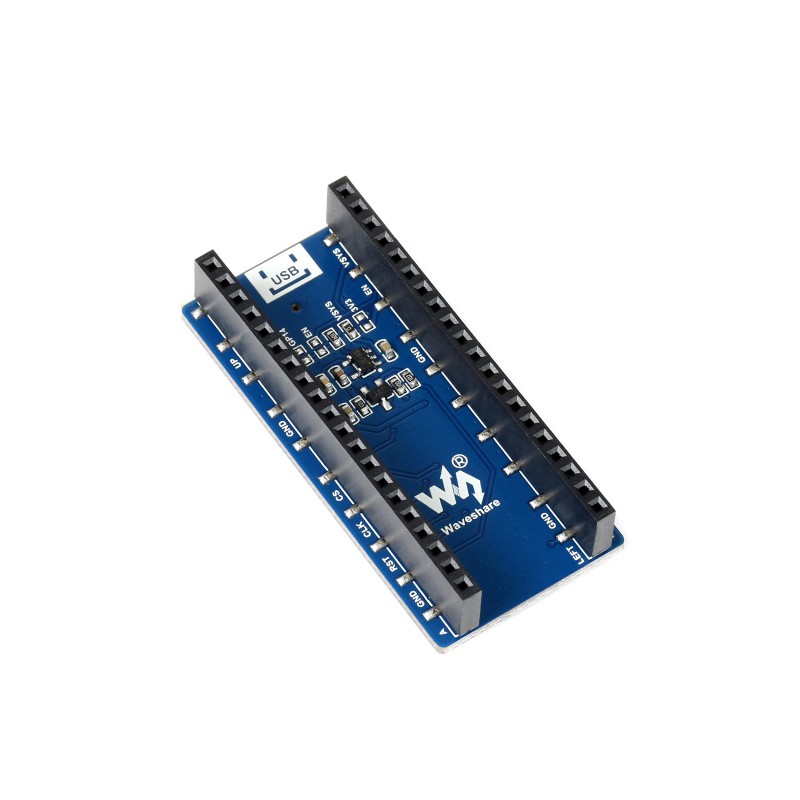

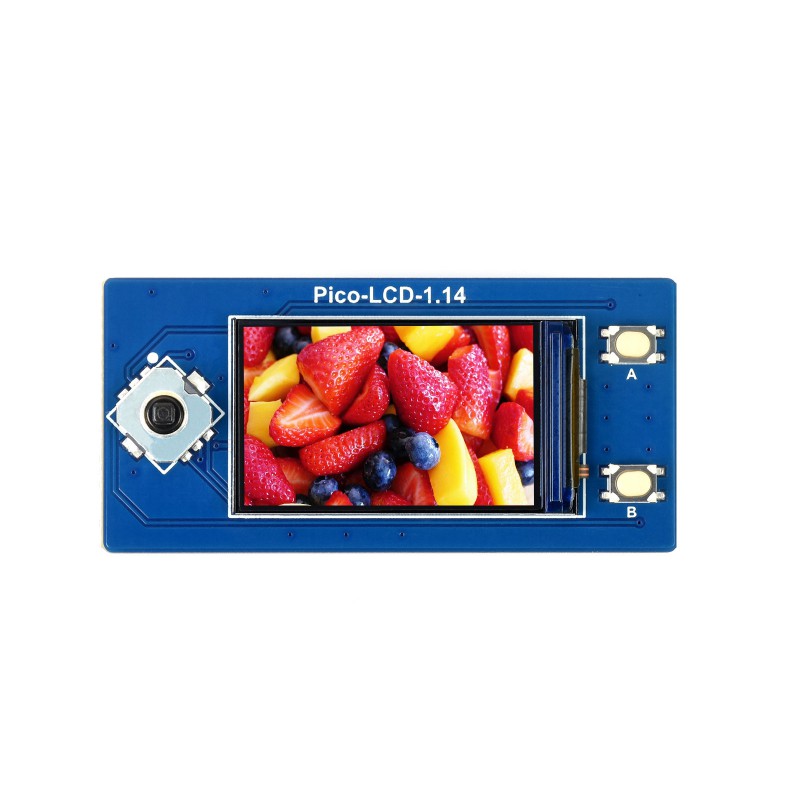

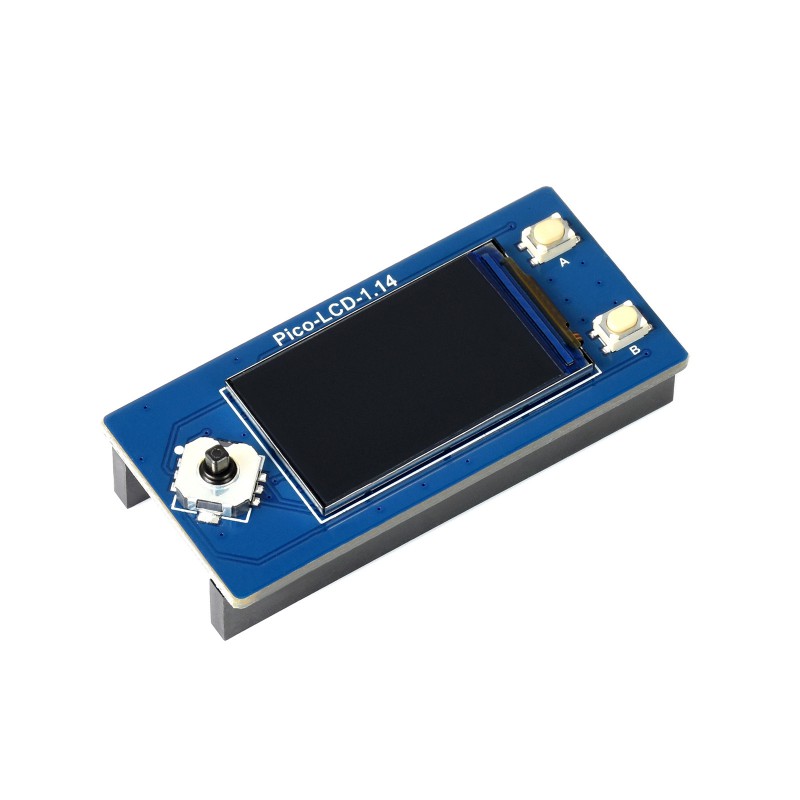

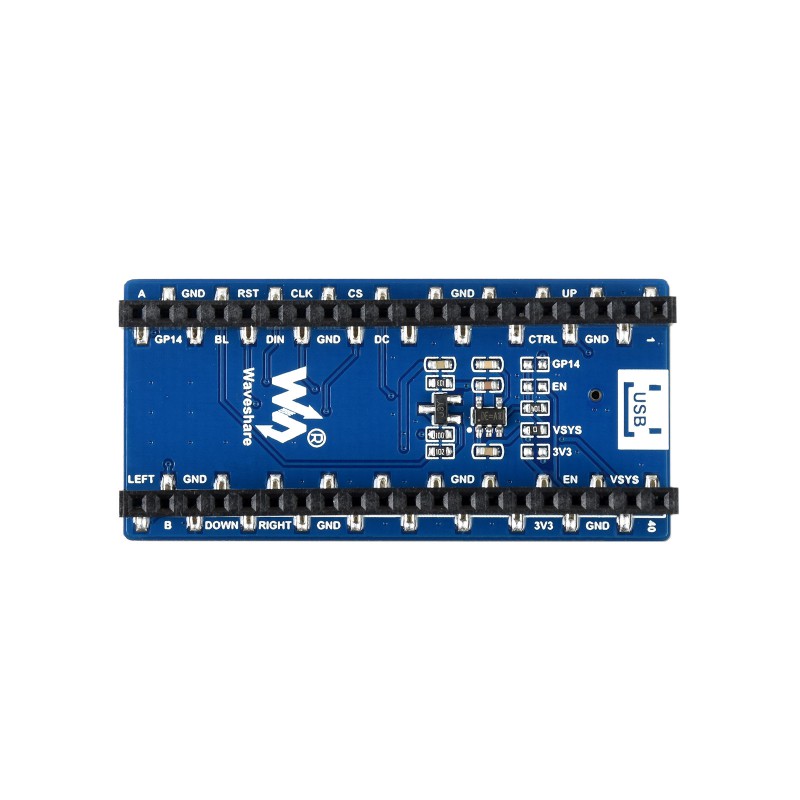

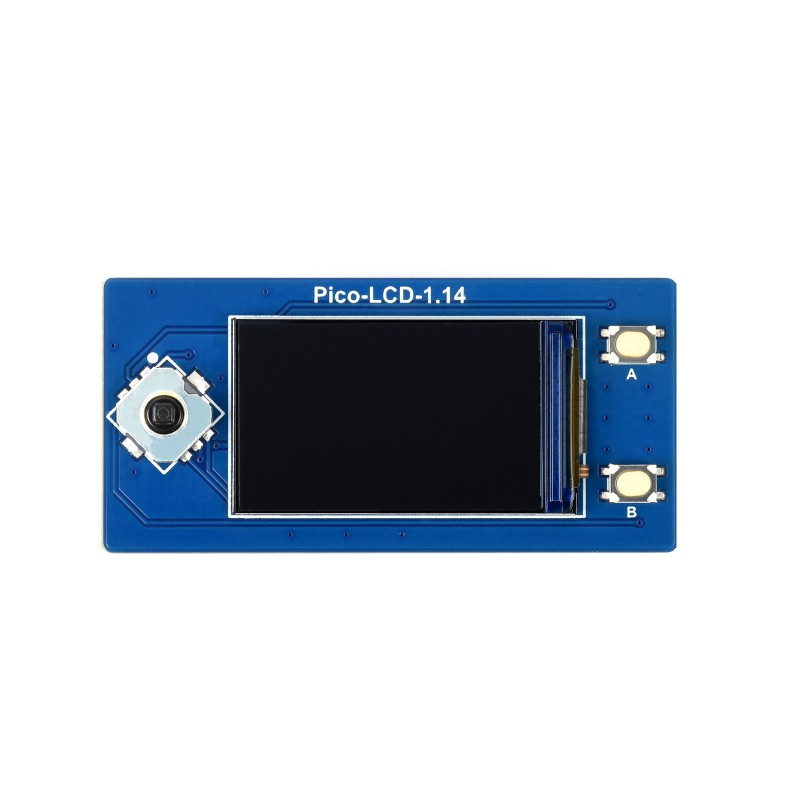

Pico-LCD-1.14 is a display module developed for Raspberry Pi Pico, intended for projects where a clear user interface is required. The module connects directly to the Pico via pin headers and uses an SPI interface. The display features a 1.14-inch IPS panel with a resolution of 240 × 135 pixels and support for 65,000 colors, providing high contrast and good readability even for small graphical elements. The integrated ST7789 controller handles graphics efficiently and enables fast content updates.
The module is equipped with a joystick and two user buttons, making it easy to create menus, navigation, or interactive functions.
With available examples for both C/C++ and MicroPython, development can be started immediately, making the module suitable for dashboards, IoT devices, and portable systems.
Specifications:
- Display type: IPS TFT LCD
- Size: 1.14 inch
- Resolution: 240 × 135 pixels
- Colors: 65K RGB
- Controller: ST7789
- Interface: 4-wire SPI
- Supply voltage: 2.6 - 5.5 V (from Raspberry Pi Pico or USB-C connection)
- Active area: 24.91 × 14.86 mm
- Module dimensions: 52 × 25 mm
- Input: 1 joystick + 2 user buttons
- Compatibility: Raspberry Pi Pico
- Other: Example code for C/C++ and MicroPython
