Arduino Nicla Vision

Art nr: 41019048
Handla denna produkt Arduino Nicla Vision
pris 1 375 SEK
Inklusive 25% moms
Lagervara, 5 st
Enhet: styck

10 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

Nicla Vision allows you to build your next smart project. Ever wanted an automated house? Or a smart garden? Well, now it's easy with the Arduino IoT Cloud compatible boards. It means: you can connect devices, visualize data, control and share your projects from anywhere in the world. Whether you're a beginner or a pro, we have a wide range of plans to make sure you get the features you need.

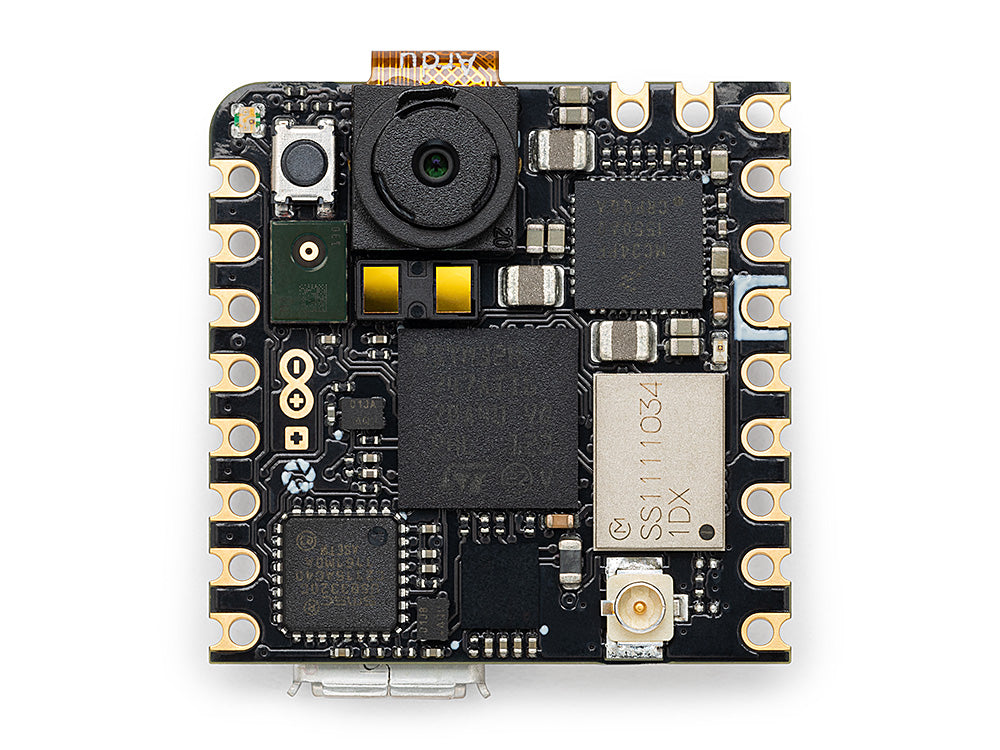

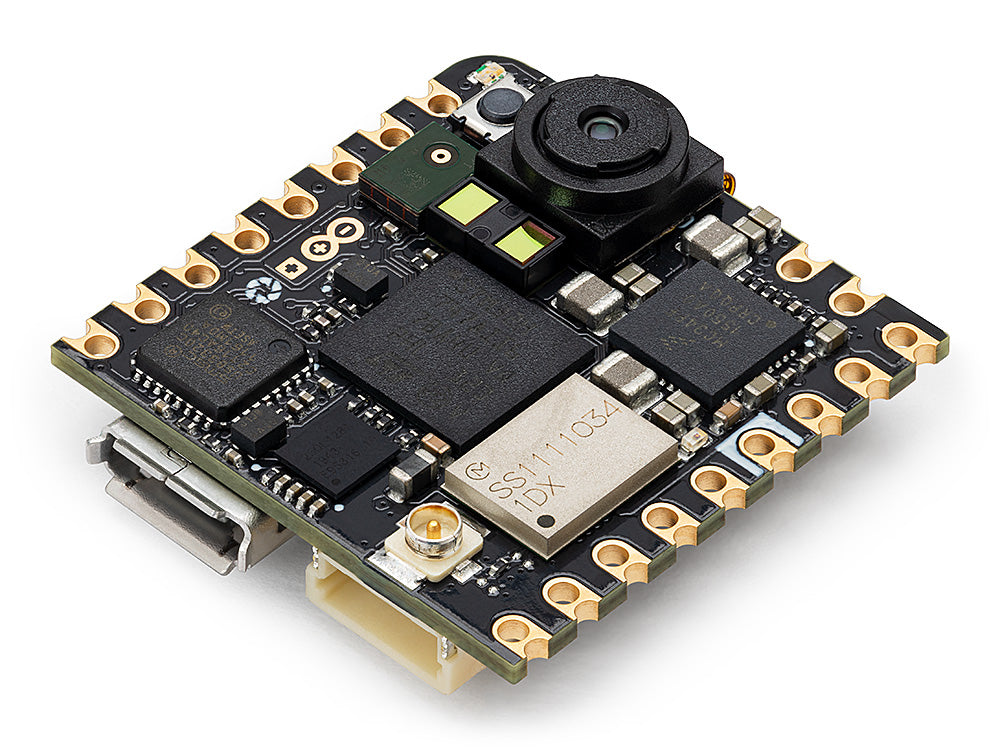

Nicla Vision combines a powerful STM32H747AII6 Dual ARM® Cortex® M7/M4 IC processor with a 2MP color camera that supports TinyML, as well as a smart 6-axis motion sensor, integrated microphone and distance sensor.
You can easily include it into any project because it's designed to be compatible with all Arduino Portenta and MKR products, fully integrates with OpenMV, supports MicroPython and also offers both WiFi and Bluetooth® Low Energy connectivity. It's so compact - with its 22.86 x 22.86 mm form factor - it can physically fit into most scenarios, and requires so little energy it can be powered by battery for standalone applications.
All of this makes Nicla Vision the ideal solution to develop or prototype with on-device image processing and machine vision at the edge, for asset tracking, object recognition, predictive maintenance and more - easier and faster than ever. Train it to spot details, so you can focus on the big picture.

Key benefits include:

* Tiny form factor of 22.86 x 22.86 mm
* Powerful processor to host intelligence on the edge
* Packed with a 2MP color camera that supports TinyML, smart 6-axis motion sensor, microphone and distance sensor
* Wi-Fi and Bluetooth® Low Energy connectivity
* Supports MicroPython
* Standalone when battery powered
* Expand existing project with sensing capabilities, make MV prototyping faster
* Automate anything
* Check every product is labeled before it leaves the production line; unlock doors only for authorized personnel, and only if they are wearing PPE correctly; use AI to train Nicla Vision to regularly check analog meters and beam readings to the Cloud; teach it to recognize thirsty crops and turn the irrigation on when needed.
* Anytime you need to act or make a decision depending on what you see, let Nicla Vision watch, decide and act for you.

Tech specs:

* STM32H747AII6 Dual Arm® Cortex® M7/M4 IC:
- 1x Arm® Cortex® M7 core up to 480 MHz
- 1x Arm® Cortex® M4 core up to 240 MHz
* Sensors:
- 2 MP Color Camera
- 6-Axis IMU (LSM6DSOX)
- Distance / Time Of Flight sensor (VL53L1CBV0FY/1)
- Microphone (MP34DT05)
* I/O:
- 1x I2C bus (with ESLOV connector), JTAG, Power and GPIO pin headers
- 1x serial port
- 1x SPI
- 2x ADC
- Programmable I/O voltage from 1.8-3.3V
* Power:
- High speed USB (480Mbps)
- Pin Header
- 3.7V Li-po battery with Integrated battery charger and fuel gauge (MAX17262REWL) * Dimensions: 22.86 mm x 22.86 mm
* Memory: - 2MB Flash / 1MB RAM - 16MB QSPI Flash for storage * Security: NXP SE050C2 Crypto chip
* Connectivity: Wi-Fi / Bluetooth® Low Energy 4.2
* Interface: USB interface with debug functionality
* Operating temperature: -20° C to +70° C (-4° F to 158°F)

Egenskaper

Egenskaper/attribut för denna produkt
Attribut Värde
Formfaktor
Nicla
