Utvecklingskort STM32H750

Art nr: 41019153
Handla denna produkt Utvecklingskort STM32H750
pris 995 SEK
Inklusive 25% moms
Lagervara, 1 st
Enhet: styck

10 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

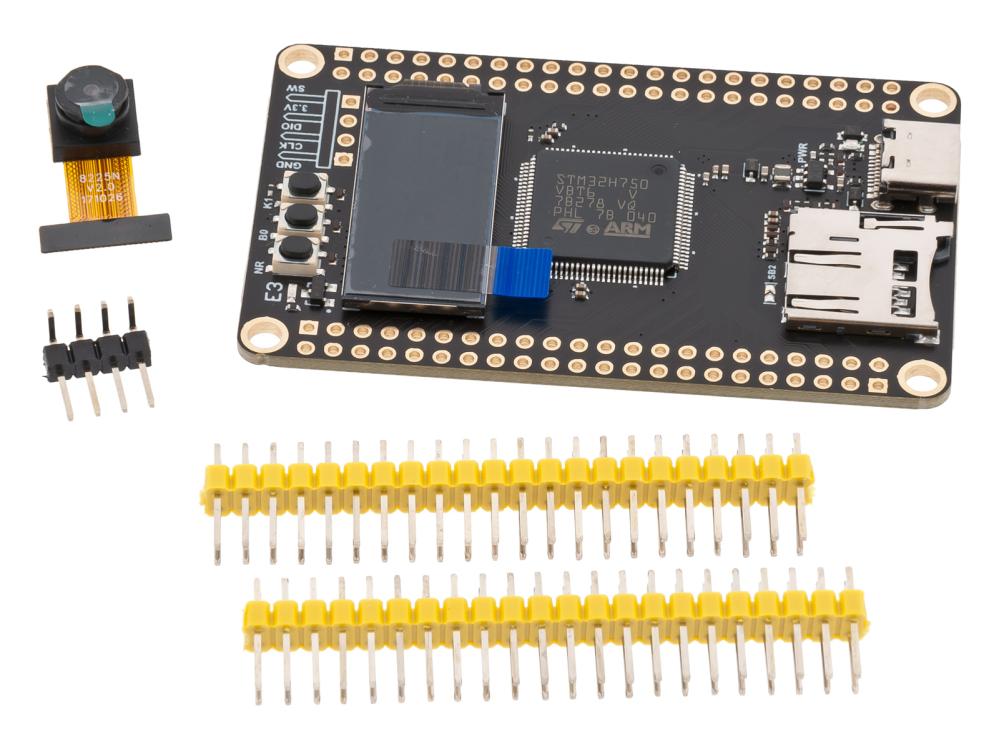

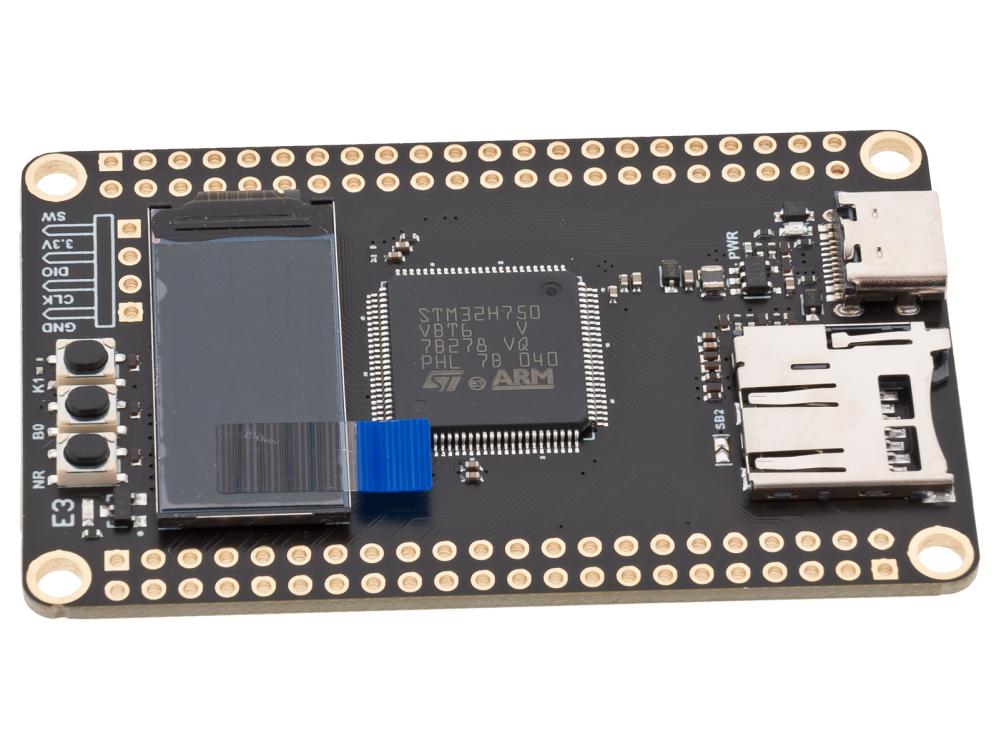

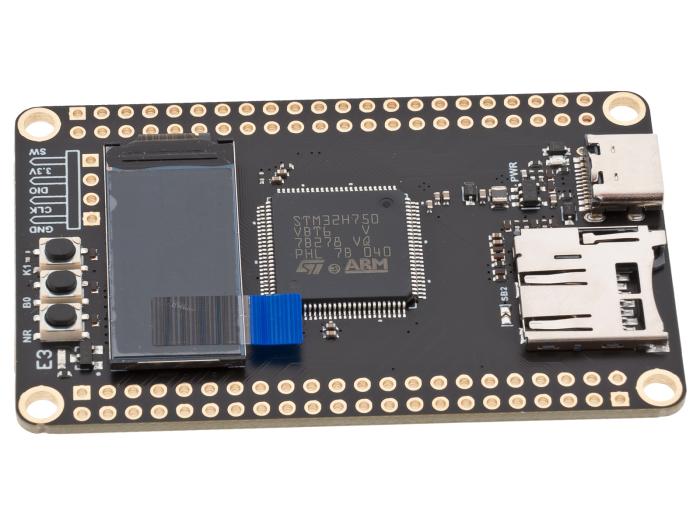

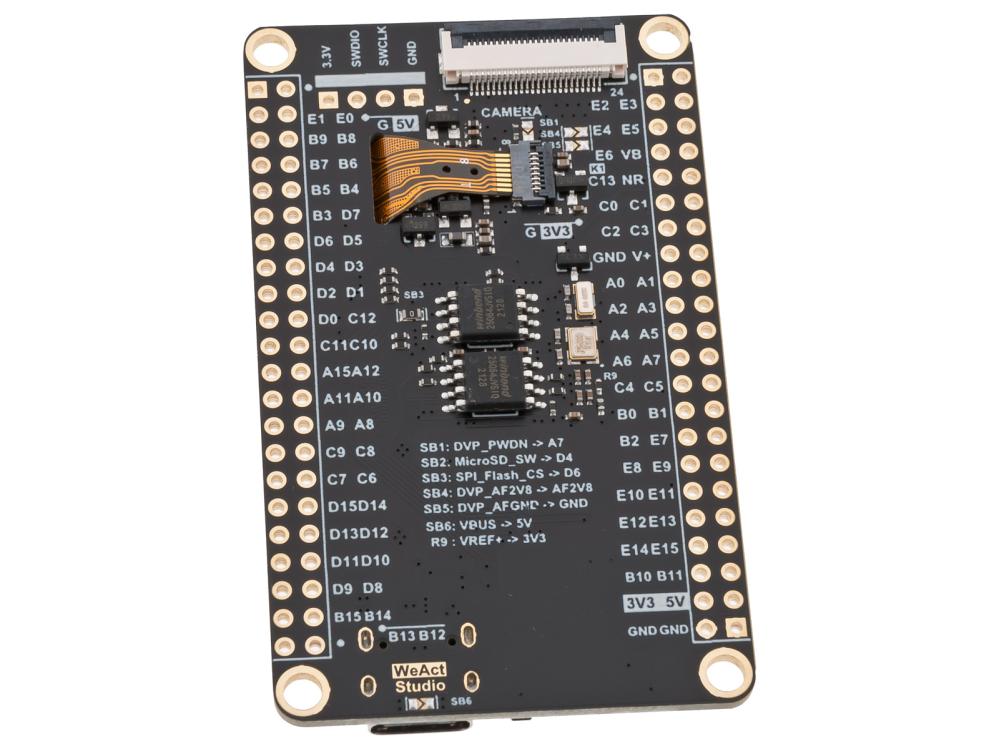

This simple development board for the STM32H750 is a great way to add a powerful STM chip to your next project. Featuring the STM32H750VBT6, this chip has 1024KB of RAM, 8MB of QSPI Flash, and runs at 480 MHz.
This dev board is not designed or developed by Adafruit. It's for advanced users who are already familiar with STM32 development! We don't have detailed tutorial usage for it - check online communities for STM32 boards to get project ideas and code samples!

The board features:

USB C connector
8 MB SPI chip (for storage)
8 MB QSPI memory (for program/flash)
0.96" SPI TFT display
SWD debug/programming breakout (requires an external STLink compatible programmer)
GPIO breakouts
MicroSD slot

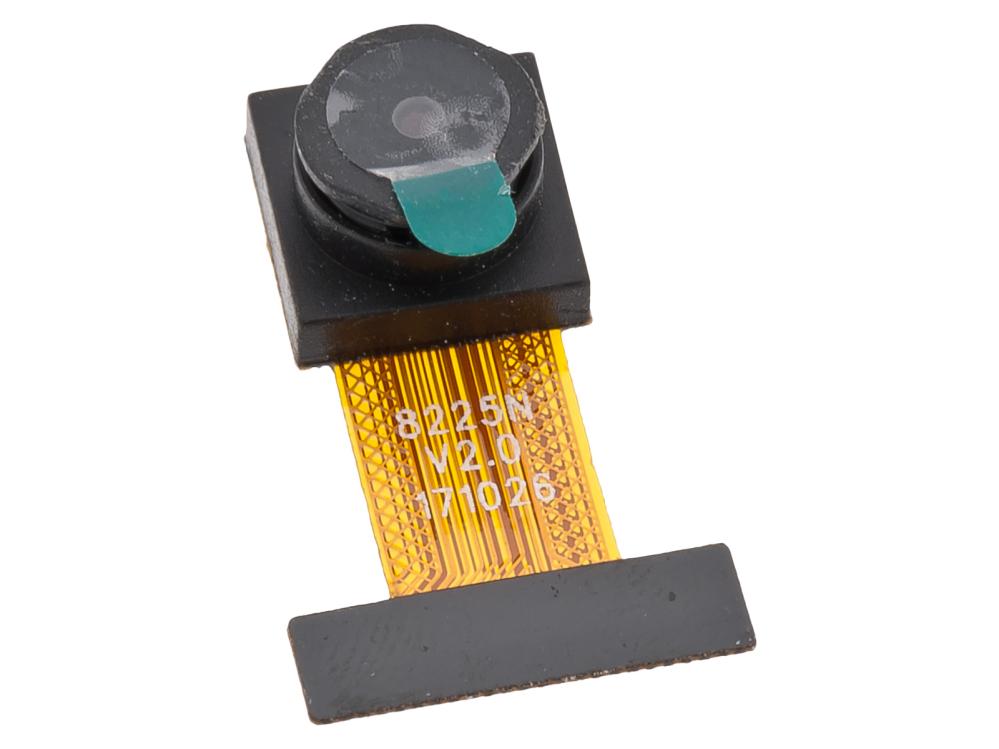

OV2640 camera module
Tactile Switches: NR (reset) button, a B0 (DFU bootloader) button, and a K1 (User) button.
STM32H750VBT6 480Mhz, 128KB ROM, 1MB RAM
ARM Cortex M7 Architecture with FPU floating point unit, complete DSP instruction and memory protection unit MPU
8 MB SPI chip (for storage)
8 MB QSPI memory (for program/flash)
Gold-plated, 4 layer PCB, RoHS process
User, BOOT0/DFU & reset buttons
USB C interface, Micro SD card, 3 buttons, DCMI camera interface, with 1.5V and 2.8V power supply
Unofficial Support for OpenMV4 development

Produktinformation

  • SKU:

    41019153
