Produktbeskrivning

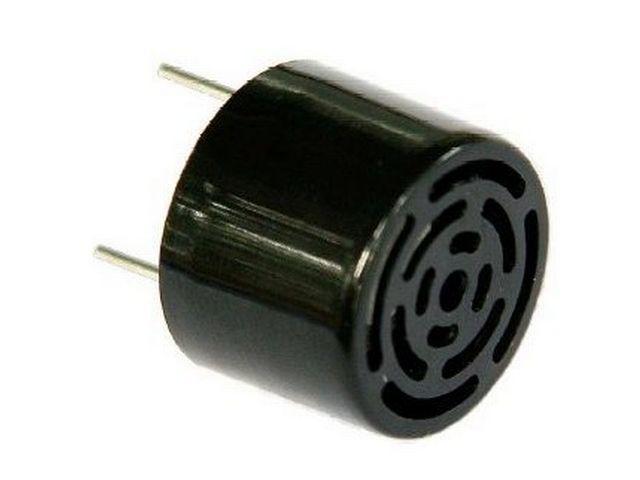

This is the small transducer element found on the fantastically easy to use sensors from Maxbotix. You can use this transducer for various embedded applications where ultrasonic waves are needed (a solid-state anemometer for example).
Features:
* 38Khz to 42kHz ultrasonic transducer
* Sensitivity: -60dB
* Impedance: 1kOhm
* Ringing: Less than 1mS
* Capacitance: 2400pF
* Drive Voltage: 20V RMS
* Temp Range: -40 to 65C
Features:
* 38Khz to 42kHz ultrasonic transducer
* Sensitivity: -60dB
* Impedance: 1kOhm
* Ringing: Less than 1mS
* Capacitance: 2400pF
* Drive Voltage: 20V RMS
* Temp Range: -40 to 65C
