Totem Sensor Side Panel

Art nr: 41018681 - Totem
Handla denna produkt Totem Sensor Side Panel
pris 369 SEK
Inklusive 25% moms
Lagervara, 1 st
Enhet: styck

10 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

A helpful sidekick for your lab projects:

* Microphone
* 128×64 OLED display
* DHT11 humidity sensor
* NTC thermistor
* Piezo electric buzzer
* DC motor driver module

The Sensor Side Panel is designed to use with the Totem Mini Lab and Totem Micro Lab.


Side panels are meant to bring easy access to commonly used components that are difficult to wire on breadboards due to their dimensions, or require additional equipment to operate them. Side panels give a plug and play interface that lets users to concentrate on experiments or learning, rather than spending time solving issues on how to interface with the part.

Get more information in Documentation and Showcase.

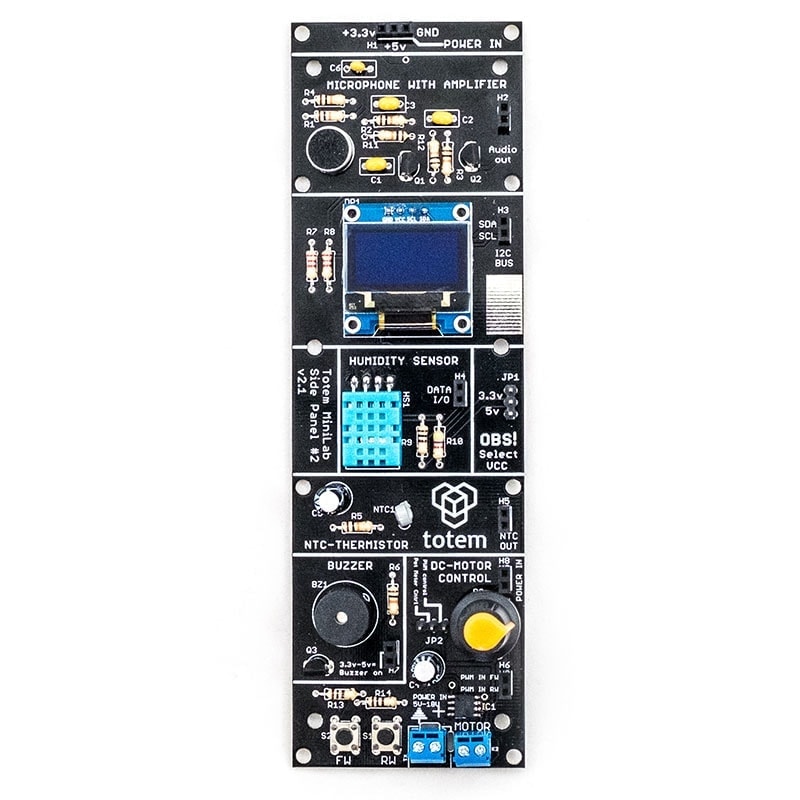

Side panel includes:

* Microphone - standard ready to use audio frequency
microphone module with built in preamplifier.

* 128×64 OLED display- monochrome graphical screen
controlled via I2C interface. Uses SSD1306 chip as a
driver.

* DHT11 humidity sensor - digital composite sensor
capable of measuring temperature and humidity. Uses
single-wire serial interface for communication.

* NTC thermistor - a simple 10k thermistor that in the
module works as a voltage divider, useful for making
temperature sensors.

* Piezoelectric buzzer - beeper module with integrated
transistor driver. Produces sound when high level signal
is applied.

* DC motor driver module - an h-bridge motor driver
with integrated protections.

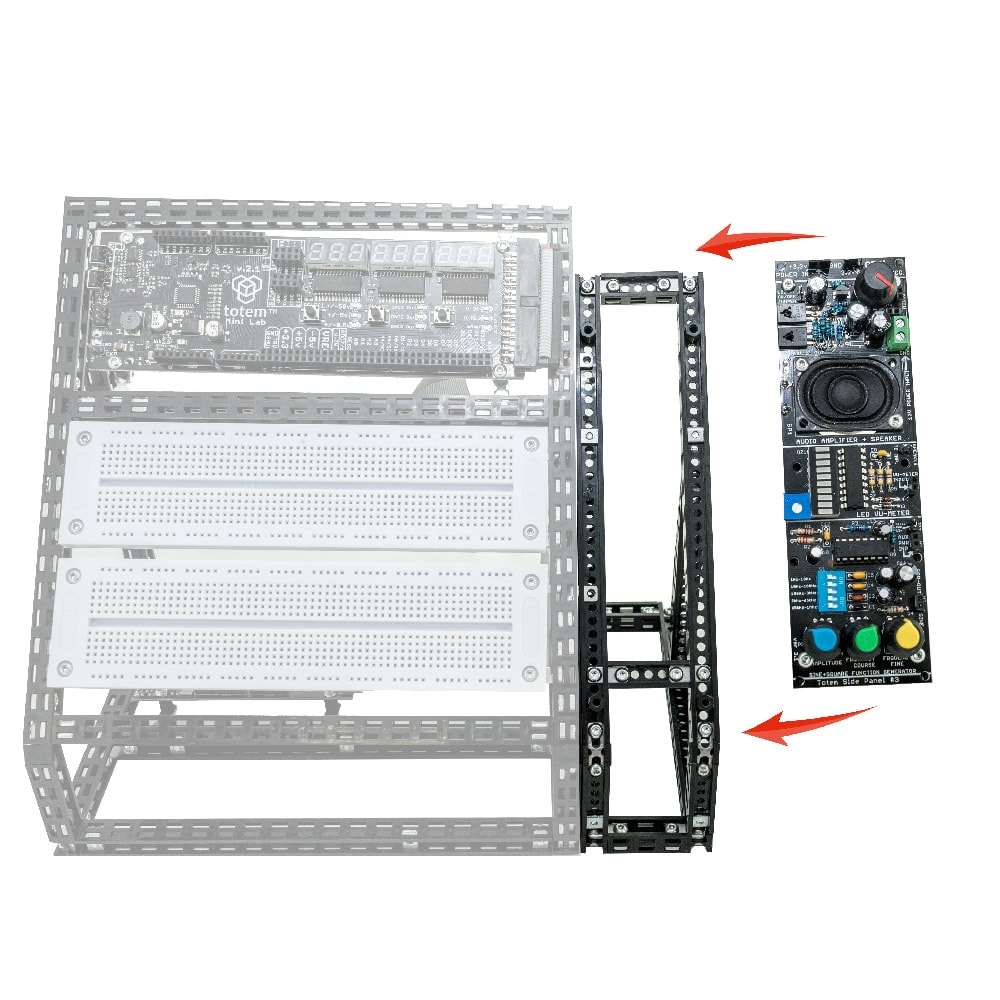

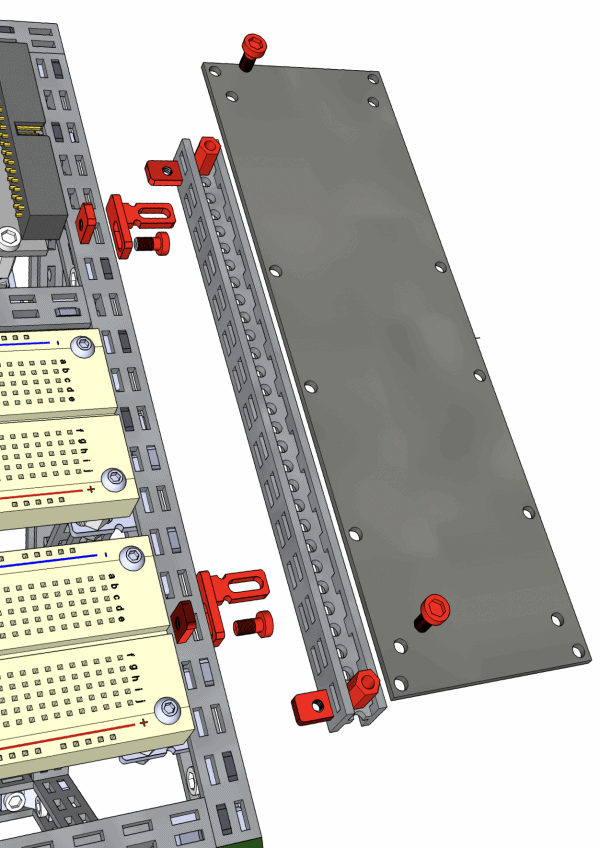

Attaching to the Mini Lab Frame:
The Kit includes all ready-to-use mechanical parts and tools to fix side panel on the Mini Lab frame.
Fixes elegantly to the Labs sides.
You can easily have several panels attached to your Mini Lab at the same time.

Produktinformation

  • SKU:

    41018681
