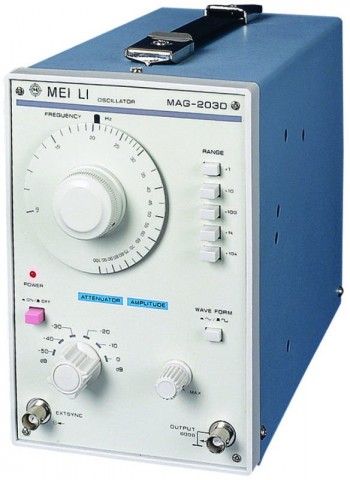

Tongenerator 10Hz-1MHz MAG-203D

Signal generator,model MAG-203D
Oscillation frequency x1 range: 10Hz to 100Hz
x10 range: 100Hz to 1KHz
x100 range: 1KHz to 10KHz
x1K range: 10KHz to 100KHz
x10K range: 100KHz to 1MHz
Frequency accuracy +/-3% +1Hz
Output impedance 600O
Output attenuator 0dB, 10dB, 20dB, 30dB, 40dB, 60dB
(6 ranges for selection)
(with an accuracy of +/-1dB under a load of 600O)
Characteristics of sine wave
Output voltage R5Vrms
Frequency response 10Hz to 1MHz: +/-0.5dB
Distortion 400Hz to 20KHz: =0.1%
100Hz to 100KHz: =0.3%
(100Hz: x10 range)
50Hz to 200KHz: =0.5%
20Hz to 500KHz: =1%
10Hz to 1MHz: =1.5%
Characteristics of square wave
Output voltage =10VP-P
Rise/down time 200ns (at maximum output)
Duty ratio 45:55 (1KHz, at maximum output)
Synchronizing range =1% Vrms
Input voltage 15V (DC+AC peak value)
Nominal operation
temperature/humidity 10ºC to 35ºC/within 85%RH
Power supply 220V/110V +/-10%; 50Hz/60Hz
Dimensions 128(W) x 190(H) x 239(D) mm
