Produktbeskrivning

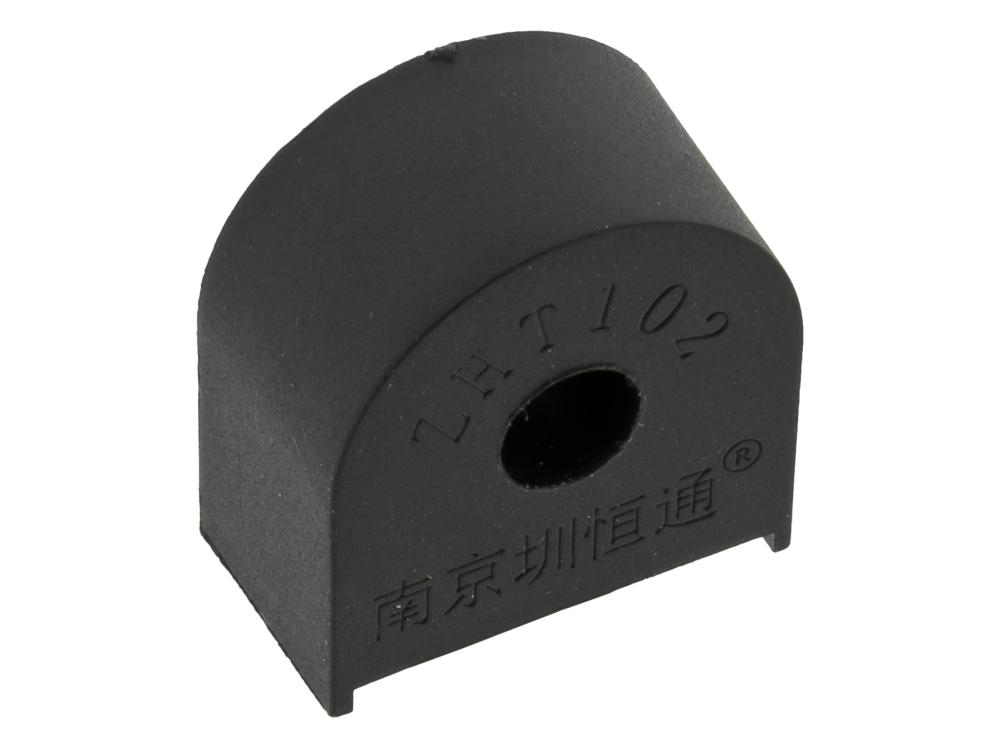

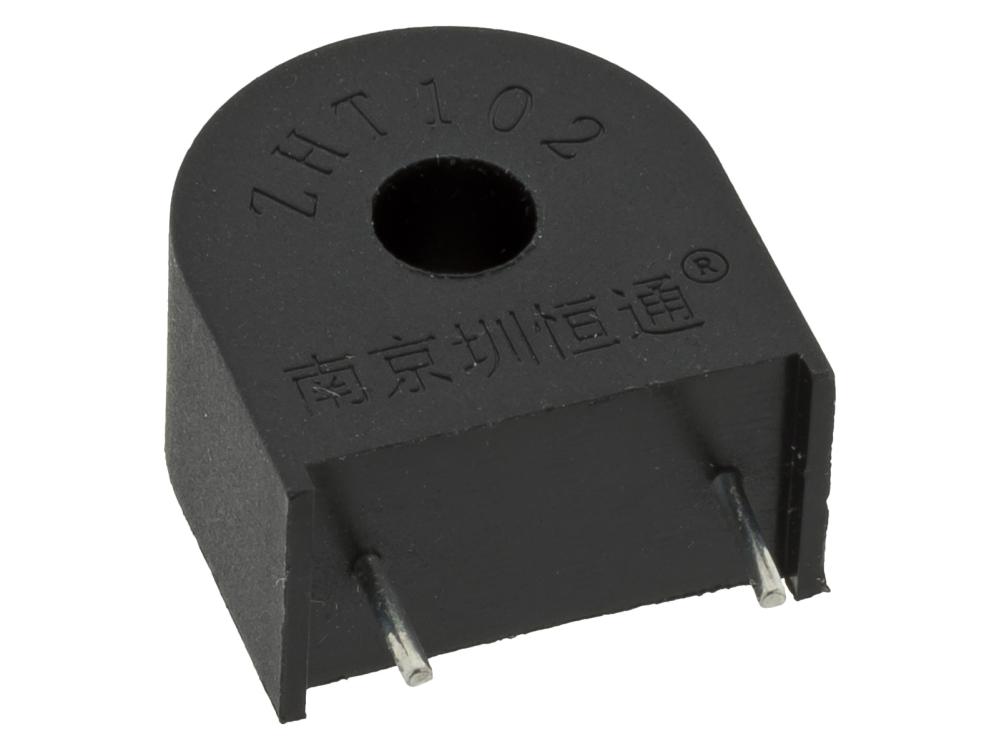

The ZHT102 series is a precision current transformer designed for accurate AC current measurement and monitoring. It provides stable performance with high consistency and is suitable for energy meters, transmitters and current monitoring devices. Fully encapsulated design ensures strong insulation and resistance to interference, making it reliable even in demanding environments.
-
Current ratio 2000:1
-
Rated input current 5A
-
Rated output current 2.5mA
-
Rated load 100Ω
-
Linearity range 0–20A
-
Isolation withstand voltage 3200V/min
-
Insulation resistance 1000MΩ @ 500V/min
-
Operating temperature -35°C to 75°C
-
Storage temperature -40°C to 80°C
-
Frequency range 0.02–10kHz
