Produktbeskrivning

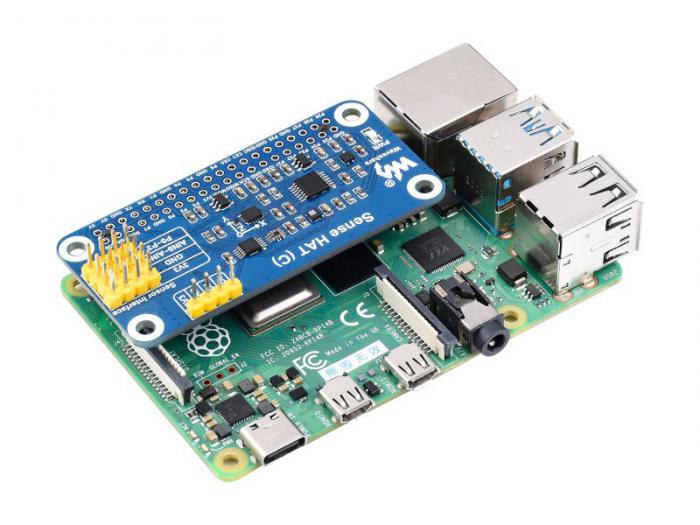

Trying to make the Pi become a robot that can detect movement and orientation? Or using the Pi to collect environmental temperature, humidity, and barometric pressure data? This HAT would be your ideal choice.

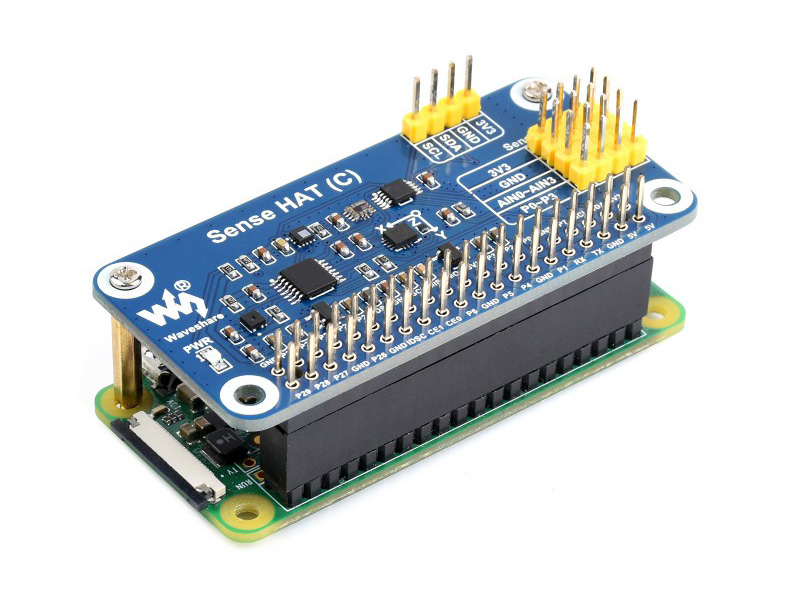

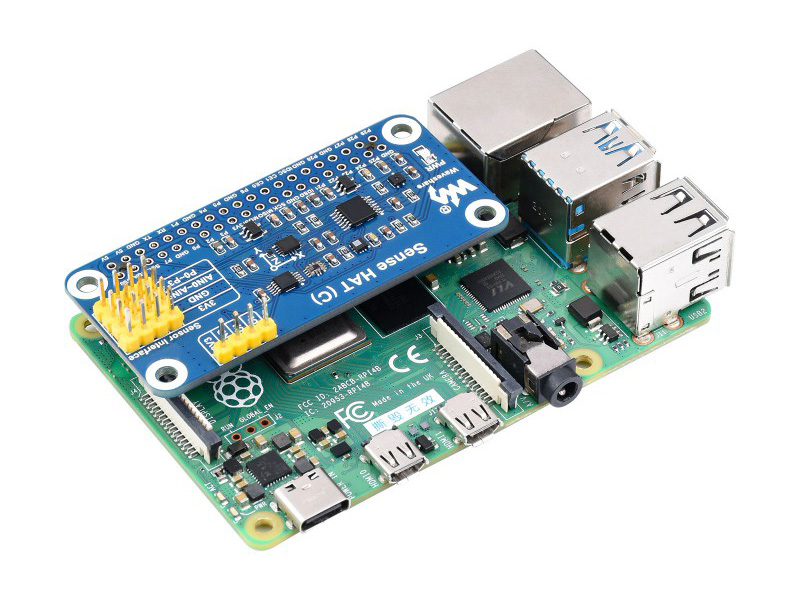

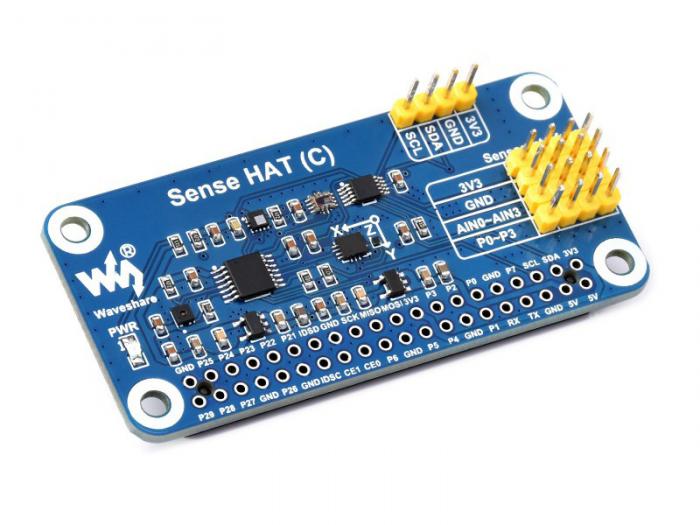

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

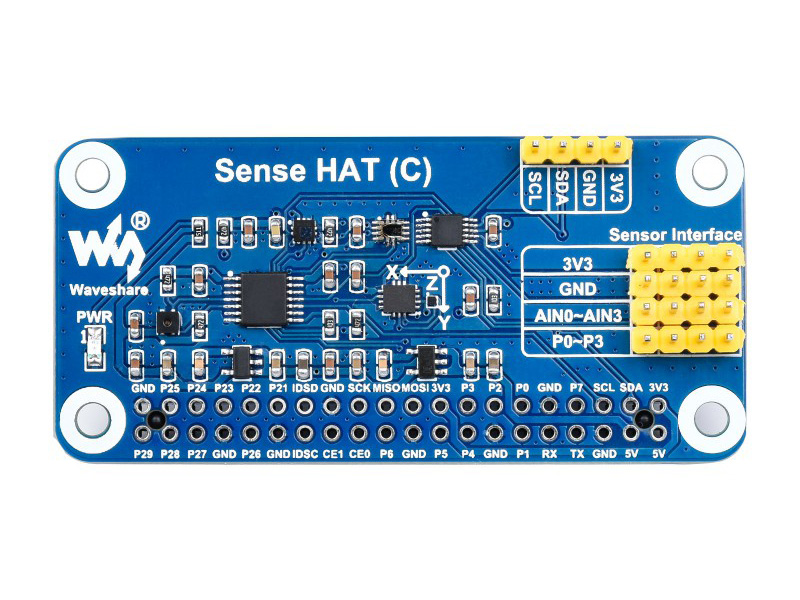

- Onboard QMI8658C+AK09918 (3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer), detects movement, orientation, and magnetic
- Onboard SHTC3 digital temperature and humidity sensor, allows monitoring the environment
- Onboard LPS22HB barometric pressure sensor, allows monitoring the environment
- Onboard TCS34725 color sensor, identifies the color of nearby object
- Onboard SGM58031, 4-ch 16-bit precision ADC, AD expansion to support more external sensors

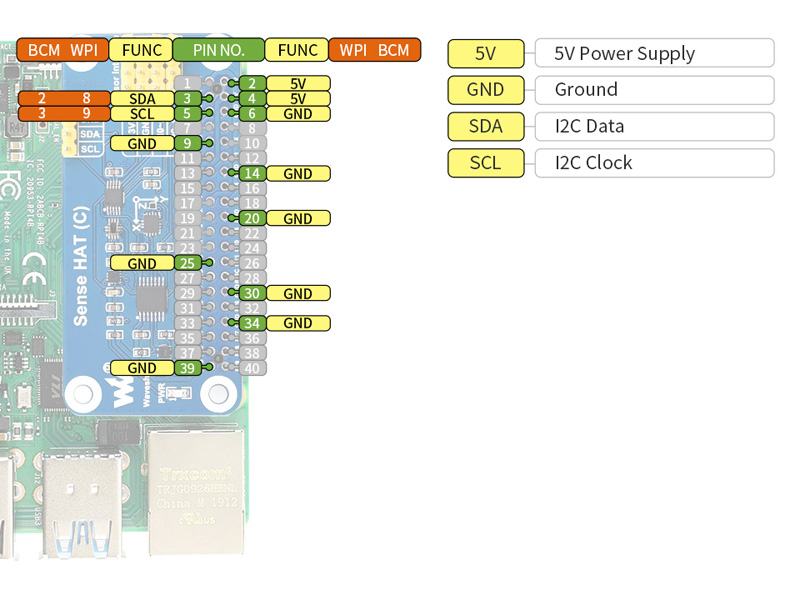

- Brings I2C control pins, for connecting other host boards like STM32
- Comes with development resources and manual (examples for Raspberry Pi/STM32)
