Produktbeskrivning

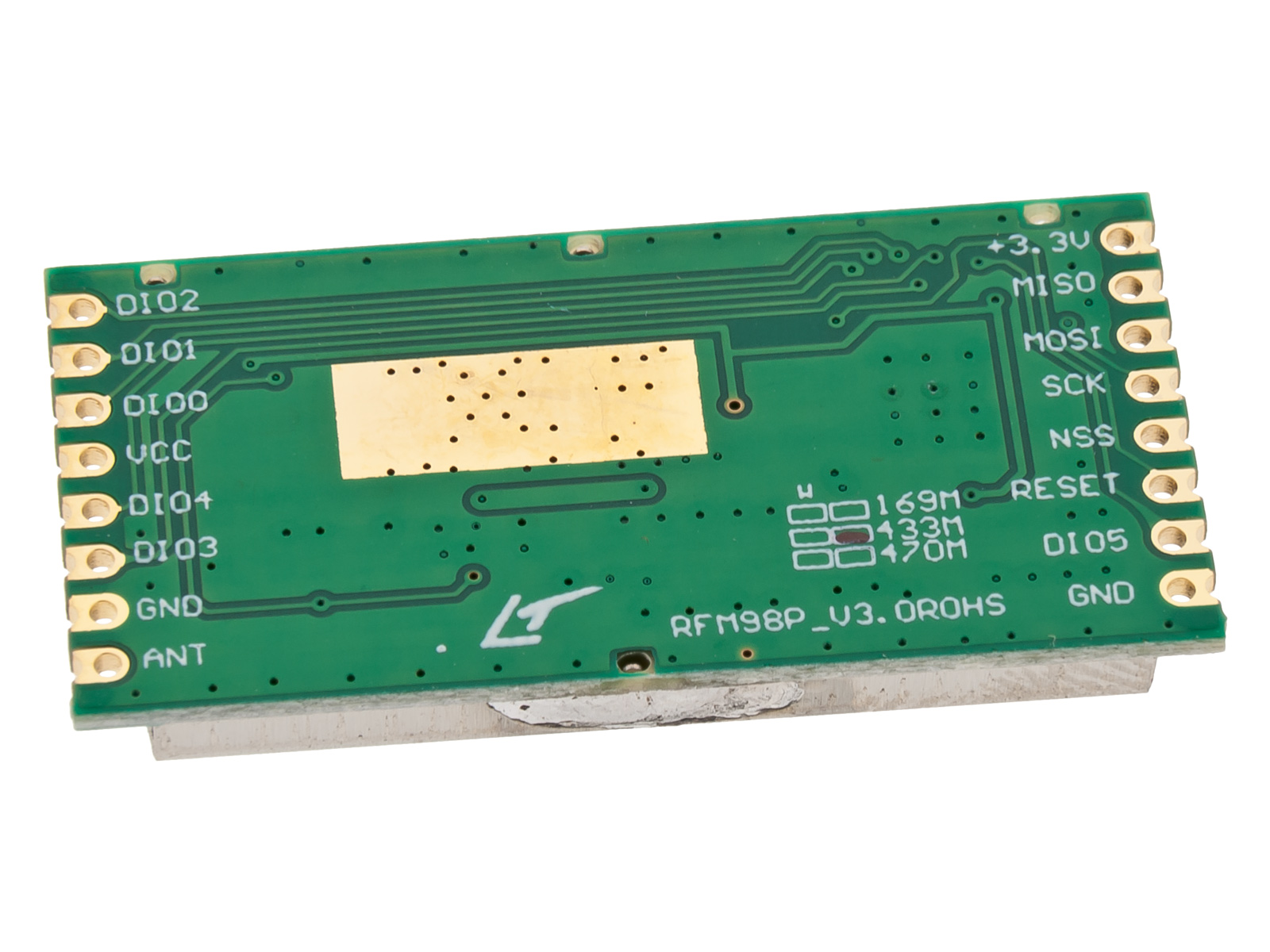

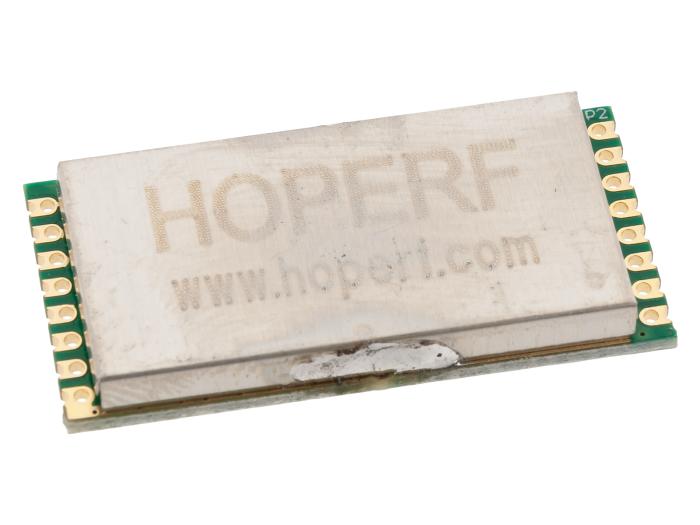

RFM98PW module design is based on the high performance LoRaTM modulation technique RF98 chip. It operates at 433MHz ISM band. The low receive sensitivity (-136dBm) coupled with enhanced +30dBm output power ensures extended range and improved link performance.
* LoRaTM Modem.
* 166dB maximum link budget.
* +30 dBm output power @433MHz band
* Programmable bit rate up to 300 kbps.
* High sensitivity: down to -136dBm.
* Low RX current of 13mA.
* FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
* Built-in bit synchronizer for clock recovery.
* Automatic RF Sense and CAD with ultra-fast AFC.
* Packet engine up to 256 bytes with CRC.
* Built-in temperature sensor and low battery indicator.
* SMD Package (35.4x18X3.85mm)
