Produktbeskrivning

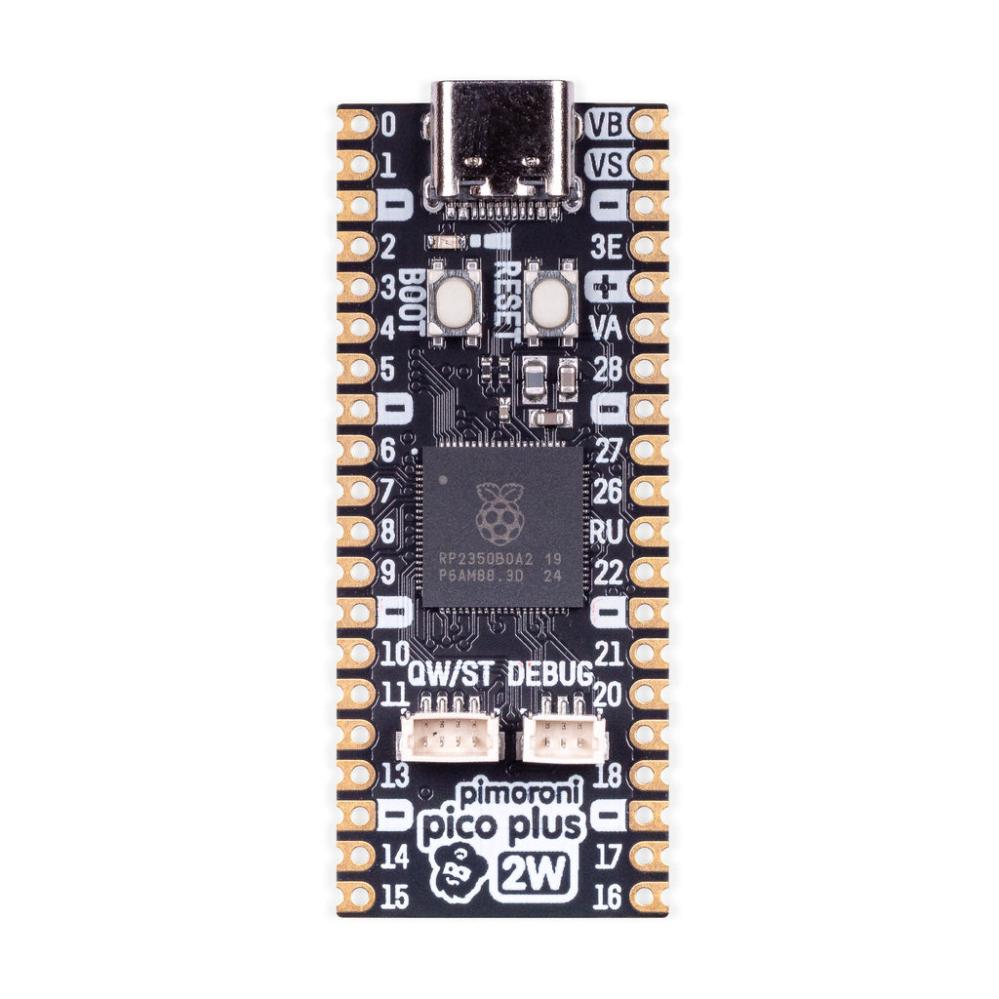

Pimoroni Pico Plus 2 W is powered and programmable via USB-C and comes with an upgraded 8MB RAM, 16MB of flash storage and easy to read pin labels. The 'W' version is also equipped with a Raspberry Pi RM2 module, which gives it 2.4 GHz wireless and Bluetooth connectivity, woohaa!
It's super easy to connect up to things without soldering, with a Qwiic/STEMMA QT connector (for adding I2C sensors and breakouts) and a debug connector (for if you like to program using a SWD debugger). We've also added a reset button, and a BOOT button - this can also be used as a user switch.
Features
- Powered by the RP2350B (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
- 16MB of QSPI flash supporting XiP
- 8MB of PSRAM

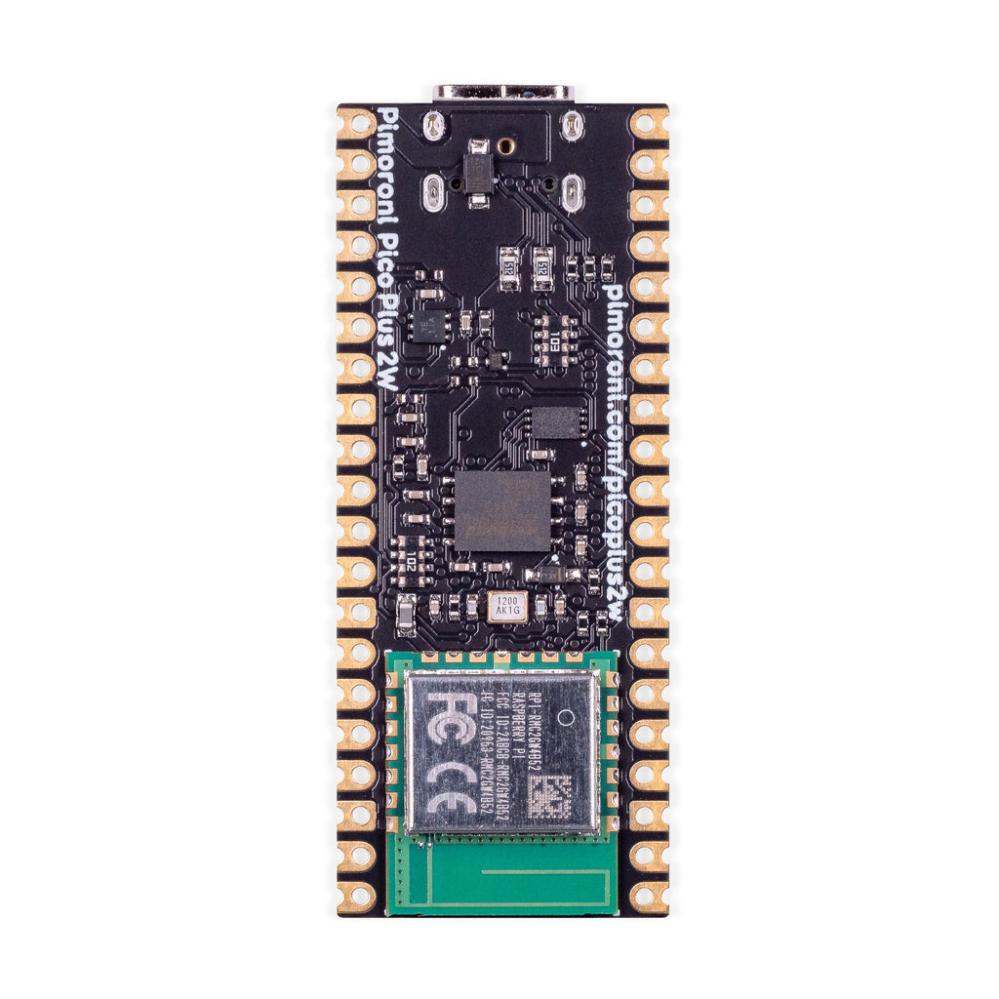

- Raspberry Pi RM2 module provides 2.4GHz wireless and Bluetooth connectivity
- USB-C connector for power, programming, and data transfer
- Qw/ST (Qwiic/STEMMA QT) connector for attaching breakouts
- 3 pin debug connector (JST-SH)
- Reset and BOOT buttons (the BOOT button can also be used as a user button)
- User LED indicator
- On-board 3V3 regulator (max regulator current output 600mA)
- Input voltage range 3V - 5.5V
- Compatible with Raspberry Pi Pico add-ons
- Measurements: approx 53mm x 21mm x 9mm (L x W x H, including connectors)
