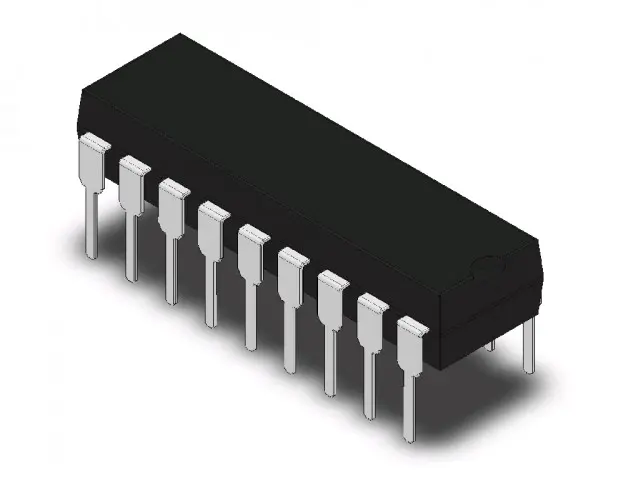

PIC16F84A-04/P DIP-18
Art nr: 40360001
Microchip - PIC16F84A-04/P
Tyvärr, produkten har utgått ur vårt sortiment
Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se
Produktbeskrivning
Produktbeskrivning
8-bit Microcontroller based on the PIC RISC architecture.
Max CPU operating frequency: 4MHz
Flash: 1k words
RAM: 68B
EEPROM: 64B
Features
* Four interrupt sources: - External RB0/INT pin
- TMR0 timer overflow - PORTB<7:4> interrupt-on-change
- Data EEPROM write complete
* 13 I/O pins with individual direction control
* High current sink/source for direct LED drive
- 25 mA sink max. per pin
- 25 mA source max. per pin
* TMR0: 8-bit timer/counter with 8-bit programmable prescaler
* In-Circuit Serial Programming (ICSP) - via two pins
* Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST)
* Watchdog Timer (WDT) with its own On-Chip RC Oscillator for reliable operation
* Code protection
* Power saving SLEEP mode
* Selectable oscillator options
Max CPU operating frequency: 4MHz
Flash: 1k words
RAM: 68B
EEPROM: 64B
Features
* Four interrupt sources: - External RB0/INT pin
- TMR0 timer overflow - PORTB<7:4> interrupt-on-change
- Data EEPROM write complete
* 13 I/O pins with individual direction control
* High current sink/source for direct LED drive
- 25 mA sink max. per pin
- 25 mA source max. per pin
* TMR0: 8-bit timer/counter with 8-bit programmable prescaler
* In-Circuit Serial Programming (ICSP) - via two pins
* Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST)
* Watchdog Timer (WDT) with its own On-Chip RC Oscillator for reliable operation
* Code protection
* Power saving SLEEP mode
* Selectable oscillator options
Dokument
Egenskaper
Attribut | Värde |
---|---|
Arkitektur
|
8-bit
|
Kapsel
|
DIP-18
|
Klocka
|
20 MHz
|
EEPROM
|
0.064
|
Familj
|
PIC16
|
Flash
|
1.75
|
GPIO
|
13
|
RAM
|
0.068
|
Matningsspänning (max)
|
5.5 V
|
Matningsspänning (min)
|
4 V
|
Timers
|
1
|
SKU:
40360001MPN:
PIC16F84A-04/P
