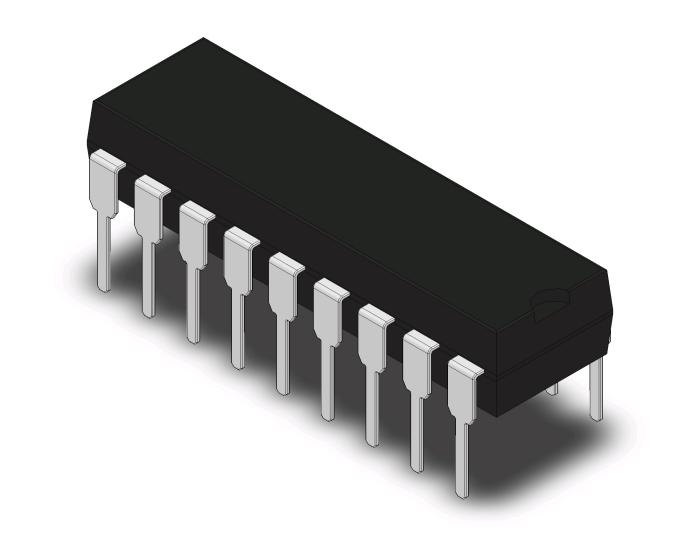

PIC16F628A-I/P DIP-18

Art nr: 40360008
Handla denna produkt PIC16F628A-I/P DIP-18
pris 49 SEK
Inklusive 25% moms
Mängdrabatt
AntalPris
1 till9
49 SEK
10 till24
44.10 SEK
25 till99
36.75 SEK
100 till
29.40 SEK
Lagervara, 21 st
Enhet: styck

12 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

8-bit Microcontroller based on the PIC RISC architecture.

Max CPU operating frequency: 20MHz
Flash: 2k words
RAM: 224B
EEPROM: 128B

Features

* Internal and external oscillator options:
- Precision internal 4 MHz oscillator factory calibrated to ±1%
- Low-power internal 48 kHz oscillator
- External Oscillator support for crystals and resonators
* Power-saving Sleep mode
* Programmable weak pull-ups on PORTB
* Multiplexed Master Clear/Input-pin
* Watchdog Timer with independent oscillator for reliable operation
* Low-voltage programming
* In-Circuit Serial Programming (via two pins)
* Programmable code protection
* Brown-out Reset
* Power-on Reset
* Power-up Timer and Oscillator Start-up Timer * Wide operating voltage range (2.0-5.5V)

* 16 I/O pins with individual direction control
* High current sink/source for direct LED drive
* Analog comparator module with:
- Two analog comparators
- Programmable on-chip voltage reference (VREF) module
- Selectable internal or external reference
- Comparator outputs are externally accessible
* Timer0: 8-bit timer/counter with 8-bit programmable prescaler
* Timer1: 16-bit timer/counter with external crystal/clock capability
* Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
* Capture, Compare, PWM module:
- 16-bit Capture/Compare
- 10-bit PWM
* Addressable Universal Synchronous/Asynchronous Receiver/Transmitter USART/SCI

Egenskaper

Egenskaper/attribut för denna produkt
Attribut Värde
Arkitektur
8-bit
Kapsel
DIP-18
Klocka
20 MHz
EEPROM
0.125
Familj
PIC16
Flash
3.5
GPIO
16
PWM
1
RAM
0.2
Matningsspänning (max)
5.5 V
Matningsspänning (min)
3 V
Timers
3
UART
1
  • SKU:

    40360008
