PHAT Stack

Art nr: 41017573
Handla denna produkt pHAT Stack
pris 259 SEK
Inklusive 25% moms
Lagervara, 5 st
Enhet: styck

10 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se




A preposterous pile of peripherals on your Pi! Mix and match 3 HATs or 5 pHATs into a platter of functionality. Use pHAT Stack for specific setups and projects, or just as a handy way to use several HATs or pHATs at once.

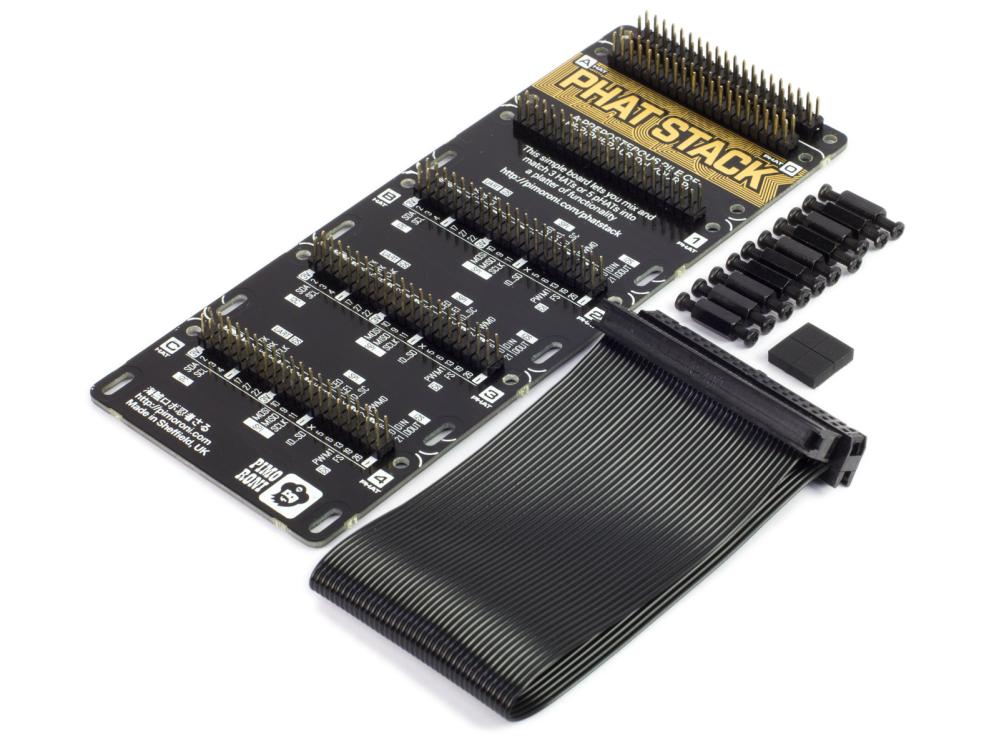

pHAT Stack is the big brother to the Mini Black HAT Hack3r. It has 6 sets of 2x20 pin headers, one for connecting to your Pi with the included ribbon cable, and the other 5 for a mix of HATs and/or pHATs. The kits include rubber feet to hold pHAT Stack steady (and prevent it from scratching your desk), and metal standoffs to mount your HATs and pHATs firmly in a more permanent fashion.

Note that you'll need to ensure that there aren't any pin clashes between the boards that you're using together. To check which pins are used by each board, check them on pinout.xyz, or try the pHAT Stack configurator!

Check out our getting started guide for more tips on using pHAT Stack.

Five sets of 2x20 pin headers (plus one to connect to your Pi)
HAT and pHAT mounting holes (M2.5) and labels
Handy pinout, including BCM numbers and descriptive labels

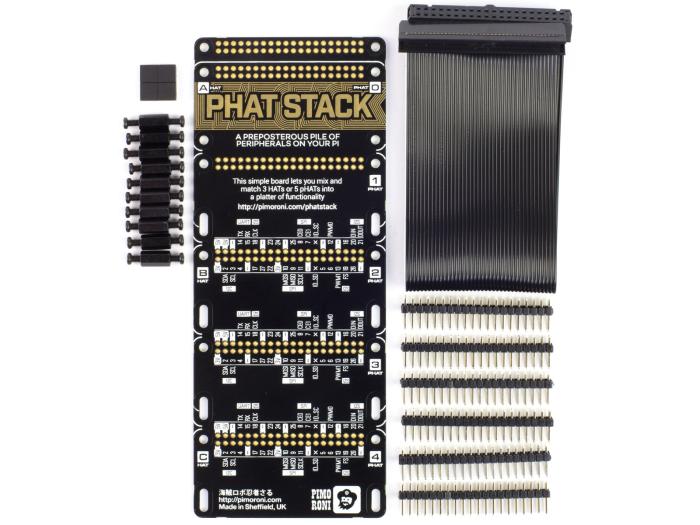

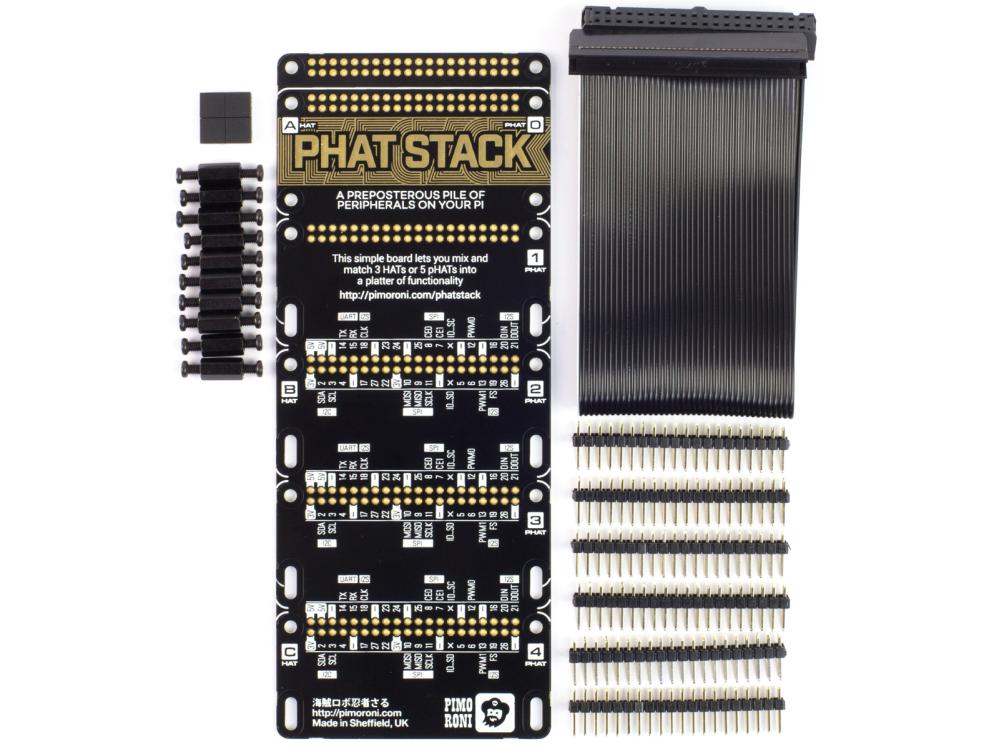

Kits include
pHAT Stack PCB
6x 2x20 male GPIO pins (pre-soldered in fully assembled kit)
5x pairs of black brass standoffs
4x rubber non-slip feet
40-way black GPIO ribbon cable

Provided there aren't any clashes between the pins used by HATs and pHATs, you can get pretty crazy with the boards that you combine together. Boards like Four Letter pHAT, Scroll pHAT HD, and Unicorn HAT HD are ideal for displaying data in dashboard-type setups, and boards like Touch pHAT, Piano HAT, and Drum HAT let you add input to your projects. There are some suggested setups below.
