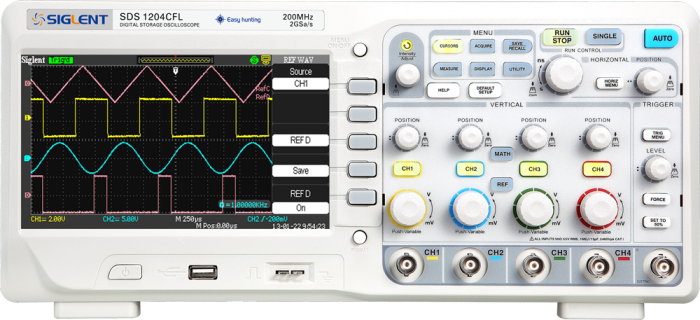

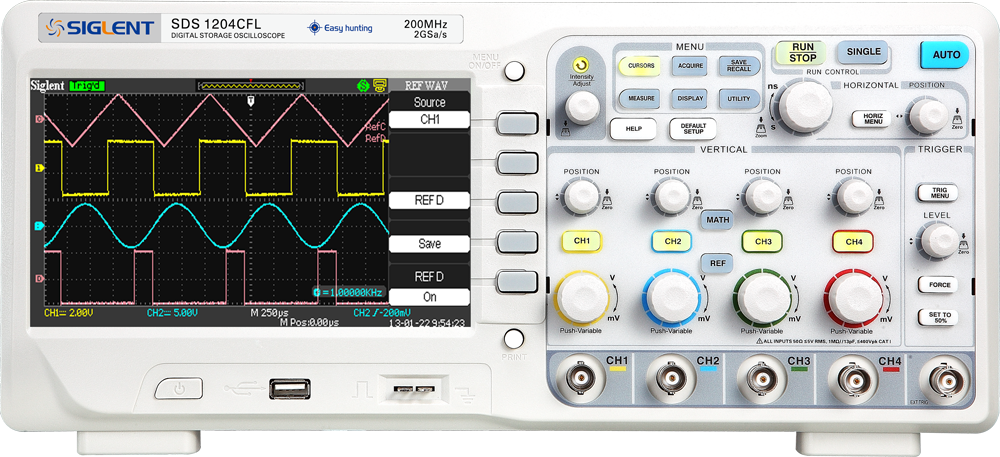

Produktbeskrivning
Bandwidth 200MHz
Channel 4 channels+1 ext trig
Real Time Sampling Half Channel:2GSa/s;Each Channel:1GSa/s
Equivalent Sampling Rate 50GSa/s
Memory Depth Single Channel:24K
Rise time <1.7ns
Input Impedance 1MO||13pF,50O
Sec/div Range 2.5ns/div-50s/div
Vertical Sensitivity 2mv-5v/div(1-2-5 sequence)
Vertical Resolution 8bit
Display Color TFT(480*234) 7" LCD
CHARACTERISTIC:
? Memory depth of SDS1000CFL is 24Kpts
? Use Colored TFT LCD, the waveform display is clearer and stable.
? Screen saver function:1 minute to 5 hours
? Dual channel-channel bandwidth: 60MHZ-300MHZ.
? The real time sampling rate is 2GSa/s.
? Trigger Modes: Edge, Pulse, Video, Slope and Alternative trigger modes.
? Unique Digital Filter function and Waveform recorder function
? Pass/Fail function
?Thirty two parameters Auto measure function.
? Cursor measure covers Manual mode, Track mode and Auto mode.
? Channel waveform and it's FFT waveform display on split screen.
? Pop-up Menu display pattern is more convenient for users using it.
? Multiple Language User Interface.
? Support Multilingual online help system.
Model/Index
The Common Specifications Of All SDS1000D Series Products
Display
8X18 divides
Waveform Capture Rate
The highest capture rate exceed 1500 times/sec
Input coupling
DC, AC, GND
Input Max voltage
400V(Vpp)
Trigger Types
Edge, Pulse, Video, Slope, Alternative
Trigger Modes
Auto, Normal, Single
Trigger Source
CH1?CH2?CH3?CH4?Ext?Ext/5?AC Line
Save/Recall
Provide four groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function
Auto Measure Types
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Cmean, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Cousor measure
Manual, Track, Auto
Sample Types
Real Time, Equivalent Time
Averages
4?16?32?64?128?256
Math: + - * Invert
FFT
Window: Hanning?Hanmming?Blackman?Rectangular
Sampling Points: 1024 points
XY Mode
Phase Error: ±3 degrees
Support the sampling rate : 10KSa/s~1GSa/s (in a 1-2-5 sequence)
Display Model
Main, Window, Window Zoom, Roll, X-Y
Menu Display
2Sec, 5Sec, 10Sec, 20Sec, Infinite
Display Language
Simplified Chinese, Traditional Chinese, English, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean, Italiana
Power Source Voltage
100-240VAC?45HZ-440HZ?50VA Max
Size and Weight
358mm x 156mm x118mm, about 4.5kg

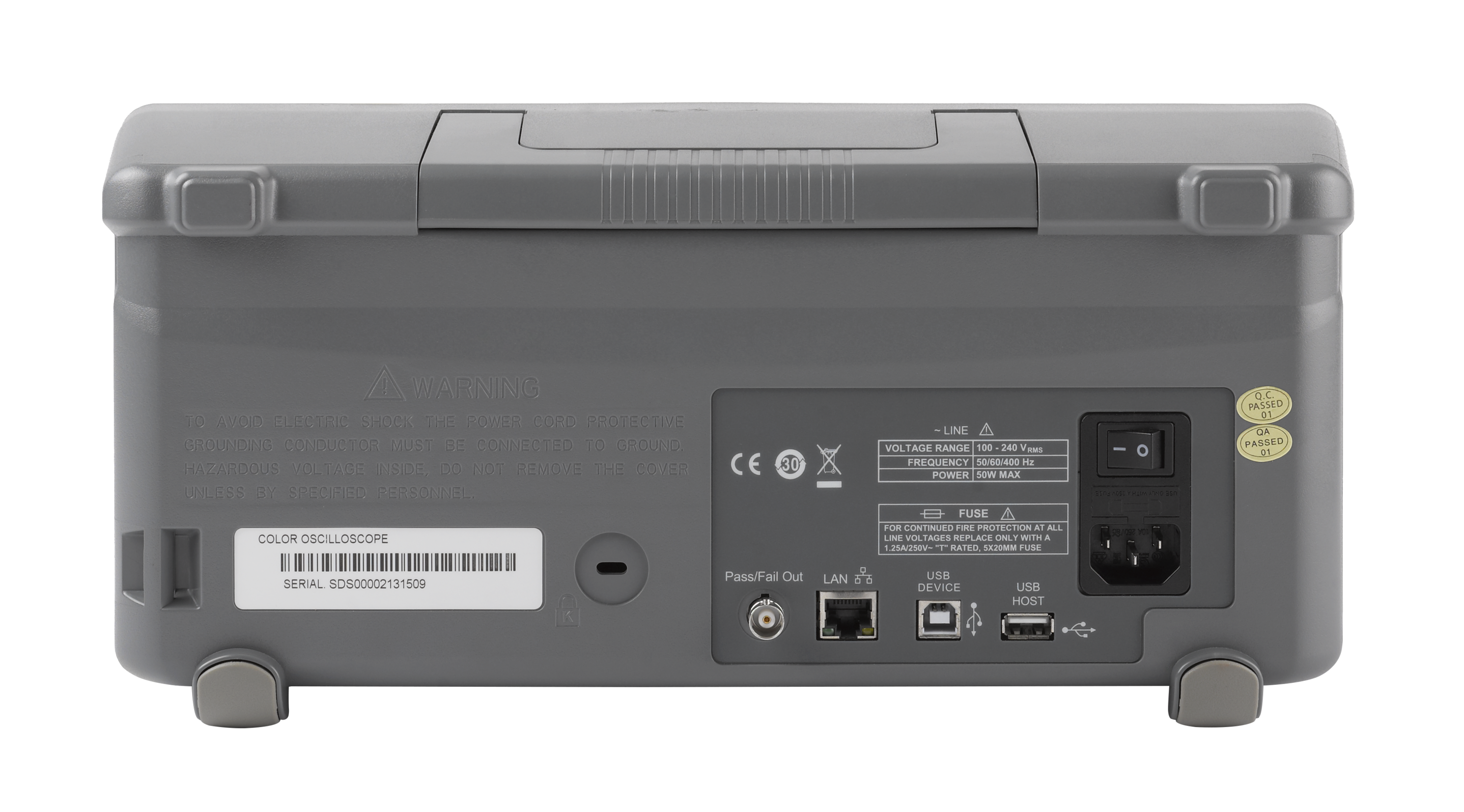

Connection
USB Host: Support USB flash drive storage
USB Device: Support PictBridge compatible printers and PC Remote control
RJ-45(LAN): Support computer connecting
Pass/Fail Interface Module
Included accesories:
4x 1:1/10:1Proble, EasyScope3.0 Computer Software System, Power Cord, USB cable,User Manual, EasyDsoLib software package
