Produktbeskrivning

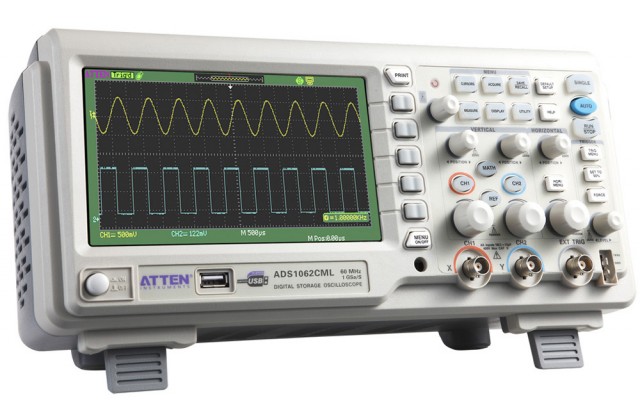

Ett oscilloskop i den nya CML-serien med widescreen LCD färgskärm.
60 MHz
1 G samples per sekund
* 1GSa/s Sampling Rate
* 2 Channels
* 7" Widescreen LCD Color Display (ADS1022C: 5.7 in)
* USB Host/Device: Support USB Printer and USB Flash Drive
* PictBridge Function
* Easyscope Software
* 12 Languages
The highest Single real-time sampling rate can up to 1Gsa/s; Equivalent sampling rate is up to 50GSa/s.
Memory Depth: CML Series: 2Mpts
* Max recording length:6Mpts
* The longest single recording time: 33.3h
* Trigger types: Edge, Pulse Width, Video, Slope, Alternative
* Unique Digital Filter function and Waveform recorder function
* Support Pass/Fail function.
* Thirty two parameters Auto measure function.
* Save/recall types: Setups, Waveforms, CSV file, Picture.
* Support Multilingual On-line help system
* Waveform Intensity and Grid Brightness can be adjusted.
* User Interface in 12 Language
* Standard Configuration Port:
USB Host: Support USB flash driver save/recall function and update firmware;
USB Device: Support PictBridge compatible printer and support PC remote control; RS232, Pass/ Fail output
Abundant Trigger Function
ADS1000 series products have rich trigger
modes: Edge, Pulse, Video, Slope and
Alternative mode, which satisfy with users
more extensive needs. Alternative trigger
mode is usually used to observing two noncorrelated
signals at the same time and users
can select different trigger mode for two
channels, which is a kind reproduction that
analog oscilloscope function in the digital
oscilloscope.
FFT Waveform Split Display Function
FFT waveform and its Channel waveform can
display on split screen at the same time. In
split display mode, the screen is divided into
two parts and each part is divided eight divides
in vertical direction. That is similar to under the
entire screen pattern simultaneously to
observe two waveforms. This way will make
users observe waveforms to be clearer and
convenient.
Pop-up Menu Display Mode
The menu may hide as necessary make
waveforms display on 18 divides full screen.
Comparing with other same level digital
oscilloscopes, this kind of pattern is more
flexible, the user operation is more convenient
and users can observe waveforms clearly.
Display
ADS1000 series products use the 7" Wide
Screen Color TFT LCD. The screen display
parameter value and the waveform are clearer,
stably and nature; That is also more
advantageous to alleviate tiredness of users
using the instrument extended periods at a
time.
Digital Filter Function
ADS1000 series provide a digital filter function,
and users can use it setting upper limit and lower
limit of frequency to reduce signal noise and filter
error signal. So they can observe their interested
signals distinctly, which will advance users' work
efficiency consumedly.
Waveform Recorder Function
Using this function, Users can continue record
data of their need signals as the form of frame.
Waveform recorder can record input waveform
from CH1 and CH2, with maximum record length
of 1500 frames. This record behavior can also be
activated by the pass/fail test output, which
makes this function especially useful to capture
abnormal signals in long term without keeping an
eye watching it.
Pass/Fail Function
Users may use the Pass/Fail function which the
ADS1000 series provides to carry on the product
test. Through a series of setups, the oscilloscope
can output the test result automatically which
enhanced the product production efficiency
greatly.
Auto Measure Function
ADS1000 series can auto measure thirty two
parameters, which is most in the same level
digital oscilloscopes. Auto measure function can
eliminate user error consumedly, and users will
measure parameters what they need faster and
more accurately using it. ADS1000 series also
have all measurement function that displays all
the waveform parameters on the screen
according to measure kinds, and users can ready
measure parameters value expediently making
ADS1000 series the most perfect measure tools.
Multi-country Language User Interface
Display function
ADS1000 series product has 12 languages
user interface display function: Simplified
Chinese, Traditional Chinese, English,
Arabic, French, German, Russian, Spanish,
Portuguese, Japanese and Korean, which
has further developed the ADS1000 series
product for the international market
Powerful EasyScope3.0 Software
EasyScope3.0 software is the powerful
system software suitable for ADS1000
series products. This software can be
compatible RS-232 and USB Device to
realize communication between the
computer and the oscilloscope, then
realizes long-distance control.
Simultaneously this software can automatic
real-time refresh waveform data, provide
waveforms measure data sampling data,
screen images read storage and printing
functions. In addition
EasyScope3.0 also has setups upload and
download function. Most quickly basing on
millisecond level interactive between PC and
ADS1000 series make users to be easier to
analyze, research waveforms and data.
Cursor Survey Function
ADS1000 series cursor survey function has
three kinds of modes: Auto manual mode,
Track mode, Auto mode. The user may
according to own need to choose the survey
pattern nimbly, thus with ease read measure
results from the top right of the screen or
experience completely automatic intelligent
design pattern.
60 MHz
1 G samples per sekund
* 1GSa/s Sampling Rate
* 2 Channels
* 7" Widescreen LCD Color Display (ADS1022C: 5.7 in)
* USB Host/Device: Support USB Printer and USB Flash Drive
* PictBridge Function
* Easyscope Software
* 12 Languages
The highest Single real-time sampling rate can up to 1Gsa/s; Equivalent sampling rate is up to 50GSa/s.
Memory Depth: CML Series: 2Mpts
* Max recording length:6Mpts
* The longest single recording time: 33.3h
* Trigger types: Edge, Pulse Width, Video, Slope, Alternative
* Unique Digital Filter function and Waveform recorder function
* Support Pass/Fail function.
* Thirty two parameters Auto measure function.
* Save/recall types: Setups, Waveforms, CSV file, Picture.
* Support Multilingual On-line help system
* Waveform Intensity and Grid Brightness can be adjusted.
* User Interface in 12 Language
* Standard Configuration Port:
USB Host: Support USB flash driver save/recall function and update firmware;
USB Device: Support PictBridge compatible printer and support PC remote control; RS232, Pass/ Fail output
Abundant Trigger Function
ADS1000 series products have rich trigger
modes: Edge, Pulse, Video, Slope and
Alternative mode, which satisfy with users
more extensive needs. Alternative trigger
mode is usually used to observing two noncorrelated
signals at the same time and users
can select different trigger mode for two
channels, which is a kind reproduction that
analog oscilloscope function in the digital
oscilloscope.
FFT Waveform Split Display Function
FFT waveform and its Channel waveform can
display on split screen at the same time. In
split display mode, the screen is divided into
two parts and each part is divided eight divides
in vertical direction. That is similar to under the
entire screen pattern simultaneously to
observe two waveforms. This way will make
users observe waveforms to be clearer and
convenient.
Pop-up Menu Display Mode
The menu may hide as necessary make
waveforms display on 18 divides full screen.
Comparing with other same level digital
oscilloscopes, this kind of pattern is more
flexible, the user operation is more convenient
and users can observe waveforms clearly.
Display
ADS1000 series products use the 7" Wide
Screen Color TFT LCD. The screen display
parameter value and the waveform are clearer,
stably and nature; That is also more
advantageous to alleviate tiredness of users
using the instrument extended periods at a
time.
Digital Filter Function
ADS1000 series provide a digital filter function,
and users can use it setting upper limit and lower
limit of frequency to reduce signal noise and filter
error signal. So they can observe their interested
signals distinctly, which will advance users' work
efficiency consumedly.
Waveform Recorder Function
Using this function, Users can continue record
data of their need signals as the form of frame.
Waveform recorder can record input waveform
from CH1 and CH2, with maximum record length
of 1500 frames. This record behavior can also be
activated by the pass/fail test output, which
makes this function especially useful to capture
abnormal signals in long term without keeping an
eye watching it.
Pass/Fail Function
Users may use the Pass/Fail function which the
ADS1000 series provides to carry on the product
test. Through a series of setups, the oscilloscope
can output the test result automatically which
enhanced the product production efficiency
greatly.
Auto Measure Function
ADS1000 series can auto measure thirty two
parameters, which is most in the same level
digital oscilloscopes. Auto measure function can
eliminate user error consumedly, and users will
measure parameters what they need faster and
more accurately using it. ADS1000 series also
have all measurement function that displays all
the waveform parameters on the screen
according to measure kinds, and users can ready
measure parameters value expediently making
ADS1000 series the most perfect measure tools.
Multi-country Language User Interface
Display function
ADS1000 series product has 12 languages
user interface display function: Simplified
Chinese, Traditional Chinese, English,
Arabic, French, German, Russian, Spanish,
Portuguese, Japanese and Korean, which
has further developed the ADS1000 series
product for the international market
Powerful EasyScope3.0 Software
EasyScope3.0 software is the powerful
system software suitable for ADS1000
series products. This software can be
compatible RS-232 and USB Device to
realize communication between the
computer and the oscilloscope, then
realizes long-distance control.
Simultaneously this software can automatic
real-time refresh waveform data, provide
waveforms measure data sampling data,
screen images read storage and printing
functions. In addition
EasyScope3.0 also has setups upload and
download function. Most quickly basing on
millisecond level interactive between PC and
ADS1000 series make users to be easier to
analyze, research waveforms and data.
Cursor Survey Function
ADS1000 series cursor survey function has
three kinds of modes: Auto manual mode,
Track mode, Auto mode. The user may
according to own need to choose the survey
pattern nimbly, thus with ease read measure
results from the top right of the screen or
experience completely automatic intelligent
design pattern.
