Produktbeskrivning

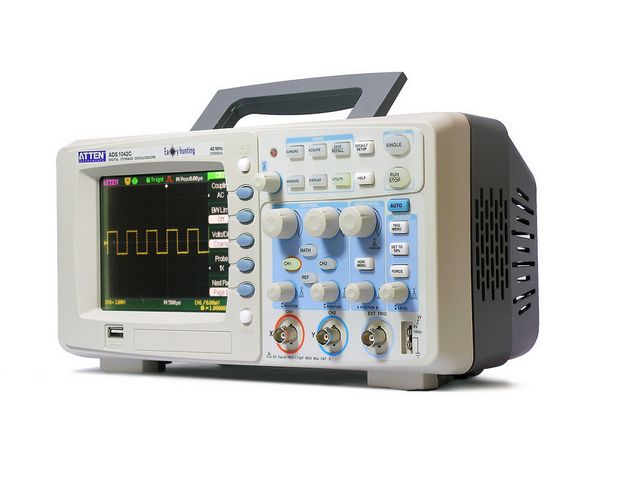

ADS1000 series digital storage oscilloscopes combine mature and steady hardware configuration, high-powered digital signal processing technology and functionality concepts with a mainstream display interface and the operation panel. In our design we did not attempt to match the specifications and usability of other comparable products currently on the market, but rather to exceed them in every respect, often outperforming same level products internationally.
The ADS1000 series, with its intuitive logical and convenient user interface and attractive price is very affordable.
FEATURES
Dual channel - channel bandwidth: 25MHz - 100MHz
The volume exquisite and it is convenient for carrying
Use Colored TFT LCD, the waveform display is clearer and stable
The real time sampling rate is 500MSa/
Memory depth of ADS1000 is 4K and that of ADS1000M is 2M
Trigger Modes: Edge, Pulse, Video, Slope, Alternative and Delay trigger modes
Front and Back USB Host/Device, GPIB
Unique Digital Filter function and Waveform recorder function
Waveform recorder function
Pass/Fail function
Thirty two parameters Auto measure function Cursor measure covers Manual mode, Track mode and Auto mode
Channel waveform and it's FFT waveform display on split screen
Pop-up Menu display pattern is more convenient for users using it
Multiple Language User Interface
Support multilingual online help
Bandwidth: 25 MHz
Sampling rate: 500MSa/s
Equivalent sampling rate: 50GSa/s
Memory depth: single ch 2M, dual channel 1M/ch
Rise time: <14ns
Input impedance: 1Mohm/13 pF
Sec/div range: 25ns/div - 50s/div, roll 100ms-50s/div
Display: Color TFT 320x234px 5.7" LCD
TECHNICAL SPECIFICATIONS
The Common Specifications Of All ADS1000 Series Products
Display
12 divides full screen display
Channels
2
Vertical Sensitivity
2mv-5v/div(1-2-5 Sequence)
Vertical Resolution
8 bit
Input coupling
DC, AC, GND
Input Max voltage
400V(Vpp)
Trigger Types
Edge, Pulse, Video, Slope, Alternative, Delay
Trigger Modes
Auto, Normal, Single
Trigger Source
CH1, CH2, Ext, Ext/5, AC Line
Save/Recall
Provide two groups reference waveforms, twenty groups capture waveforms and twenty groups setups internal save/recall function and USB flash drive Save/Recall function
Auto Measure Types
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Vrms, Crms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Freq, Period, Rise time, Fall Time, +Width, -Width, +Duty, - Duty, BWid, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Cursor measure
Manual, Track, Auto
Sample Types
Real Time, Equivalent Time
Averages
4, 16, 32, 64, 128, 256
Math
+, -, *, /, Invert
FFT
Window: Hanning, Hamming, Blackman?Rectangular
Sampling Points: 1024 points
XY Mode
Phase Error: ±3 degrees
Support the sampling rate : 5KSa/s~200MSa/s (in a 1-2-5 sequence)
Persist
Off, 1sec, 2sec, 5sec, Infinite
Display Model
Main, Window, Window Zoom, Roll, X-Y
Menu Display
2Sec, 5Sec, 10Sec, 20Sec, Infinite
Skin
Classical, Modern, Tradition, Succinct
Display Language
English, Simplified Chinese, Traditional Chinese, Arabic, French, German, Russian, Spanish, Portuguese, Japanese, Korean
Power Source Voltage
100-240VAC?47HZ-440HZ?50VA Max
Size and Weight
305mm x 154mm x133mm, about2.3kg
USB Host
Support USB flash drive storage
USB Device
Support PictBridge compatible printers and PC Remote control
RS-232
Included accessories:
(1:1, 10:1) Probe x 2, EasyScope Computer Software System, Power Cord, USB Cable, User Manual
OPTIONALS
GPIB Communication Module, Serial Interface Communication Module, Pass/Fail Interface Module
