Produktbeskrivning
Video Amplifier

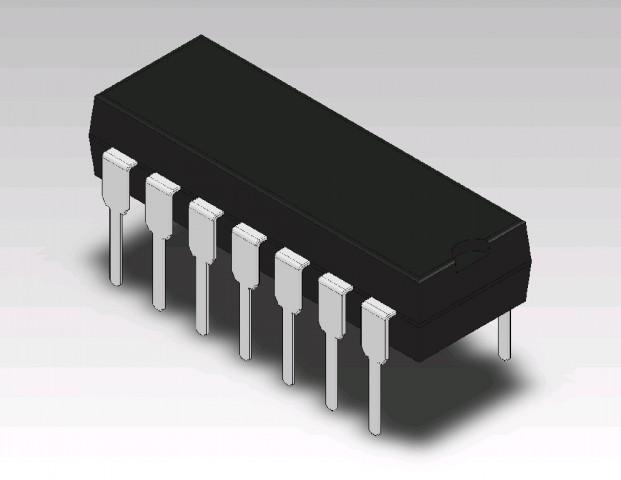

The NE592 is a monolithic, two-stage, differential output, wideband video amplifier. It offers fixed gains of 100 and 400 without external components and adjustable gains from 400 to 0 with one external resistor. The input stage has been designed so that with the addition of a few external reactive elements between the gain select terminals, the circuit can function as a high-pass, low-pass, or band-pass filter. This feature makes the circuit ideal for use as a video or pulse amplifier in communications, magnetic memories, display, video recorder systems, and floppy disk head amplifiers.
Features
* 120 MHz Unity Gain Bandwidth
* Adjustable Gains from 0 to 400
* Adjustable Pass Band
* No Frequency Compensation Required
* Wave Shaping with Minimal External Components
Applications
* Floppy Disk Head Amplifier
* Video Amplifier
* Pulse Amplifier in Communications
* Magnetic Memory
* Video Recorder Systems
The NE592 is a monolithic, two-stage, differential output, wideband video amplifier. It offers fixed gains of 100 and 400 without external components and adjustable gains from 400 to 0 with one external resistor. The input stage has been designed so that with the addition of a few external reactive elements between the gain select terminals, the circuit can function as a high-pass, low-pass, or band-pass filter. This feature makes the circuit ideal for use as a video or pulse amplifier in communications, magnetic memories, display, video recorder systems, and floppy disk head amplifiers.
