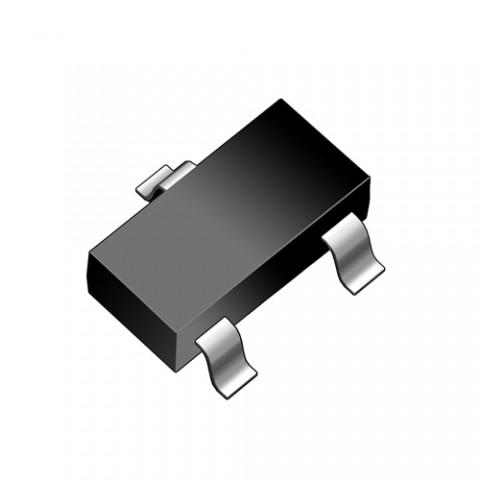

MAX809STRG SOT-23-3 Övervakningskrets 2.93V uP reset

Art nr: 41009809
Handla denna produkt MAX809STRG SOT-23-3 Övervakningskrets 2.93V uP reset
pris 5.10 SEK
Inklusive 25% moms
Mängdrabatt
AntalPris
1 till9
5.10 SEK
10 till24
4.60 SEK
25 till
3.80 SEK
Lagervara, 5 st
Enhet: styck

12 000 produkter

Snabb leverans

Frakt från 29 kr

Behöver du hjälp? Vi finns här!
Ring 040-298760 (måndag till fredag 10-16), eller mejla på info@electrokit.se

Produktbeskrivning

ÖppnaStäng

Produktbeskrivning

The MAX809 are cost-effective system supervisor
circuits designed to monitor VCC in digital systems and provide a reset
signal to the host processor when necessary. No external components
are required.
The reset output is driven active within 10 sec of VCC falling
through the reset voltage threshold. Reset is maintained active for a
timeout period which is trimmed by the factory after VCC rises above

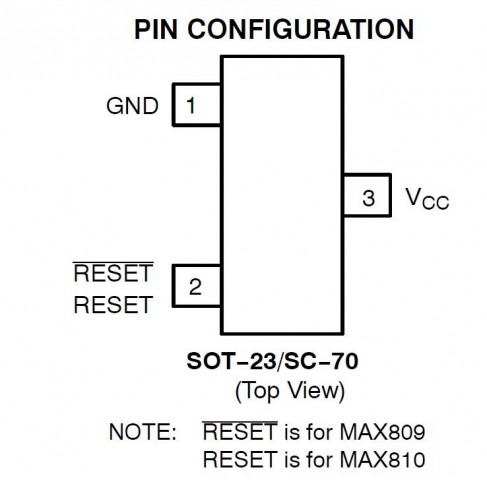

the reset threshold. The MAX810 has an active-high RESET output
while the MAX809 has an active-low RESET output. Both devices
are available in SOT-23 and SC-70 packages.
The MAX809/810 are optimized to reject fast transient glitches on
the VCC line. Low supply current of 0.5 A (VCC = 3.2 V) makes these
devices suitable for battery powered applications.
Features
* Precision VCC Monitor for 1.5 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V
Supplies
* Precision Monitoring Voltages from 1.2 V to 4.9 V Available
in 100 mV Steps
* Four Guaranteed Minimum Power-On Reset Pulse Width Available
(1 ms, 20 ms, 100 ms, and 140 ms)
* RESET Output Guaranteed to VCC = 1.0 V.
* Low Supply Current
* Compatible with Hot Plug Applications
* VCC Transient Immunity
* No External Components
* Wide Operating Temperature: -40°C to 105°C
* Pb-Free Packages are Available
Typical Applications
* Computers
* Embedded Systems
* Battery Powered Equipment
* Critical Microprocessor Power Supply Monitoring
