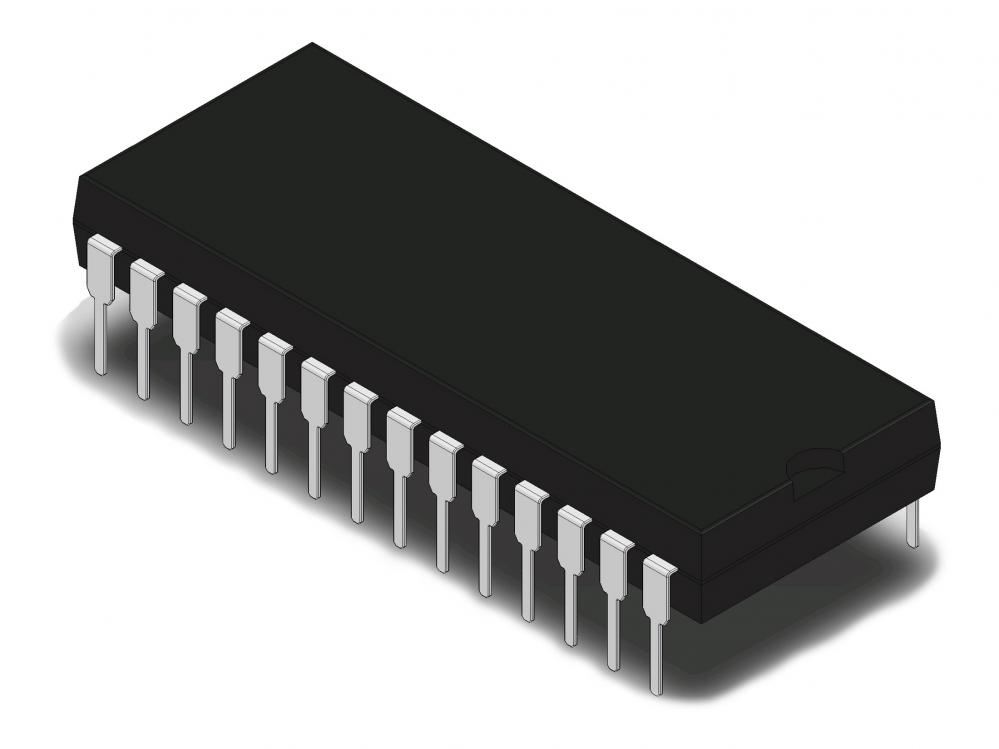

MAX118EPI+ DIP-28W ADC 8-bit 1Ms/s

The MAX118 is a microprocessor-compatible, 8-bit, 4-channel and 8-channel analog-to-digital converter (ADC).


Features

* Single +5V Supply Operation * 8 Analog Input Channels
* Low Power: 40mW (operating mode), 5uW (power-down mode)
* Total Unadjusted Error =1LSB
* Fast Conversion Time: 660ns per Channel
* No External Clock Required
* Internal Track/Hold
* 1MHz Full-Power Bandwidth
* Internally Connected 8th Channel Monitors Reference Voltage


Applications

* High-Speed DSP
* Remote Data Acquisition
* Portable Equipment
* Communications Systems
